ASP STERRAD 100NX

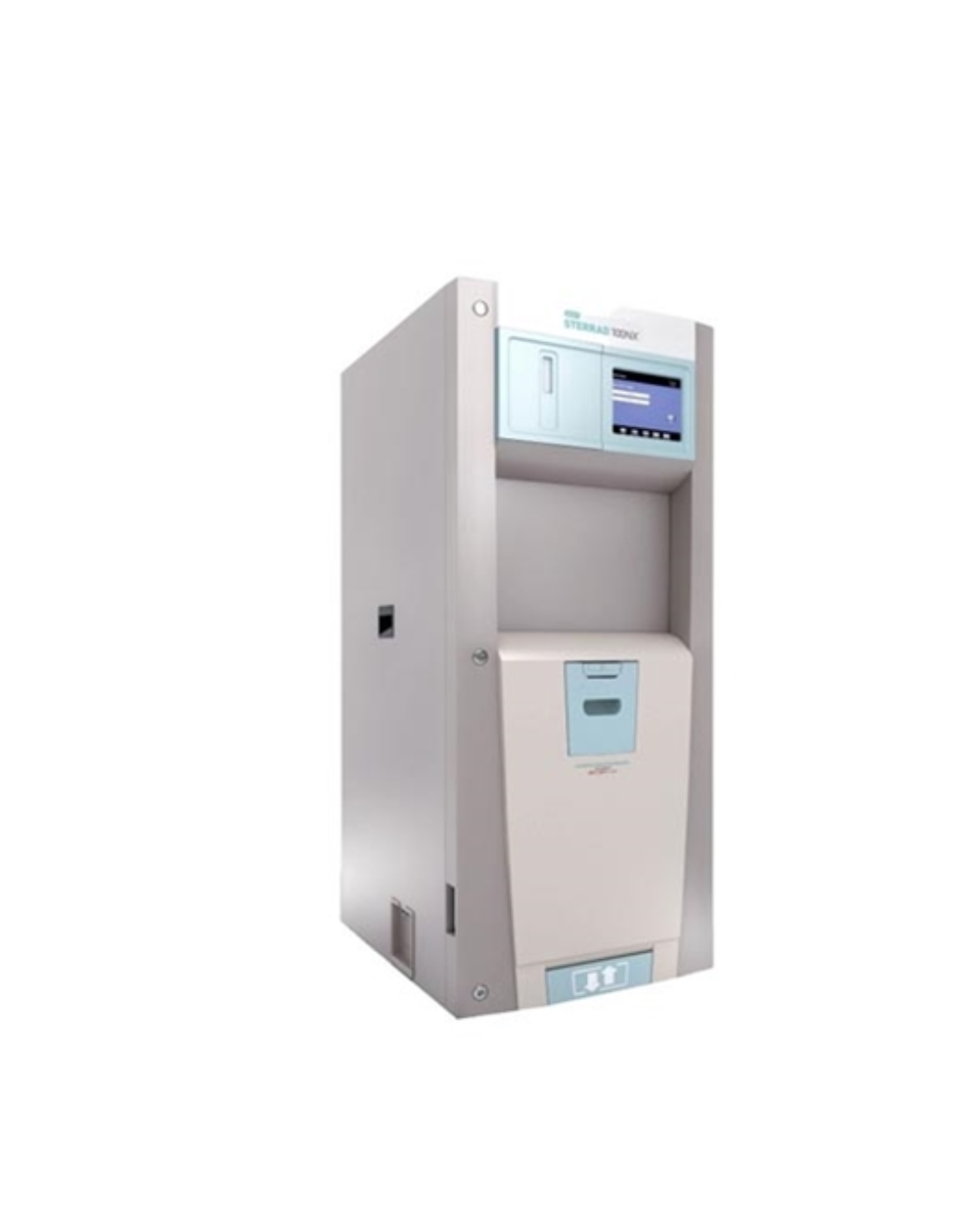

ASP STERRAD 100NX Sterilization System

The ASP STERRAD 100NX System is a sophisticated sterilization system designed to meet the high demands of healthcare facilities needing fast, versatile, and large-capacity sterilization solutions. This system enhances the features of its predecessor, the STERRAD 100S, by offering additional height, an enlarged rectangular chamber, and advanced technology options. With two primary cycle options—Standard and Flex—plus an optional EXPRESS Cycle specifically designed for sensitive instruments like da Vinci® 3-D endoscopes, this system ensures effective sterilization of a wide range of medical instruments.

Key Points

• Advanced Cycle Options:

  • 47-Minute Standard Cycle: Suitable for most surgical instruments.
  • 42-Minute Flex Cycle: Optimized for single-channel flexible endoscopes.
  • 24-Minute EXPRESS Cycle (optional): Ideal for rapid processing of da Vinci® 3-D endoscopes, rigid telescopes, and rechargeable batteries.
  • 60-Minute DUO Cycle (optional): Extended cycle for comprehensive sterilization needs.

• Enhanced User Interface:
  Features an easy-to-read touch screen for interactive user control and self-diagnostics to ensure optimal performance.

• Hydrogen Peroxide Monitoring:
  Equipped with a hydrogen peroxide monitor to precisely measure the concentration of H2O2, ensuring effective sterilization.

• Large Chamber Capacity:
  The chamber volume of 152 liters accommodates a variety of instruments, including multiple flexible endoscopes and surgical tools.

• Network Connectivity:
  Allows for seamless integration into hospital networks for remote monitoring and system updates.

• Ergonomic Design:
  Includes an ergonomic footpad and a safe cassette collection box for easy loading and unloading of sterilization cassettes.

Specifications

• Dimensions:

  • Height: 1791 mm
  • Width: 775 mm
  • Depth: 1020 mm

• Weight:

  • 425 kg (single-door)
  • 457 kg (double-door)

• Sterilization Chamber:

  • Volume: 152 L
  • Dimensions: 410 mm x 510 mm x 755 mm
  • Two-Tiered Shelf Dimensions: 425 mm x 700 mm

• Cycle Temperature:

  • Less than 131°F / 55°C

• Installation & Electrical Requirements:

  • Connections: 380 – 415V, 50/60Hz power
  • Requires a five-wire grounding outlet attached to a dedicated 330AMP, 3-phase, [200-240 VAC, 380-415V]±10%, 50/60Hz±5% circuit with separate neutral and ground conductors.

• Operational Environment:

  • Temperature: 18°C to 35°C
  • Humidity: 10% to 85% up to 30°C, linearly decreasing from 85% at 30°C to 70% at 35°C (non-condensing)

• Additional Options:

  • Independent Monitoring System (IMS): Available for remote, independent monitoring of all processes.
  • Barcode Reader: Optional for enhanced tracking and management of sterilization processes.
