ASP STERRAD 100S

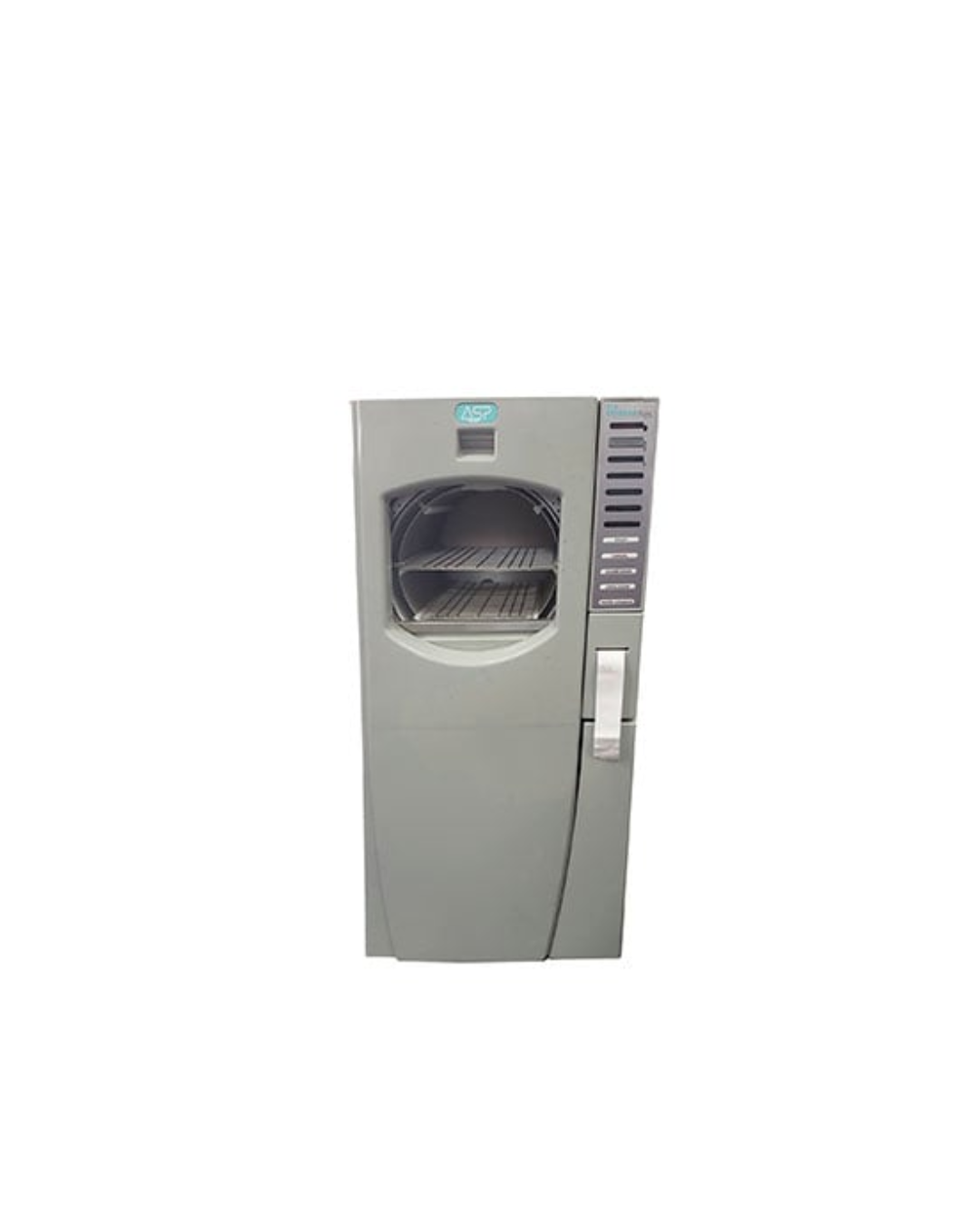

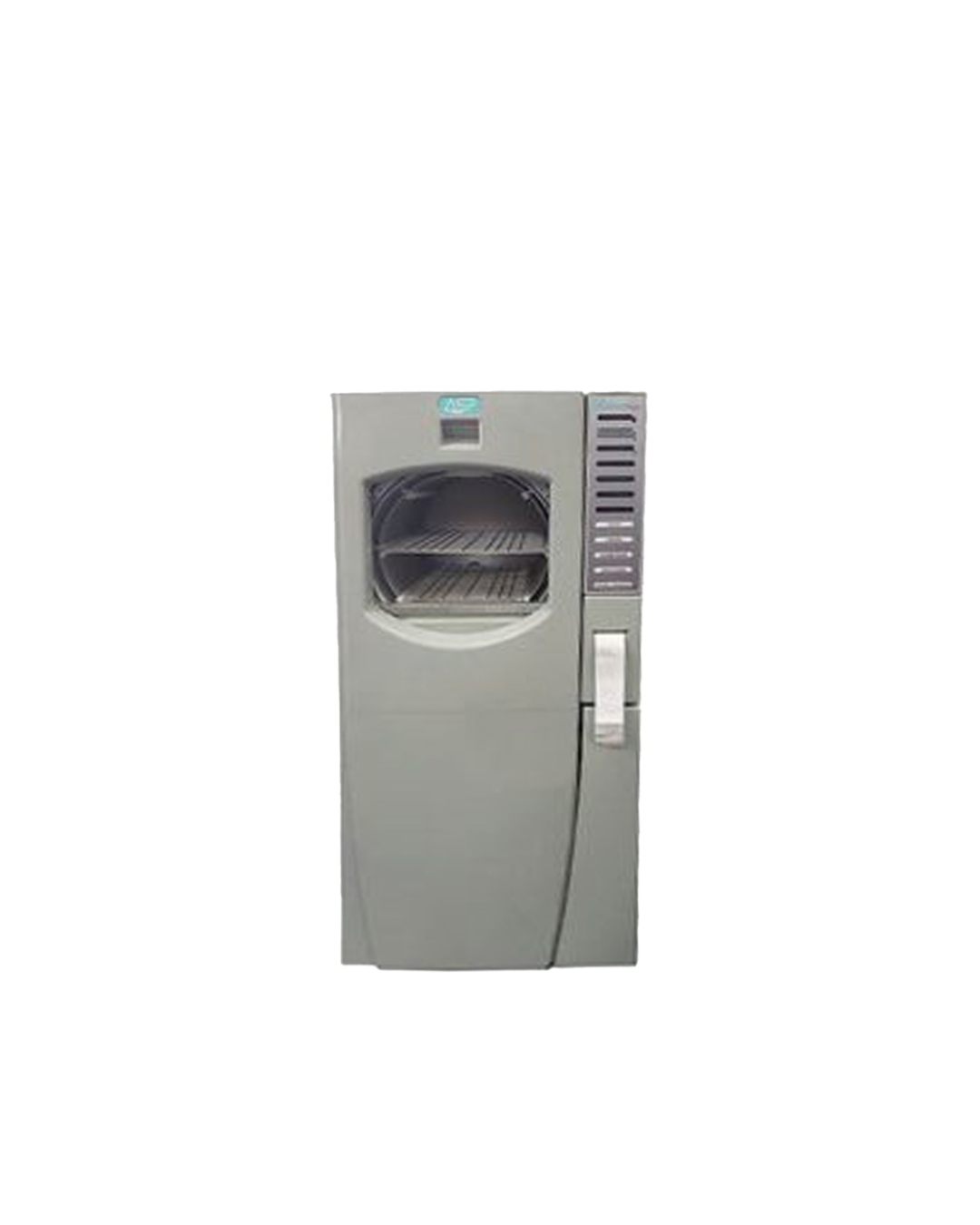

ASP STERRAD 100S Sterilization System

The ASP STERRAD 100S System is a versatile, freestanding sterilization system designed for use in sterile processing departments and operating rooms across healthcare facilities. Utilizing the proprietary STERRAD Technology, this system delivers high-level sterilization using a hydrogen peroxide gas plasma process, achieving a 10^-6 Sterility Assurance Level within a 55-minute cycle. Its design allows for mobility and flexibility within medical environments, with no venting or gas tank requirements and only needing an electrical power connection. The STERRAD 100S is well-suited for sterilizing a wide array of medical instruments and equipment, though it is not suitable for materials like liquids, paper, linen, and cotton.

Key Points

• Proprietary STERRAD Technology:
  Employs hydrogen peroxide gas plasma for effective sterilization, ensuring a high level of sterility assurance.

• Mobility and Design:
  Features wheels for easy transportation and adjustable feet for leveling, making it adaptable to various clinical settings.

• Ease of Use:
  Equipped with an easy-to-load sterilization cassette and single-button operation, simplifying the sterilization process.

• Freestanding and Self-contained:
  Requires no external venting or gas connections, with only an electrical power cord needed for operation.

• Integrated Convenience Features:
  Includes a built-in printer for record-keeping and an LCD display for operational monitoring and control.

Specifications

• Dimensions and Mobility:

  • Space Requirements: 78 in x 34 in x 42 in (HxWxD) or 166.4 cm x 86.4 cm x 106.7 cm
  • Weight: 349.3 kg (770 lbs)
  • Movable with no venting requirements

• Cycles:

  • Total Cycle Time: 55 minutes
  • Cycle Temperature: Less than 131°F / 55°C

• Environmental Conditions:

  • Temperature Range: 50°F to 104°F / +10°C to +40°C
  • Humidity: 30-75% relative humidity (non-condensing)

• Input / Output:

  • Display: LCD display
  • Control Interface: Dedicated controls, touch panel
  • Hard Copy: Printer for documentation
  • Alarms: Audible and visual alerts for operational safety

• Power Usage and Electrical Requirements:

  • Connections: 380-415 VAC, 50 Hz, 10 A, 3-phase circuit with separate neutral and ground conductors. CBA phase rotation

• Sterilization Chamber:

  • Temperature Range: 10°C to 40°C
  • Humidity: 30-75% relative humidity (non-condensing)
