ASP STERRAD NX

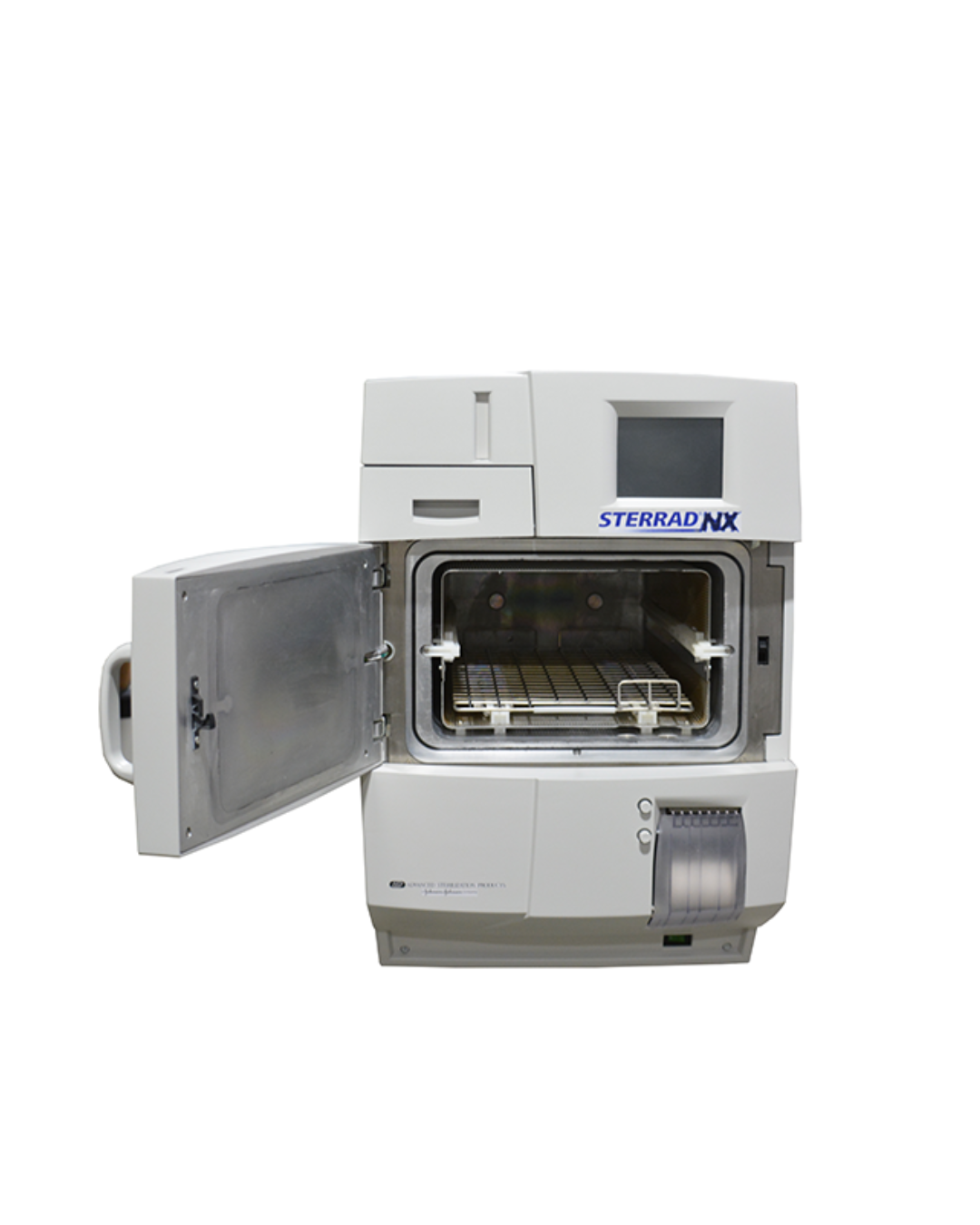

ASP STERRAD NX Sterilization System

The ASP STERRAD NX is a highly efficient, compact sterilization system designed for rapid processing in healthcare environments. Utilizing a hydrogen peroxide gas plasma system, the STERRAD NX offers a quick 28-minute Standard cycle that efficiently sterilizes a wide range of medical instruments and equipment, including power drills, batteries, cameras, both rigid and flexible scopes, and general surgical equipment. This system is characterized by its interactive touchscreen interface, which includes diagnostic programming and innovative software that enhances security, networking, and diagnostic capabilities. The dry, gentle sterilization process leaves no toxic residues, making it a safe choice for medical device sterilization across various departments.

Key Points

• Efficient Sterilization Cycle:
  Features a rapid 28-minute Standard cycle that allows for fast turnaround times, crucial for departments requiring quick instrument reuse.

• Advanced Technology:
  Utilizes a hydrogen peroxide gas plasma system, ensuring effective sterilization without damaging sensitive medical equipment.

• Interactive Touchscreen Interface:
  Provides easy access to diagnostics and system programming, enhancing usability and control.

• Compact and Mobile:

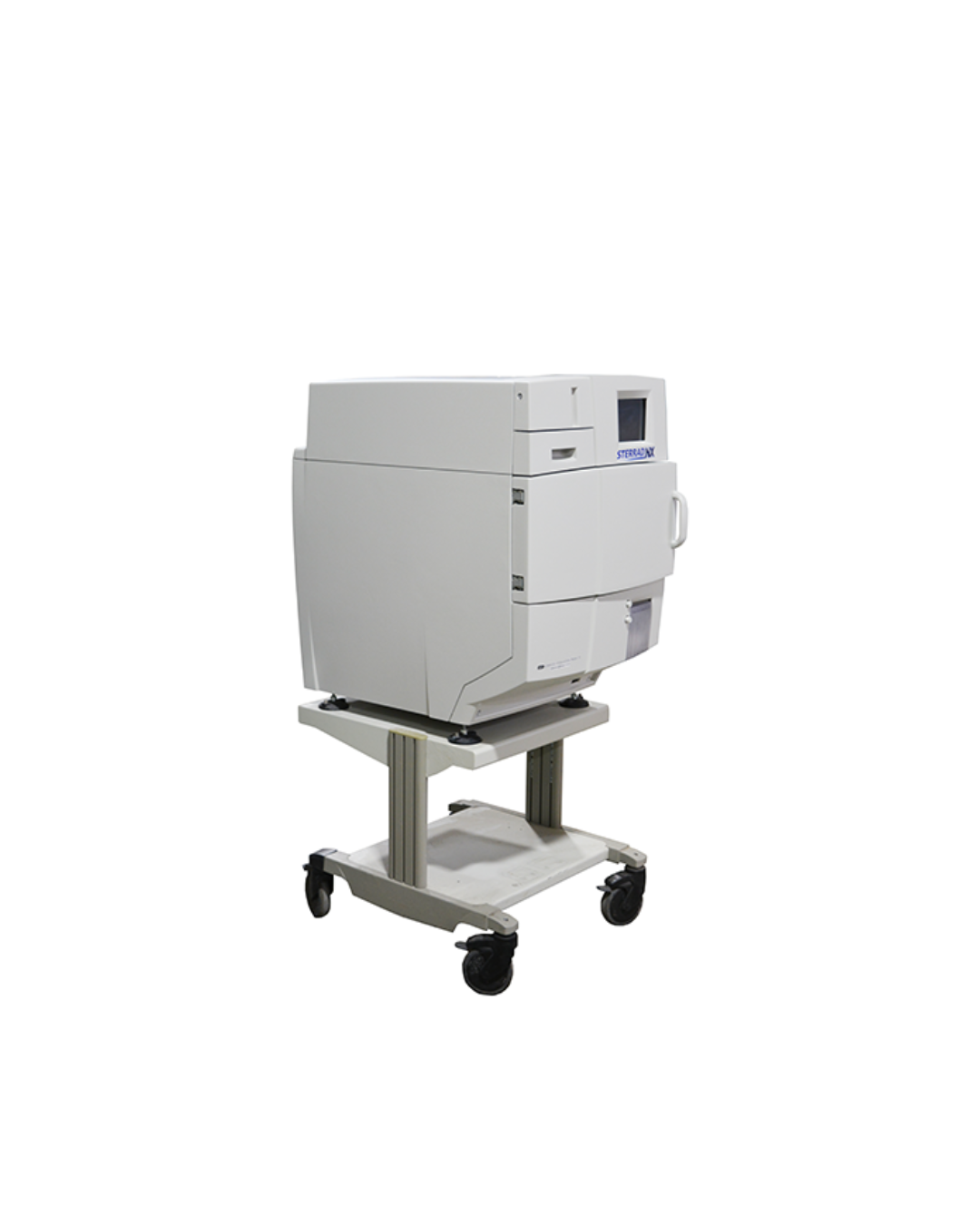

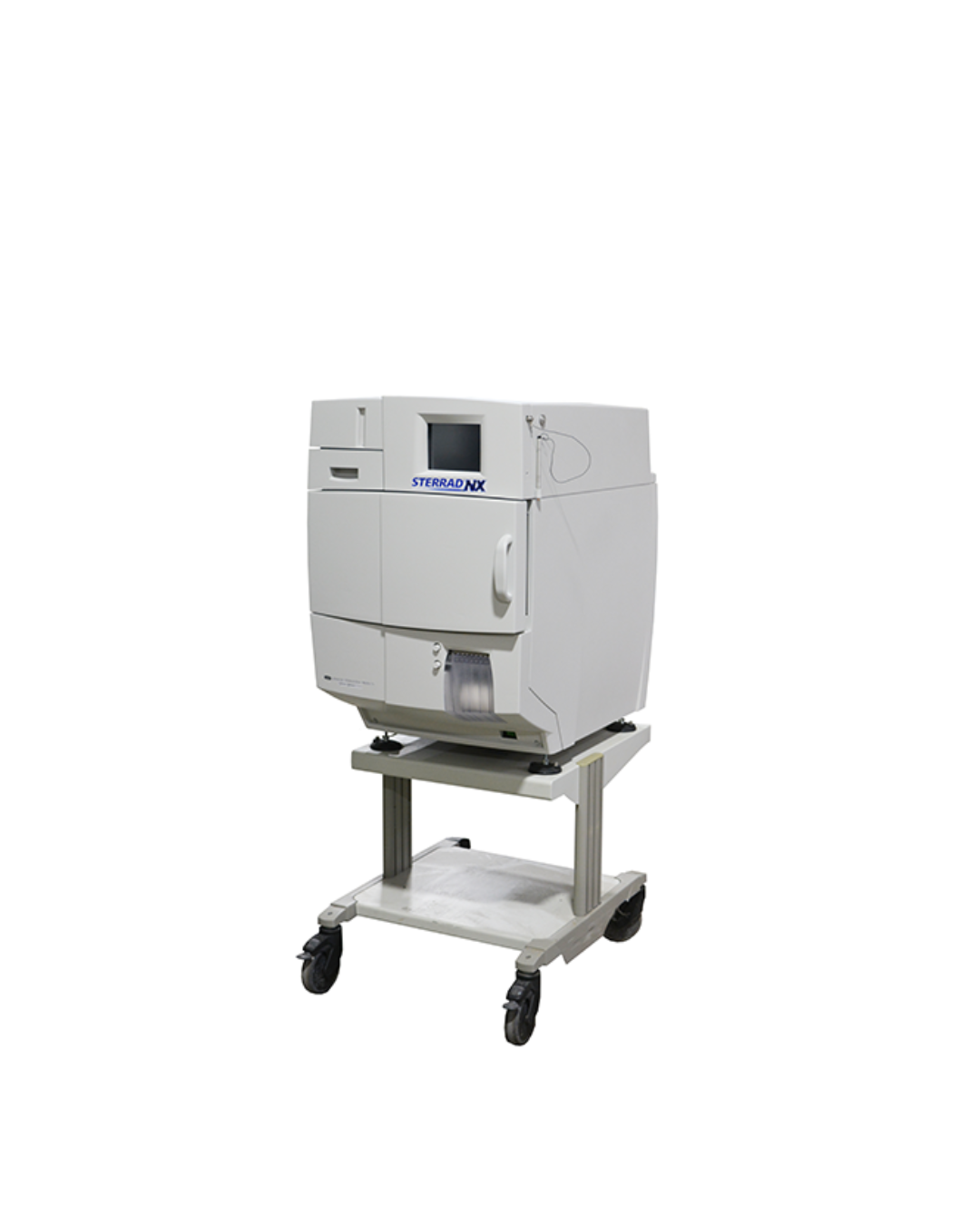

  Designed for versatility with a compact footprint and optional mounting on a specially designed cart or suitable countertop. Requires only a standard electrical outlet for operation, enhancing its portability.

• Environmental and Safety Compliance:
  Ensures a safe working environment with non-toxic by-products of oxygen and water vapor. No special installations like heat boosters, plumbing, aeration, or ventilation are required.

Specifications

• Dimensions:

  • Without Cart:
    • Height: 83.4 cm
    • Width: 55.9 cm
    • Depth: 80.6 cm
  • With Cart:
    • Height: 157.7 cm
    • Width: 60.9 cm
    • Depth: 88.8 cm
  • Weight: 125 kg (187 kg with Cart)

• Sterilization Chamber:

  • Total Volume: 51.3 L
  • Usable Volume: 30 L
  • Two-Tiered Shelf: 31.2 cm x 59.9 cm

• Installation and Electrical Requirements:

  • Placement: Recommended on a specially designed cart or a compliant countertop.
  • Electrical Connections: Single-phase dedicated circuit with dedicated hot and neutral wires sufficient to maintain 220–240 VAC with 10 amp continuous & 20 amp momentary current.

• Operational Environment:

  • Temperature: 64°F to 95°F / 18°C to 35°C
  • Humidity: 10% to 85% up to 86°F ambient, linearly decreasing from 85% at 86°F to 70% at 95°F.
