ASP Sterrad NX with ALLClear

ASP Sterrad NX with ALLClear

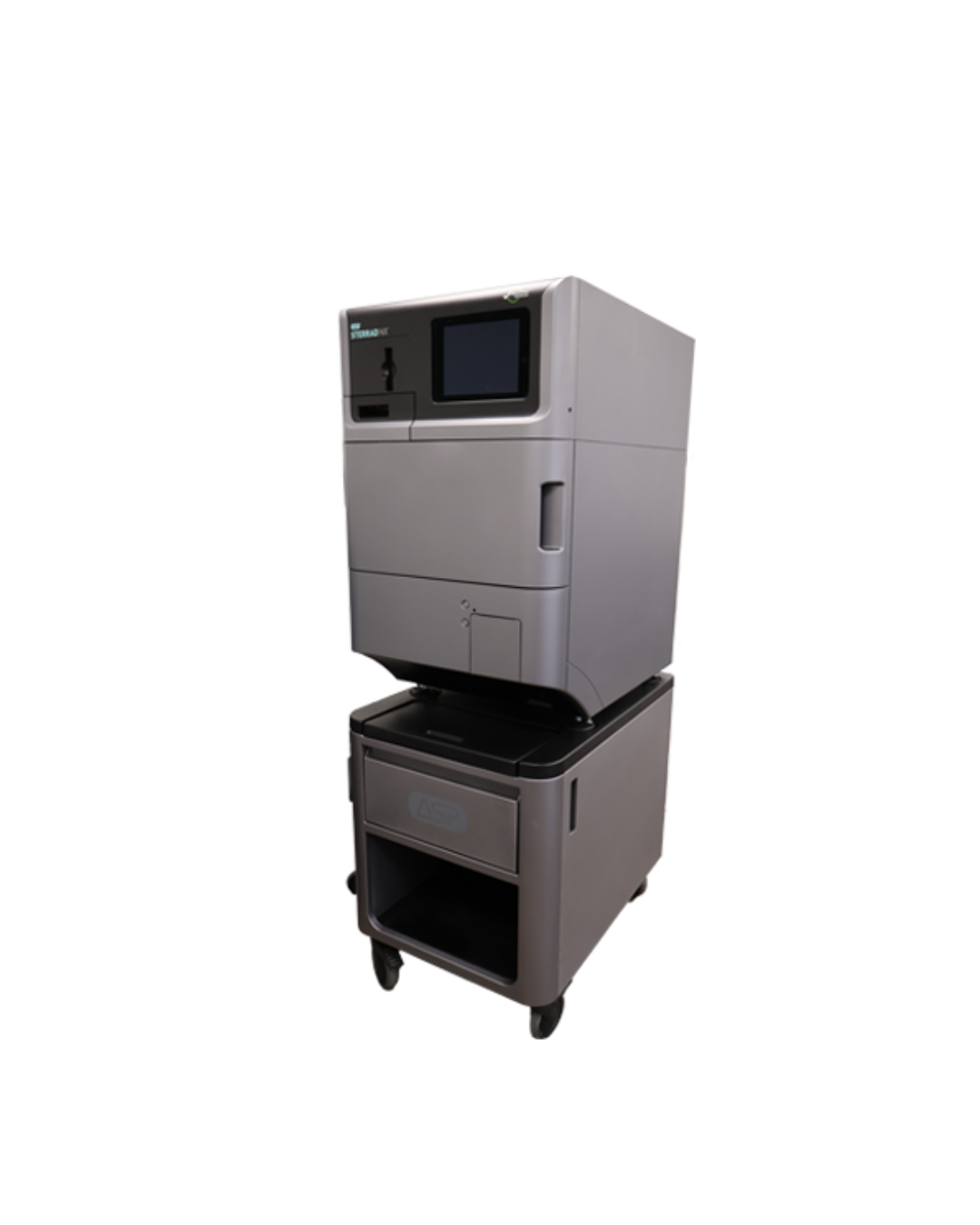

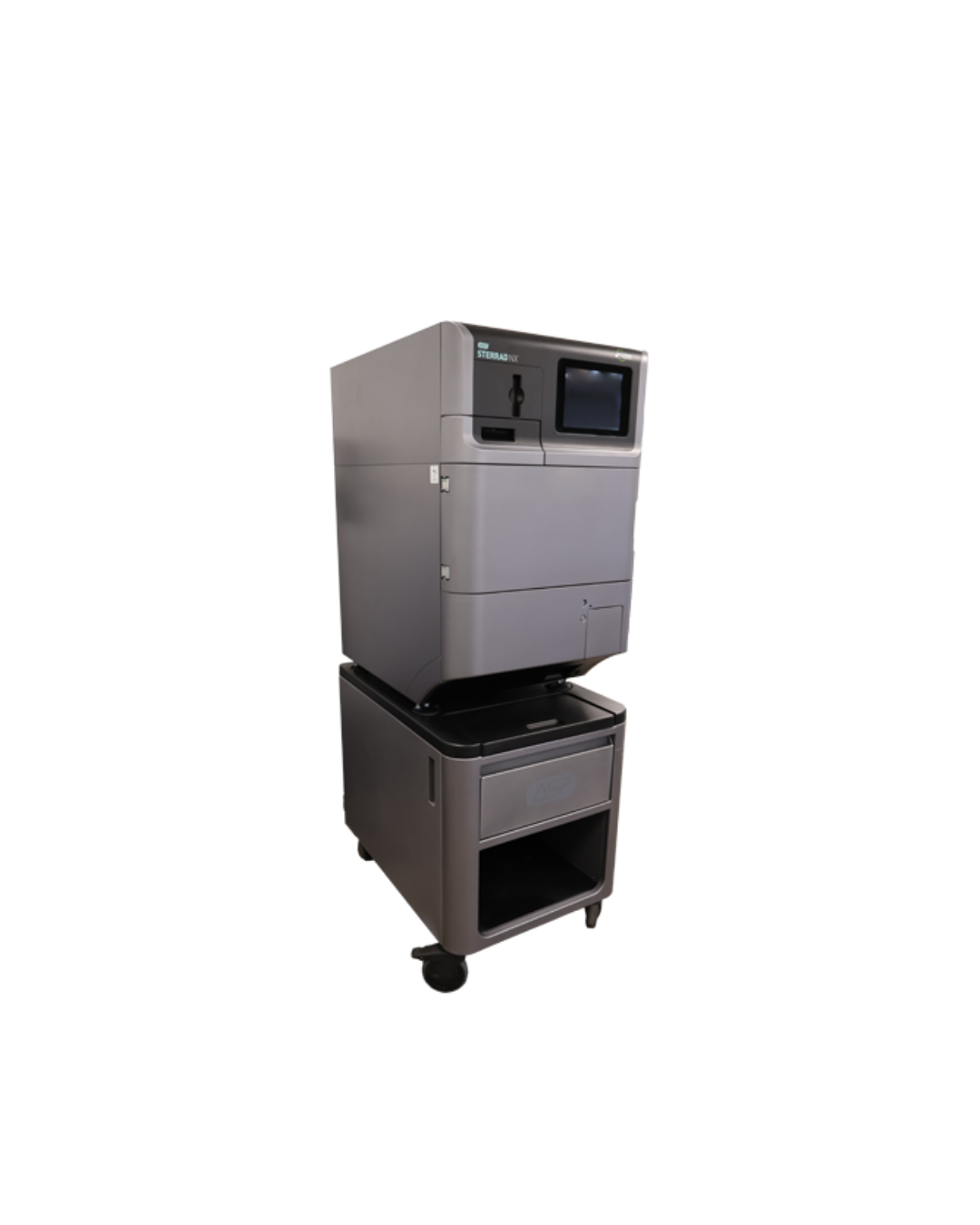

The ASP Sterrad NX with ALLClear is a state-of-the-art, compact sterilization system that uses hydrogen peroxide vapor and plasma technology for the efficient sterilization of medical instruments. Designed to be space-efficient, this system can be easily positioned on a cart or countertop, making it ideal for facilities with space constraints. Renowned for its global footprint, with over 22,000 installations, the ASP Sterrad NX with ALLClear is recognized for its reliability and effectiveness in providing conclusive sterilization results.

Key Points

• Efficient and Compact Design:
  Provides a space-saving solution with the flexibility to be placed on a cart or countertop, catering to various space requirements in medical facilities.

• Energy and Resource Conservation:
  Consumes approximately 70% less energy per year compared to traditional steam sterilizers and saves an estimated 180,000 liters of water annually, making it an environmentally friendly choice.

• Safety and Compliance:
  Features touch-free cassette disposal to enhance safety for operating personnel and moisture detection and correction capabilities to ensure effective sterilization.

• Advanced Sterilization Technology:
  Employs a terminal-sterilization double-kill cycle to achieve a Sterility Assurance Level (SAL) of 10^-6, with two injections and identical plasma phases, ensuring reliable sterilization.

• Integrated Diagnostics and Data Management:
  Runs system diagnostics before sterilization cycles and offers full electronic cycle data and reports via ASP ACCESS™ Technology, enhancing operational efficiency and traceability.

Specifications

• Dimensions:

  • Height: 36.6 in (93 cm)
  • Width: 21.8 in (55.4 cm)
  • Depth: 31.2 in (79.2 cm)
  • Weight: 280.5 lbs (127.2 kg)

• Cycle Temperature:

  • Range: 47°C–56°C

• Electrical Power Specs:

  • Single phase 50/60 Hz, voltage +/- 10%
  • US/Canada: 120 VAC, 16A (recommended receptacle: NEMA 5-20R)
  • Japan: 200 VAC, 10A
  • International: 200-240 VAC, 10A; 110-120 VAC, 16A

• Sterilization Process:

  • Terminal-sterilization, double-kill cycle
  • Chamber Volume: 30 liters
  • Chamber Dimensions:
    • Height: 6.2 in (15.7 cm)
    • Width: 12.6 in (32.0 cm)
    • Depth: 23.6 in (60.0 cm)

• Chamber Shelves:

  • Two shelves, W 12.3 in. (31.2 cm), D 23.6 in. (60.0 cm)
  • Shelf capacity: 25 lbs. (11.4 kg) uniformly distributed
  • Top shelf is removable

• Cycle Time:

  • STANDARD Cycle: Approx. 28 minutes
  • ADVANCED Cycle: Approx. 38 minutes
