Baxter AS40

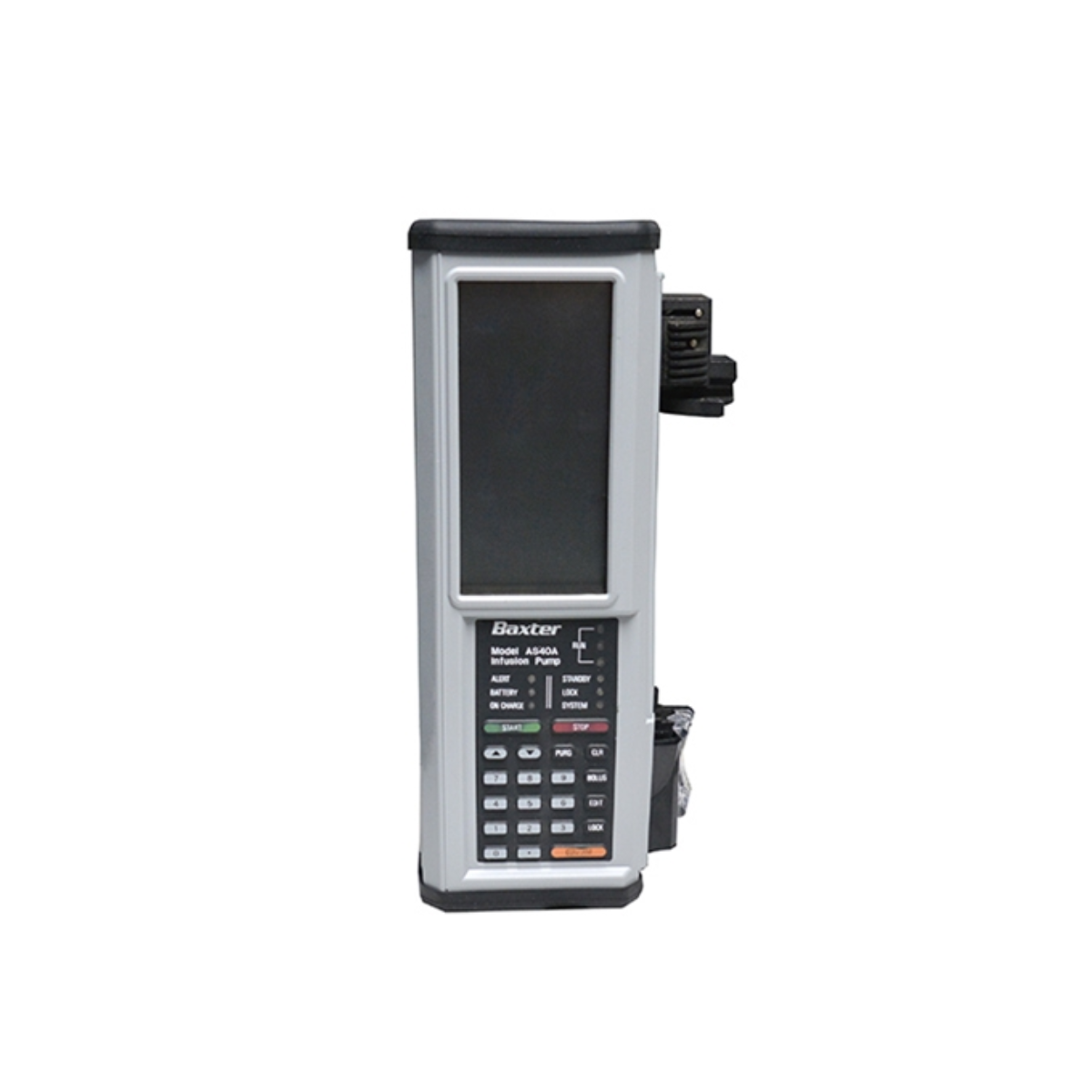

Baxter AS40 Syringe Pump

The Baxter AS40 is an auto syringe infusion pump designed to deliver a variety of infusion therapies with flexibility and precision. Whether you need continuous or intermittent infusions, this pump is versatile enough for intravenous, intra-arterial, epidural, or even subcutaneous applications. It offers programmable flow rates ranging from as low as 0.01 mL/hr up to 438 mL/hr, allowing you to tailor the delivery to your patient’s needs. With a customizable drug library and automatic syringe size recognition, the AS40 helps minimize programming errors and optimize workflow. Its rechargeable battery can last up to 12 hours, and it works with standard disposable syringes in sizes from 1 mL to 60 mL. Additional configurable options include selectable infusion modes, maximum infusion rate settings, and occlusion pressure sensitivity.

Key Features:

• Versatile Infusion Options:

  • Supports both continuous and intermittent infusion modes.
  • Suitable for intravenous, intra-arterial, epidural, and subcutaneous infusions.

• Customizable & Programmable:

  • Programmable flow rates from 0.01 to 438 mL/hr.
  • Pre-programmable bolus operation with customizable drug library.
  • Automatic syringe size recognition and selectable infusion modes.

• User-Friendly Interface:

  • Alarms and alert messages displayed on a self-prompting, multi-field screen.
  • Nine-LED status display for quick status checks.

• Portable & Reliable:

  • Compact design works with standard disposable syringes (1 mL to 60 mL).
  • Powered by an internal rechargeable battery with up to 12 hours of operation.

Specifications:

• Dimensions & Weight:

  • Height: 3.4 in (8.6 cm)
  • Width: 2.6 in (6.7 cm)
  • Length: 10 in (25 cm)
  • Weight: 3.2 lb (1.45 kg)

• Flow Rate & Volume Accuracy:

  • Flow Rate Range: 0.01 mL/hr to 360 mL/hr (depending on the syringe)
  • Flow Rate Accuracy: ±3% of full-scale plunger travel (excluding syringe tolerance)
  • Volume Accuracy: ±3% or 0.007″ of travel, whichever is greater (excluding syringe tolerance)
  • Delivery Volume: Full syringe volume for 1-60 mL syringes

• Syringe Compatibility:

  • B-D Syringes: 1, 3, 5, 10, 20, 30, 60 mL (plastic)
  • Sherwood Monoject: 1, 3, 6, 12, 20, 35, 60 mL
  • Terumo: 1, 3, 5, 10, 20, 30, 60 mL

• Data & Status Display:

  • Self-prompting, multi-field data display
  • Nine-LED status array

• Power Requirements:

  • AC: 105-125V, 60 Hz (used with the battery charger)
  • DC: Powered by an internal rechargeable battery pack
  • Battery Life:
    • Up to 12 hours of operation at 2 mL/hr (using a 60 mL syringe)
    • Approximately 5 hours of operation at 100 mL/hr
