Baxter Spectrum IQ

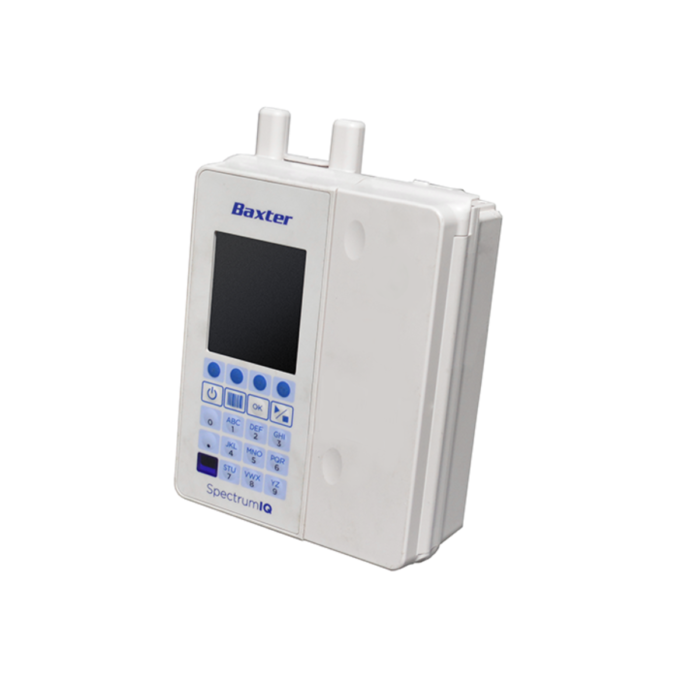

Baxter Spectrum IQ Infusion Pump

The Baxter Spectrum IQ is a large-volume infusion pump built on the trusted design of the Baxter Sigma Spectrum. It brings a comprehensive drug library to the table, which helps ensure that your facility stays compliant and that your infusion therapies are precisely programmed. With full integration into your facility’s EMR system, the pump supports auto-programming and auto-documentation, simplifying your workflow. It also features on-screen barcode technology that scans and provides additional prompts for auto-programmed infusion dosages, making setup fast and accurate.

Key Features:

• Full EMR Integration: Enables auto-programming and auto-documentation for seamless clinical workflows.
• On-Screen Barcode Technology: Simplifies workflow by providing additional prompts and reducing programming errors.
• Comprehensive Drug Library: Industry-leading compliance ensures all infusion medications are available and up-to-date.
• Titration Error Prevention: Unique safeguards help prevent dosing mistakes during titration.
• Versatile IV Use: Supports a single IV set for both gravity and in-pump use.
• Asset Tracking: Features end-to-end tagless tracking of pump status and location.

Specifications:

• Dimensions:

  • Wireless Battery Module (Without IV Pole Clamp):
    • 7.4” high x 5.2” wide x 3.3” deep
  • Wireless Battery Module (With Standard IV Pole Clamp):
    • 7.4” high x 7.7” wide x 5.5” deep
  • Weight:
    • Without IV pole clamp: Approximately 45.6 oz (± 1.0 oz)
    • With standard IV pole clamp: Approximately 51.6 oz (± 1.0 oz)

• Flow Rate:

  • 0.5 to 999 mL/hr
  • Increments:
    • 0.1 mL/hr increments from 0.5 to 99.9 mL/hr
    • 1.0 mL/hr increments from 100 to 999 mL/hr

• AC Power:

  • Input: 100-240 VAC, 50-60 Hz, 300 mA
  • Output (P/N 30205): 9V DC/1000 mA (short circuit protected)
  • Cord Length: Approximately 3.0 m (about 9.75 feet)

• Occlusion Pressure Settings:

  • High: 19 ± 9 PSI
  • Medium: 13 ± 6 PSI
  • Low: 6 ± 4 PSI
  • (Adjustable to meet different clinical requirements)

• Operating Conditions:

  • Temperature: 60°F to 90°F (15.6°C to 32.2°C)
  • Relative Humidity: 20% to 90% (non-condensing)
