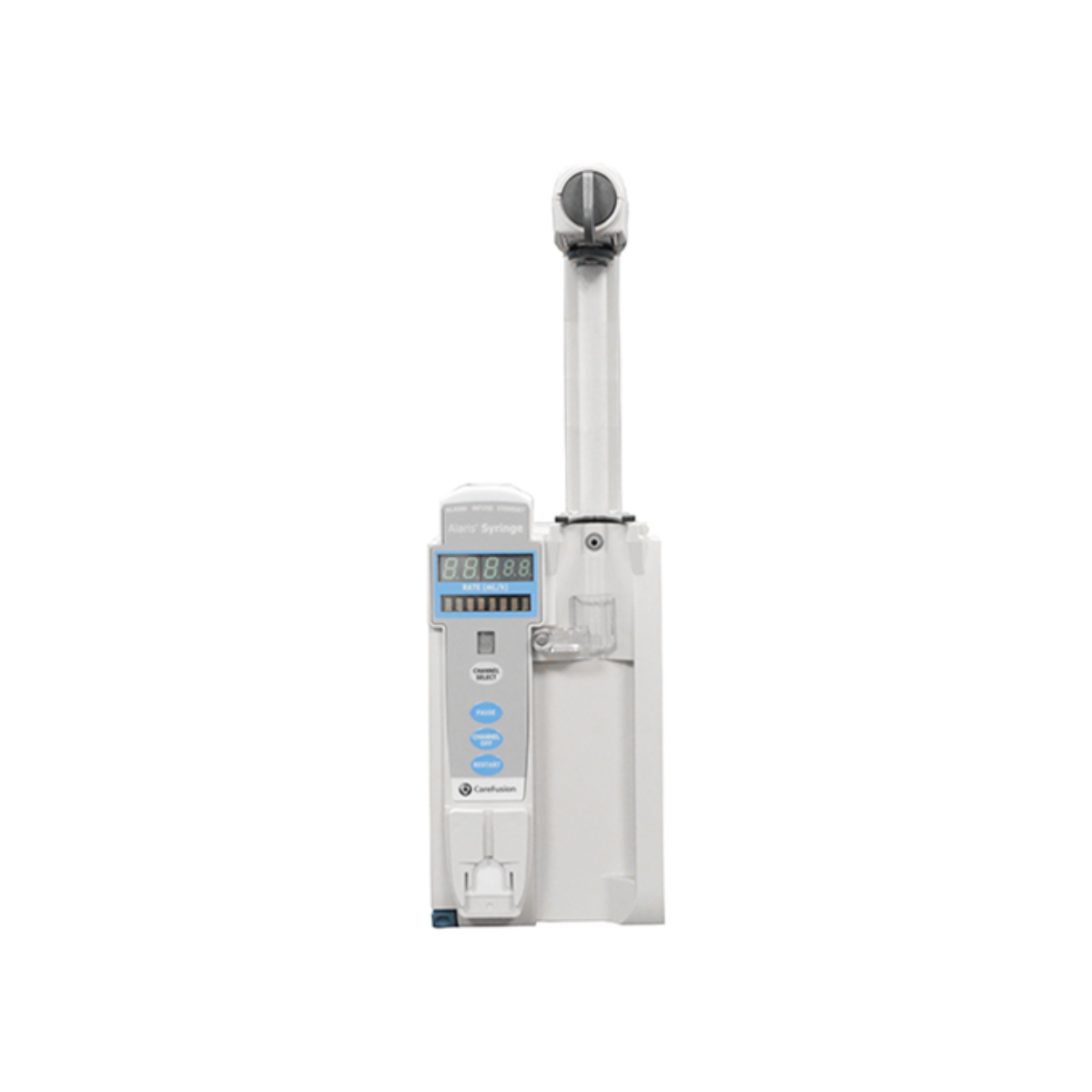

BD Alaris Syringe Module 8110

BD Alaris Syringe Module 8110

The BD Alaris Syringe Module 8110 is designed to deliver fluids, medications, blood, and blood products accurately to patients across a wide range of clinical applications. Engineered to work with the Alaris PC unit and the Guardrails drug library system, this syringe module is part of the comprehensive Alaris Medley Point of Care System. It’s suitable for adults, pediatrics, and neonates, making it a versatile solution for various routes of administration—whether intravenous, intra-arterial, or enteral.

A standout feature of the 8110 is its pressure-sensing dispenser, which uses a pressure disc to monitor line pressure and ensure precise fluid delivery while reducing infusion time. The system allows for front loading of the syringe and includes an extended handle to protect the plunger drive, enhancing durability. With a lightweight design (only 4.5 pounds) and a common user interface that matches other Alaris modules, it simplifies training and daily operation. Additionally, the module is built to support up to four additional modules attached to a single PC unit, enabling multiple infusions simultaneously.

Key Features:

• Versatile Fluid Delivery:
  • Infuses fluids, medications, blood, and blood products.
  • Suitable for intravenous, intra-arterial, and enteral delivery.
• Advanced Pressure Sensing:
  • Uses a pressure disc in the syringe system for precise monitoring of line pressure and delivery.
• Integration & Compatibility:
  • Works seamlessly with the Alaris PC unit and is fully compatible with the Guardrails drug library system.
  • Part of the comprehensive Alaris Medley Point of Care System.
• User-Friendly Design:
  • Features a common user interface (front panel keys are consistent with other Alaris modules).
  • Front-loading of the syringe enhances ease of use.
• Durable & Expandable:
  • Robust design that can handle up to four additional modules attached to the system.
  • Plunger drive is protected with an extended handle.
• Accurate Dosing:
  • Pressure-sensing dispenser reduces infusion time while ensuring precise dosages.
• Weight & Portability:
  • Lightweight at only 4.5 lbs for easy transport and handling.

Specifications:

• Bolus Volume After Occlusion (Without Pressure Sensing Disc):

  • Low Setting: 0.512 mL
  • Medium Setting: 0.776 mL
  • High Setting: 1.103 mL

• Bolus Volume After Occlusion (With Pressure Sensing Disc):

  • 300 mmHg:
    • Back Off Disabled: 0.462 mL
    • Back Off Enabled: 0.126 mL
  • 500 mmHg:
    • Back Off Disabled: 0.575 mL
    • Back Off Enabled: 0.331 mL
  • 1000 mmHg:
    • Back Off Disabled: 0.839 mL
    • Back Off Enabled: 0.323 mL

• Critical Volume:

  • Maximum over-infusion in a single fault condition will not exceed 2% of the nominal syringe fill volume during loading and 1% of maximum syringe travel after loading.

• Flow Rate Range:

  • 0.01 to 9.99 mL/hr in 0.01 mL/hr increments
  • 10 to 99.9 mL/hr in 0.1 mL/hr increments
  • 100 to 999 mL/hr in 1 mL/hr increments

• Dimensions:

  • Width: 4.5 in
  • Height: 15 in
  • Depth: 7.5 in

• Weight:

  • 4.5 lbs
