Conmed Beamer CE600

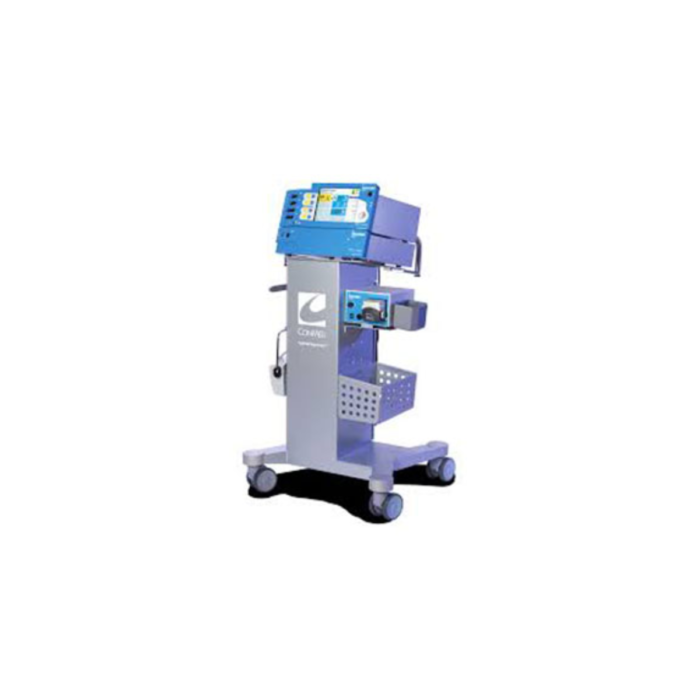

ConMed Beamer CE600 Electrosurgical Unit

The ConMed Beamer CE600 is a cutting-edge electrosurgical unit specifically designed for endoscopic use. This versatile platform combines advanced technology with unparalleled ease of use, allowing practitioners to deliver multiple therapies from a single device. Featuring an intuitive user interface with a clear, essential-focused display and quick step control, the CE600 enables rapid selection of desired clinical effects with consistent, repeatable outcomes. Additional features include an optional ABC function, integrated irrigation pump, and hands-free double-foot pedal for streamlined operation and improved workflow, along with convenient storage options.

Key Features

• Multi-Therapy Platform:
  • Delivers various electrosurgical therapies from one unit, ideal for endoscopic procedures.
• User-Friendly Interface:
  • Clear display that focuses on essential information with quick step control for effortless operation.
• Enhanced Functionality:
  • Includes an optional ABC function and integrated irrigation pump for added versatility.
• Hands-Free Operation:
  • Optional double-foot pedal for hands-free control, enhancing procedural efficiency.
• Convenient Storage:
  • Compact design ensures easy storage and portability.

Detailed Specifications

Dimensions & Weight

• Dimensions (W x H x D):
  • 390 x 182 x 435 mm
• Weight:
  • 8.3 kg

Power Specifications

• Power Requirements:
  • 100–240 V ±10%
• Mains Current:
  • Max. 6.3 A
• Mains Fuse:
  • 6.3 A
• Nominal Frequencies:
  • 50/60 Hz
• Power Input:
  • Standby mode: 40 VA
  • Maximum: 600 VA

Output Data

• Cutting Power (Pulse):
  • Max. 350 watts
• Coagulation Power:
  • Max. 120 watts
• HF Frequencies:
  • 350 – 850 kHz

Standards & Safety

• Classification:
  • In accordance with MDD; Applied Part Approval: IIb, CF, defibrillation-proof; CE 0297 compliant with 93/42/EEC
• LF Leakage Currents:
  • Compliant with IEC 60601-1 (tested in connection with the Beamer System)
• Duty Type:
  • Intermittent operation at 10 s ON/30 s OFF (25% duty cycle)
