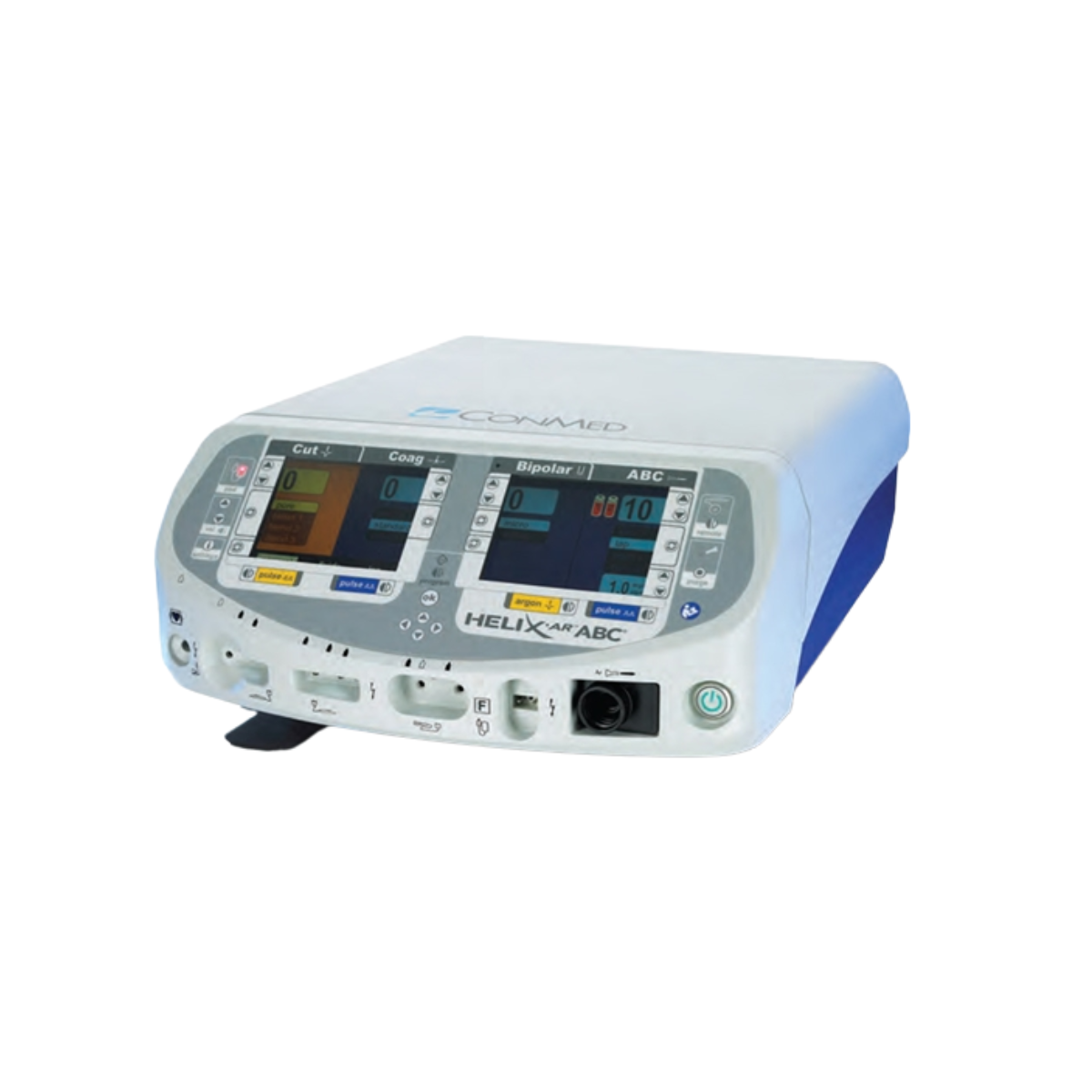

ConMed HelixAR Electrosurgical Generator

The ConMed HelixAR Electrosurgical Generator with Argon Beam Coagulation (ABC®) is an advanced, standalone head unit designed for both open and laparoscopic procedures. It leverages proprietary Dynamic Response Technology to adjust energy delivery in real time—responding to tissue impedance changes in less than 10 milliseconds. This rapid response minimizes unintentional tissue charring and reduces thermal damage while promoting rapid, superficial hemostasis. By using argon gas to cool tissue during RF energy delivery, the HelixAR achieves precise, uniform coagulation with less blood loss and improved eschar integrity. The unit also features a programmable interface that can store up to 100 custom settings and allows remote power control via an electrosurgical pencil.

Key Features

• Dynamic Response Technology:

  • Samples current and voltage in less than 10 ms to adjust RF energy delivery, ensuring consistent tissue effects and minimal charring.

• Argon Beam Coagulation (ABC®) Modes:

  • Monopolar Specialty Modes:
    • Laparoscopic Mode: Limits voltage to 2700V to reduce burn risk from capacitive coupling.
    • Fluids Mode: Rapid energy initiation for immediate effect in high load/low impedance conditions.
    • Pulse Coag: Provides pulsing bursts for controlled hemostasis with reduced carbonization.
  • ABC® Modes:
    • Argon Dissect: For argon-enhanced cutting with varying hemostatic levels.
    • Pulse Argon: Delivers controlled coagulation for small surface bleeders.

• Enhanced Visualization & Safety:

  • Argon gas flows help carry surgical smoke away, reduce unpleasant odors, and clear blood and fluids from the surgical field.
  • Continuous microprocessor safety monitoring and automatic tank switchover between dual argon gas tanks reduce downtime.

• User-Friendly Interface:

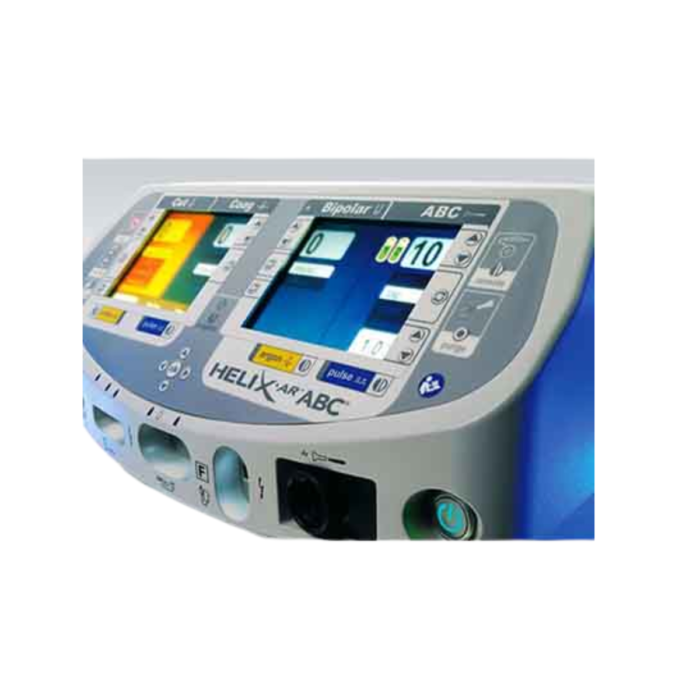

  • Color LCD display with intuitive menus and programmable settings (up to 100 custom settings).
  • Wireless footswitch kit available for hands-free operation (includes monopolar and ABC footswitches).

• Versatile Energy Modes:

  • Offers a range of monopolar modes (Pure Cut, Blended Cut, Pulse Cut, Pulse Coagulation, Spray Coagulation, Standard Coagulation, Pinpoint Coagulation) and bipolar modes (Macro and Micro Coagulation) for comprehensive surgical needs.

Detailed Specifications

Dimensions & Weight

• (Dimensions are for the head unit only; refer to product manual for full system details.)

Performance & Operation

• Dynamic Response:
  • Reacts to tissue impedance changes in less than 10 ms.
• Argon Gas Management:
  • Equipped with two argon gas tanks that automatically switch when the first is depleted.
• User Controls:
  • Remote power control via an electrosurgical pencil.
  • Wireless footswitch kit available (optional), with both monopolar and ABC footswitch options.
• Display & Software:
  • Color LCD display with USB software update capability.
  • Smart Cart integration for efficient transport and setup.
• Modes:
  • Monopolar Modes: Pure Cut, Blended Cut (levels 1–3), Pulse Cut, Pulse Coagulation, Spray Coagulation, Standard Coagulation, and Pinpoint Coagulation.
  • Bipolar Modes: Macro Coagulation and Micro Coagulation.
  • Specialty Modes: Laparoscopic, Fluids.
  • ABC® Modes: Open (automatic), Lap (laparoscopic/endoscopic), ABC Flex (manual), Argon Dissect, Pulse Argon.

Environmental & Electrical

• (Refer to product manual for detailed electrical and environmental specifications.)
