Conmed Sabre 180

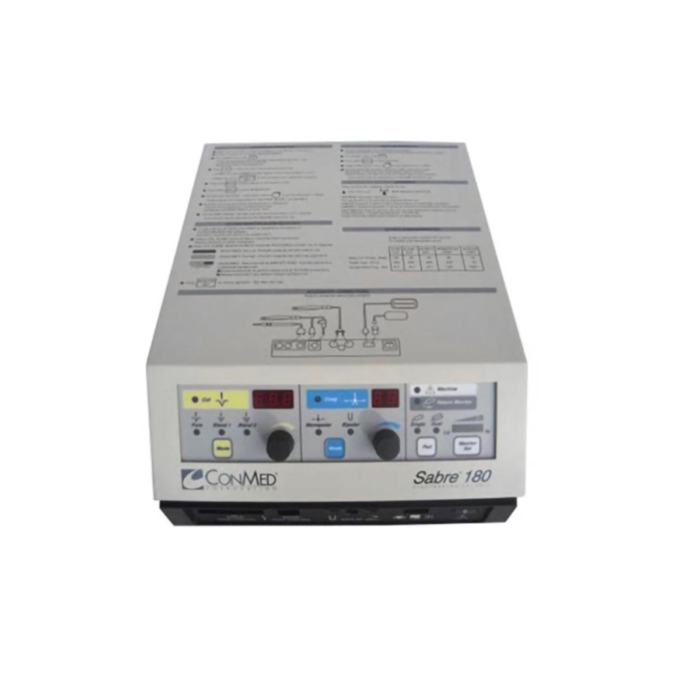

ConMed Sabre 180 Electrosurgical Unit

The ConMed Sabre 180 is a medium-powered electrosurgical generator engineered to deliver impressive performance in all modes—including monopolar cut, coagulation, and bipolar coagulation. It features advanced ARM (Aspen Return Monitor) technology, offering the most sensitive pad monitoring available to help minimize patient burns at the return electrode. With digital knob power controls and a memory that recalls last-used settings on power-up, the Sabre 180 provides precise and consistent energy delivery, ensuring optimal clinical outcomes for a wide range of procedures. Its rugged, high-efficiency circuitry, circuit redundancy, and isolated output design ensure maximum safety for both patients and operators. Versatile and compact, this unit is ideal for head and neck surgery, cardiac cath labs, laparoscopy, endoscopy, interventional radiology, and various office-based procedures.

Key Features

• Advanced Monitoring:
  • Features ARM (Aspen Return Monitor) for highly sensitive return electrode contact quality.
  • Resistance Indicator displays patient resistance between the return electrode contacts.
• Precise Power Control:
  • Digital knob power controls allow adjustments in 1-watt increments.
  • Automatically recalls last-used settings on power-up for consistent performance.
• Versatile Energy Modes:
  • Supports monopolar pure cut (up to 100 Watts), two cut blend modes (65W and 50W), coagulation (80W), and bipolar coagulation (50W).
  • Provides both monopolar and bipolar outputs for a wide range of surgical applications.
• Enhanced Safety Features:
  • Isolated output circuitry minimizes the risk of alternate ground site burns.
  • Only one output is active at a time to maximize safety.
  • Built-in circuit redundancy and microprocessor control for optimal power delivery.
• User-Friendly & Compact:
  • Simplified controls and a robust design ensure ease of use in a variety of surgical settings.
  • Ideal for use in surgery centers, minor surgery centers, and office clinics.

Applications

• Head and Neck Surgery
• Cardiac Catheterization Labs
• Laparoscopy Carts
• Minor Surgery Centers
• Endoscopy
• Interventional Radiology
• Physician Offices

Detailed Specifications

Dimensions & Weight

• Height: 6 in (153 mm)
• Width: 12 in (305 mm)
• Depth: 16 in (407 mm)
• Weight: 20 lbs (9.1 kg)

Output & Power

• Maximum Power (Monopolar Pure Cut): 100 Watts
• Cut Blend Modes: 65 Watts (Blend 1) and 50 Watts (Blend 2)
• Coagulation (Monopolar): 80 Watts
• Bipolar Coagulation: 50 Watts
• Input Voltage: 110 V
• Output Accuracy: ±10% or ±5W to rated load
• Power Adjustment: Digital knob, 1-watt increments, with a seven-segment digital display

Alarms

• Return Electrode Alarm: 1000 Hz, >65 dBA
• Control Error: 1710 Hz (pulsating, 40–65 dBA)
• Machine Fault: 1000 Hz, 65 dBA continuous
