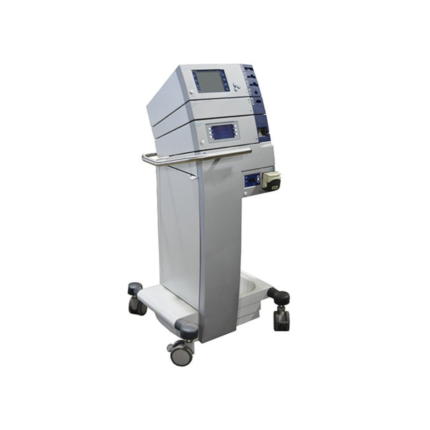

Conmed Sabre 2400 Electrosurgical Unit

ConMed Sabre 2400 Electrosurgical Generator

The ConMed Sabre 2400 is a full-power electrosurgical generator designed to meet the high-performance demands of modern electrosurgery. With independent monopolar outputs and enhanced bipolar capabilities, the Sabre 2400 offers precise, thermal damage-free cutting and efficient coagulation. Its patented controlled output voltage in cut mode continuously adjusts as the electrode glides through tissue of varying impedance, delivering superior cutting performance. Additionally, the Blend mode provides enhanced hemostasis while cutting, and the auto spray feature ensures effective spray coagulation at power settings above 50 watts. Designed for safety, convenience, and cost-effectiveness, the Sabre 2400 can be programmed for standardized use across a wide variety of surgical procedures.

Key Features

• High-Power Performance:
  • Full-power electrosurgical generator designed for the most demanding surgical applications.
• Precise Cutting Technology:
  • Patented controlled output voltage in cut mode adjusts continuously to maintain optimal cutting conditions with minimal thermal damage.
• Versatile Energy Modes:
  • Offers independent monopolar outputs and enhanced bipolar performance.
  • Blend Mode: Achieves superior hemostasis while cutting.
  • Auto Spray Feature: Provides effective spray coagulation at settings above 50 watts.
• Safety & Standardization:
  • Integrated Aspen Return Monitor for dispersive electrode monitoring ensures patient safety by detecting abnormal resistance levels.
  • Programmable settings allow for standardized operation across procedures.

Detailed Specifications

Dimensions & Weight

• Height: 6.75 in (17.1 cm)
• Width: 14.25 in (36.2 cm)
• Depth: 21.5 in (54.6 cm)
• Weight: 32 lbs (14.5 kg)

Performance Modes & Output

• Pure Cut Mode:

  • Maximum Power: 300 W
  • Maximum Peak-to-Peak Voltage: 2000 V
  • Load: 300 ohms
  • Crest Factor: 1.8

• Blend Cut Mode:

  • Maximum Power: 180 W
  • Maximum Peak-to-Peak Voltage: 2200 V
  • Load: 300 ohms
  • Crest Factor: 2.5

• Coagulation Mode:

  • Maximum Power: 120 W
  • Maximum Peak-to-Peak Voltage: 9000 V
  • Load: 500 ohms
  • Crest Factor: 7.0

• Bipolar Mode:

  • Maximum Power: 50 W
  • Maximum Peak-to-Peak Voltage: 280 V
  • Load: 50 ohms
  • Crest Factor: 1.5 – 12.1

Electrical & Operational Specifications

• Operating Frequency:
  • Cut and Coag modes: 416.7 kHz ± 0.01%
• Pulse Repetition Frequency:
  • Blend Mode: 20.0 kHz ± 0.01%
  • Coag Mode: 25.0 kHz ± 0.01%
  • Bipolar Mode: 20.0 kHz ± 0.01%
• Input Voltage:
  • 104-127 VRMS, 50/60 Hz (calibrated at 120V)
• Input Current:
  • Pure Cut at 300 W: 7.0 A max
• Leakage Currents:
  • Patient connections to neutral: <25 µA
  • Chassis to neutral: <25 µA typical
  • RF Leakage Current: <100 mA (measured with 200 ohms to ground)
• Power Decrease:
  • Typically <1% when pure cut is set to 150 W for 20 seconds
