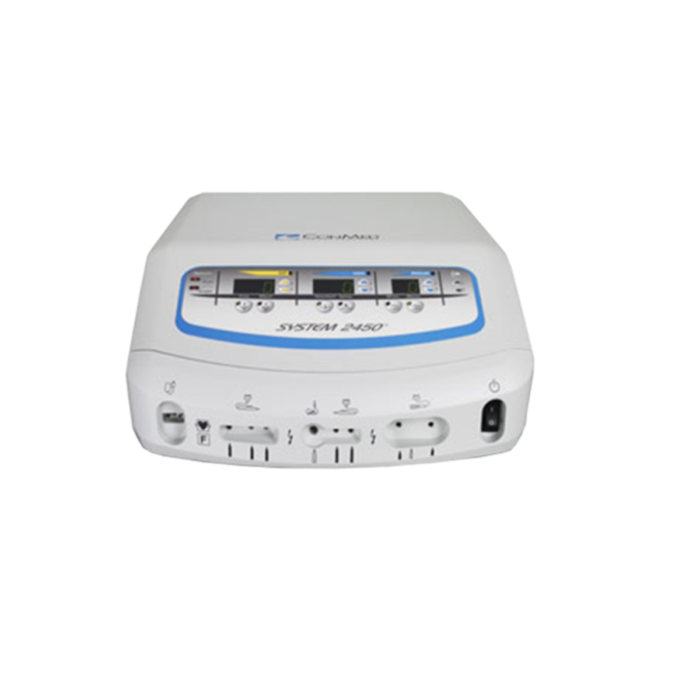

ConMed System 2450 Electrosurgical Generator

The ConMed System 2450 is a simple yet sophisticated workhorse electrosurgical generator engineered for consistent and optimal performance. This state-of-the-art unit incorporates ConMed’s innovative Dynamic Response Technology, which continuously synchronizes voltage and current to achieve precise clinical effects across all modes. Designed for ease of use, the System 2450 automatically restores your last settings at power-up and features multiple accessory connection options via its integrated one-hand/footswitch jack and Bovie-style footswitch connector. A serial interface port also enables advanced communication with robotic surgical systems or OR integration platforms. Additionally, the unit supports activation of an external smoke evacuator through its integrated interface, while front panel volume controls allow for quick adjustments.

Key Features

• Dynamic Response Technology:
  • Continuously optimizes voltage and current to deliver precise power for cutting, coagulation, blend, and fulguration modes.
• Safety & Consistency:
  • Continuous ARM safety monitoring minimizes the risk of patient burns by ensuring proper dispersive electrode contact.
  • Automatic programming restores the last-used settings for reliable, repeatable performance.
• Flexible Connectivity:
  • Features multiple accessory connections with a one-hand/footswitch jack and a Bovie-style connector.
  • Includes a serial interface port for integration with advanced robotic or OR systems.
• User-Friendly Controls:
  • Front panel digital volume control for easy adjustments.
  • Integrated interface for activation of an external smoke evacuator.

Detailed Specifications

Dimensions & Weight:

• Height: 7 in (18 cm)
• Width: 14.4 in (37 cm)
• Depth: 21.5 in (48 cm)
• Weight: 32 lb (14.5 kg)

Operation & Power Accuracy:

• Duty Cycle: Intermittent—15 sec on / 30 sec off
• Power Display Accuracy: Greater of 2% of maximum power or ±15% of the selected setting
• Line Regulation: Power change of less than 1% per volt across the specified line voltage range

Environmental Conditions:

• Operating Temperature: 10°C to 30°C with up to 95% RH (non-condensing)
• Storage Conditions: -34°C to 65°C, with altitudes from -60 to +4500 m
• Water Ingress Protection: IPX1 (protection against vertically falling water drops)

Cooling:

• Utilizes natural convection, conduction, and radiation; requires a 2-inch clearance on all sides for adequate cooling.

Additional Features:

• Previous Setting Memory: Remembers last used settings for consistency.
• Contact Quality Monitoring (CQM): ARM system monitors return electrode resistance between 10–150 ohms.
• Self-Diagnosis: Built-in system check ensures all components are functioning properly.
• Isolated RF Output: Designed for maximum patient safety.
