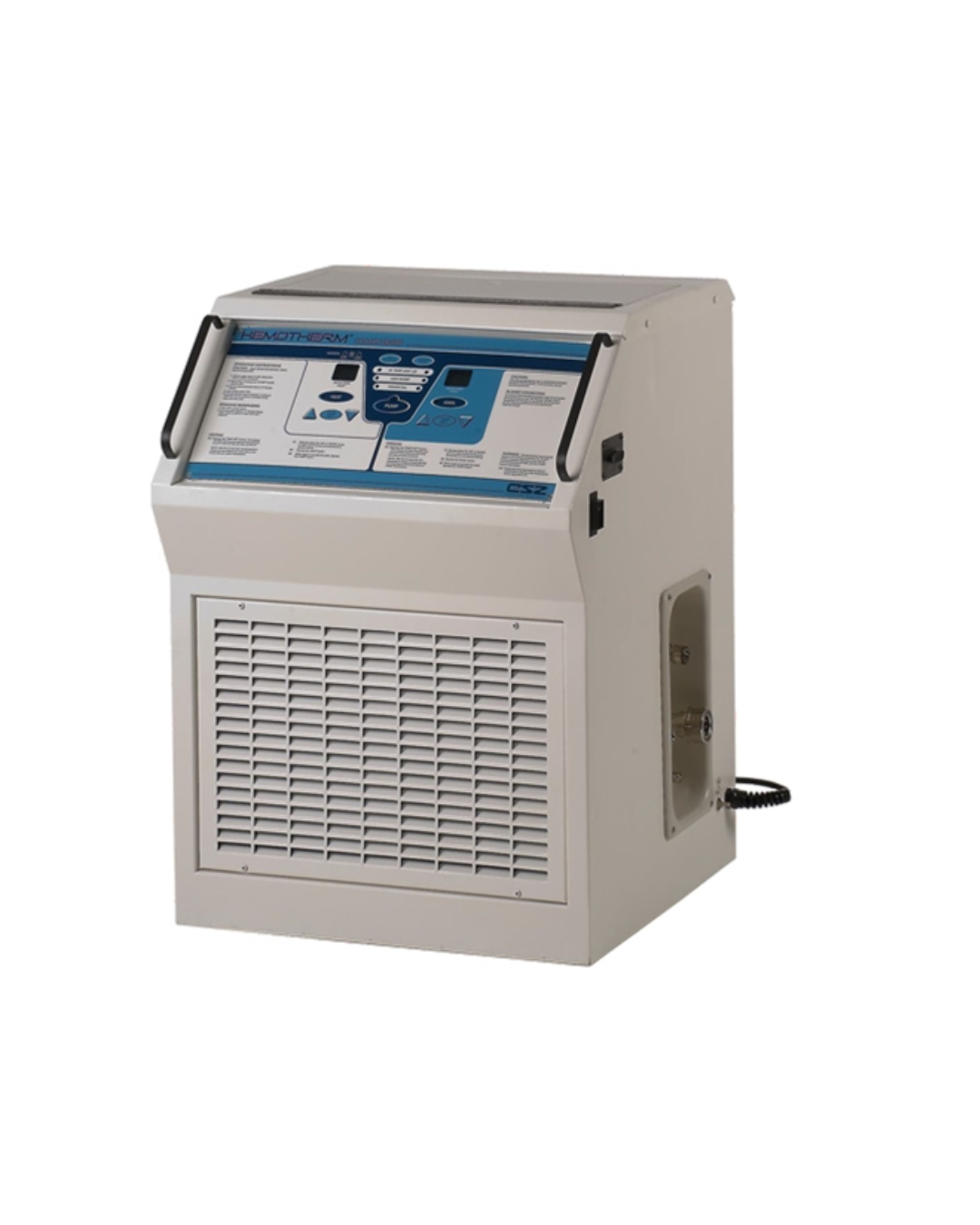

CSZ Hemotherm 400CE Dual Reservoir Heater/Cooler

The CSZ Hemotherm 400CE is a dual reservoir heater/cooler designed for use during cardiopulmonary bypass procedures lasting up to 6 hours. This system precisely controls the temperature of the water flowing through a blood oxygenator/heat exchanger to cool or warm blood. It is also compatible with hyper/hypothermia blankets to provide additional conductive warming. With full-range temperature control between 37.4°F and 107.6°F, high water flow rates at low pressures, and optional remote control (model 414CE), the Hemotherm 400CE is engineered to maintain normal body temperature during lengthy surgical procedures.

Key Features

• Precise Temperature Control:

  • Maintains water temperature in a full range from 37.4°F to 107.6°F.

• High Flow at Low Pressure:

  • Delivers high water flow rates while operating at low pressures.

• Dual Reservoir Design:

  • Separate reservoirs for cooling (8 qts / 7.6 L) and heating (6 qts / 5.7 L) allow independent control.

• Easy-to-Use System:

  • Features easy-to-fill reservoirs with quick-connect, no-spill, two-way shutoff fittings.
  • Integrated water level and pump indicators ensure smooth operation.

• Versatile Application:

  • Can be used with a hyper/hypothermia blanket for conductive warming.
  • Optional remote control model 414CE available for enhanced operational flexibility.

Detailed Specifications

Physical Dimensions & Weight

• Dimensions:
  • Height: 32 in (81 cm)
  • Width: 22 in (56 cm)
  • Depth: 22 in (56 cm)
• Weight:
  • 198 lbs (89.8 kg)

Reservoir Specifications

• Cooling Reservoir Capacity:
  • 8 quarts (7.6 liters)
• Heating Reservoir Capacity:
  • 6 quarts (5.7 liters)
• Reservoir Fluid:
  • Distilled water only
• Reservoir Opening:
  • Easy-to-fill; constructed from durable plastic

Flow Rate & Pressure

• Flow Rate:
  • 13 L/min (3.5 GPM) through self-sealing quick-connect fittings
  • 15 L/min (4 GPM) with standard quick-connect fittings
• Maximum Pressure:
  • 12.5 PSI for heat exchanger and blanket connections

Connections & Safety

• Connections:
  • 1 set of 1/2” quick-connect fittings for the heat exchanger
  • 1 set of 1/8” quick-connect fittings for the blanket
  • 1 set of 1/4” quick-connect fittings for draining (on unit)
  • 1 additional set of 1/2” quick-connect fittings for tubing
• Safety Features:
  • Secondary high-limit thermostat: 114.8°F ±0.5°C
  • Primary high-limit thermostat: 111.2°F ±0.5°C
  • Low limit thermostat: 35.6°F ±0.5°C

Electrical Characteristics

• Power Supply:
  • 115 VAC, 50/60 Hz, 16 Amps or 230 VAC, 50/60 Hz, 9 Amps
• Outlets Required:
  • 115 VAC – 20 Amps, AC grounded hospital-grade plug
  • 230 VAC – 15 Amps, AC grounded with a European plug
• Circuit Breaker Rating (in power switch):
  • 115 VAC: 20 Amps
  • 230 VAC: 15 Amps
• Mains Supply Isolation:
  • Two-Pole Mains Power Switch
