Curlin 4000 CMS

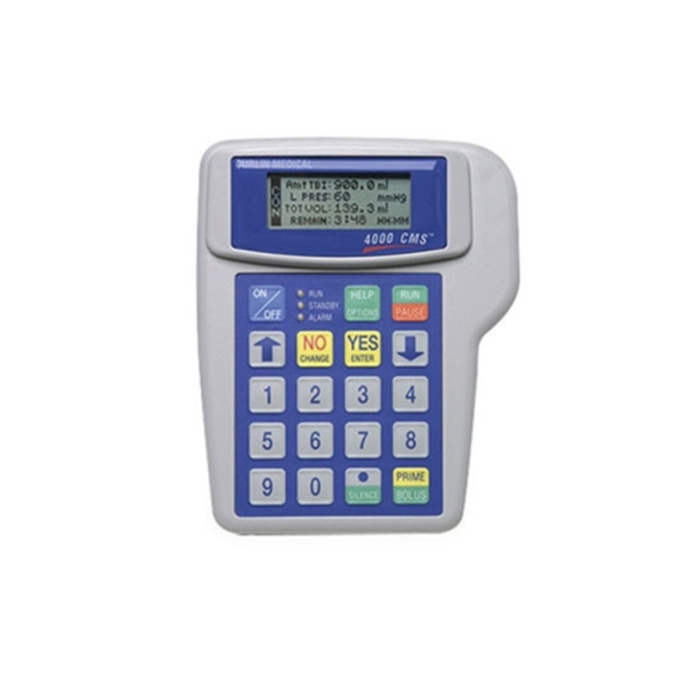

Curlin 4000 CMS Infusion Pump

The Curlin 4000 Clinical Management System (CMS) is a multi-therapy, ambulatory electronic infusion pump designed for a wide range of applications. Known for its low risk of medication errors, the Curlin 4000 supports several infusion modes including continuous, PCA (patient-controlled analgesia), PCEA (patient-controlled epidural analgesia), subcutaneous, YPN, intermittent, and variable. This pump monitors and displays line pressure to help detect catheter issues such as occlusion, obstruction, or pinched-off lines. One of its standout features is its excellent low-rate flow resolution, which outperforms many other ambulatory pumps on the market.

Key Benefits:

• Flexible:

  • Offers multiple therapy modes to meet diverse workflow needs.
  • Provides access to actionable reports and detailed infusion data to enhance performance.

• Safe:

  • Delivers medications at very low rates with up to 25 times better flow resolution compared to other ambulatory pumps.
  • Designed to work seamlessly with a PC, reducing programming errors and improving clinical outcomes.

• Easy to Use:

  • Features intuitive, menu-driven protocols with context-sensitive HELP screens for simple programming.

• Cost-Effective:

  • The simplicity of operation, reliable technology, and use of low-cost PVC administration sets help reduce overall ownership costs by cutting training expenses and lowering purchasing costs.

Specifications:

• Dimensions & Weight:

  • Length: 5 in
  • Width: 4 in
  • Depth: 2.5 in
  • Weight: 17.5 oz

• Power Requirements:

  • Can be powered by 2 “C” size alkaline batteries, AC power, or an external rechargeable battery pack.

• Battery Life:

  • Nominally 10 hours at 400 mL/hr
  • 30 hours at 125 mL/hr
  • 85 hours at 2 mL/hr

• Operating Environment:

  • Temperature:
    • ±6% Accuracy: 55° to 90°F
    • ±10% Accuracy: 45° to 55°F and 90° to 104°F
  • Relative Humidity: 15 to 95% (non-condensing)

• Storage Environment:

  • Temperature: -20° to 140°F
  • Relative Humidity: 5 to 95% (non-condensing)

• General Performance:

  • Accuracy: ±6%
  • Flow Rate Range: 0.1 mL to 400 mL/hr
  • Volume Limits: 1.0 mL to 9,999 mL
  • KVO Rates: 0.0 to 10 mL/hr (default is 0.1 mL/hr)
