ERBE VIO 200D

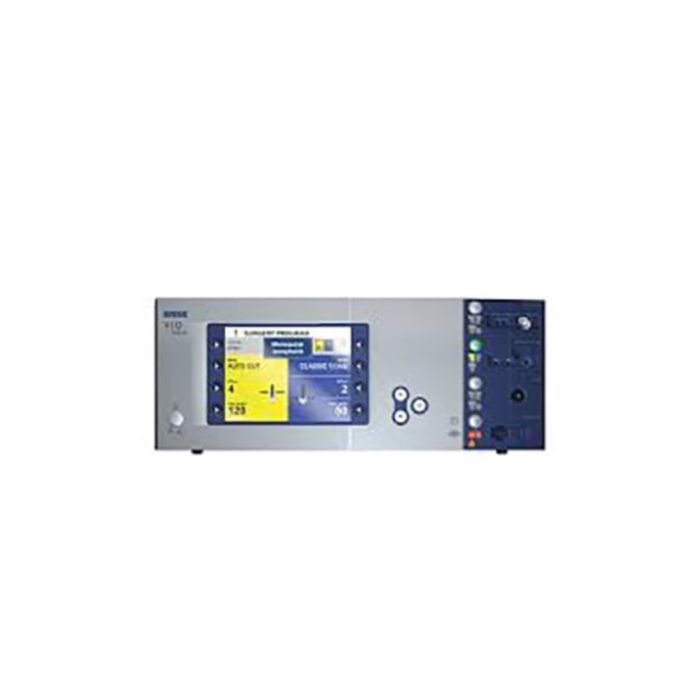

ERBE VIO 200 D Electrosurgical Generator

The ERBE VIO 200 D sets innovative standards for electrosurgical systems, providing optimum surgical support for a wide range of disciplines. This advanced generator features automatic power dosage and improved CUT and COAG functions, ensuring precise energy delivery during surgery. With modular software and hardware, it offers the widest choice of socket modules and functions, including ReMode—an innovative feature that enables remote control activation straight from the sterile field. As the master control unit for other VIO modules, such as the APC 2, the VIO 200 D ensures seamless integration and reliable performance in even the most demanding surgical settings.

Key Features

• Automatic Power Dosage:

  • Ensures consistent and precise energy delivery for both cutting and coagulation.

• Enhanced CUT & COAG Functions:

  • New and improved modes provide reliable, reproducible tissue effects.

• Modular Design:

  • Features modular software and hardware for flexible integration with a wide range of socket modules and functions.

• ReMode Activation:

  • Allows remote control of the system directly from the sterile field for streamlined operation.

• Master Control Unit:

  • Serves as the central controller for the VIO electrosurgical system, including compatibility with modules like the APC 2.

Detailed Specifications

Dimensions

• Width: 16.14 in (410 mm)
• Height: 6.5 in (165 mm)
• Depth: 14.96 in (380 mm)
• Weight: 9.5 kg (20.94 lbs)

Operating Mode

• Intermittent Operation:
  • ON time 25% (e.g., 10 sec. activated / 30 sec. deactivated)

Ambient Conditions for Transport & Storage

• Temperature: -40°C to +70°C
• Relative Humidity: 10% – 95%

Ambient Conditions for Operation

• Temperature: +10°C to +40°C
• Relative Humidity: 15% – 80% (non-condensing)

Power Output

• Maximum CUT Power:
  • 200 watts at 500 Ohm
• Maximum COAG Power:
  • Up to 200 watts
• Frequency:
  • 350 kHz
• NE Safety System:
  • NESSY

Power Connection

• Line Voltage:
  • 100V – 120V or 220V – 240V ± 10%
• Power Frequency:
  • 50/60 Hz
• Line Current Maximum:
  • 8 A (at 100–120V) / 4 A (at 220–240V)
• Power Consumption:
  • Standby: 40 watts
  • Maximum HF Power: 500 watts (920 VA)
• Potential Equalization Connection:
  • Yes
• Power Fuse:
  • T 8 A (100–120V) / T 4 A (220–240V)
