ERBE VIO 200S

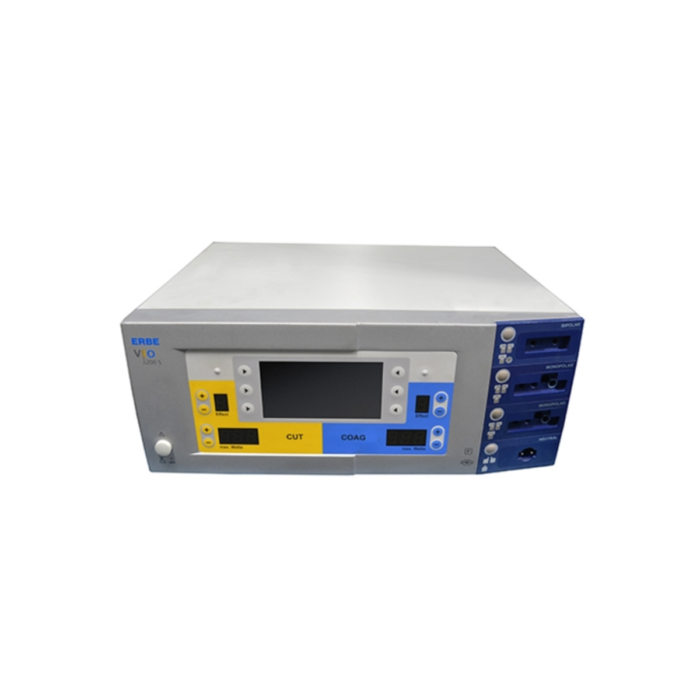

ERBE VIO 200S Electrosurgical Unit

The ERBE VIO 200S is a versatile electrosurgical unit designed to support a wide range of clinical procedures in outpatient and surgical settings. This unit offers an array of cutting and coagulation modes with automatic power adjustments for voltage, arc, and power controls. With advanced features like the Power Peak System (PPS) for optimal support during initial incisions, AUTO START and AUTO STOP functions in bipolar soft coagulation mode, and up to nine storable programs via the intuitive FocusView interface, the VIO 200S simplifies surgical workflow and enhances procedural safety. It also offers compatibility with the ERBE APC2 module for additional argon plasma coagulation modes.

Key Features

• Automatic Power Adjustments:
  • The unit automatically adjusts voltage, arc, and power to deliver precise energy dosing for optimal cutting and coagulation.
• Advanced Cutting & Coagulation Modes:
  • CUT Modes: Provide both standard and high cut functions for consistent, reproducible cuts.
  • COAG Modes: Includes soft coagulation (with AUTO STOP), force coagulation, and bipolar soft coagulation options for precise tissue control.
• Power Peak System (PPS):
  • Offers intelligent support during the initial cutting stage, especially in low contact impedance situations.
• User-Friendly Interface:
  • The FocusView interface reduces visual clutter, making the operation simple and intuitive.
• Programmable & Versatile:
  • Up to 9 storable programs allow customization of settings to match procedural requirements.
• Integrated Safety System:
  • Incorporates the NESSY Neutral Electrode Safety System for enhanced patient protection.
• Robust Construction:
  • Designed for reliable performance in both clinic and OR environments with excellent ambient and storage tolerances.

Detailed Specifications

Dimensions & Weight

• Width: 16.1 in (410 mm)
• Height: 6.5 in (165 mm)
• Depth: 15 in (380 mm)
• Weight: 19 lbs (8.8 kg)

Operating Mode

• Intermittent Operation:
  • Duty Cycle: ON 25% (e.g., 10 sec ON / 30 sec OFF)

Ambient Conditions for Transport & Storage

• Temperature: -40°C to +70°C (-40°F to +158°F)
• Relative Humidity: 10% – 95%

Operating Ambient Conditions

• Temperature: +10°C to +40°C (50°F to 104°F)
• Relative Humidity: 15% – 80% (non-condensing)

Power Output & Connection

• Maximum CUT Output: 200 watts at 500 ohms
• Maximum COAG Output: Up to 120 watts
• Frequency: 350 kHz
• Power Input:
  • System Voltage: 100–120V or 220–240V ±10%
  • Frequency: 50/60 Hz
  • Line Current: Max. 8 A (100–120V) / 4 A (220–240V)
• Power Consumption:
  • Standby: 40 watts
  • Maximum HF Output: 500 watts (920 VA)
• Potential Equalization: Yes
• Power Fuse: 8 A (at 100–120V) / 4 A (at 220–240V)

Safety & Standards

• Classification: According to 93/42 EWG, Class IIb
• Protection Category: I (EN 60601-1)
• Type: CF
• Environmental Conditions:
  • Operating Temperature: +10°C to +40°C
  • Operating Relative Humidity: 15% – 80% (non-condensing)
