GE OEC 9800 Plus C-Arm

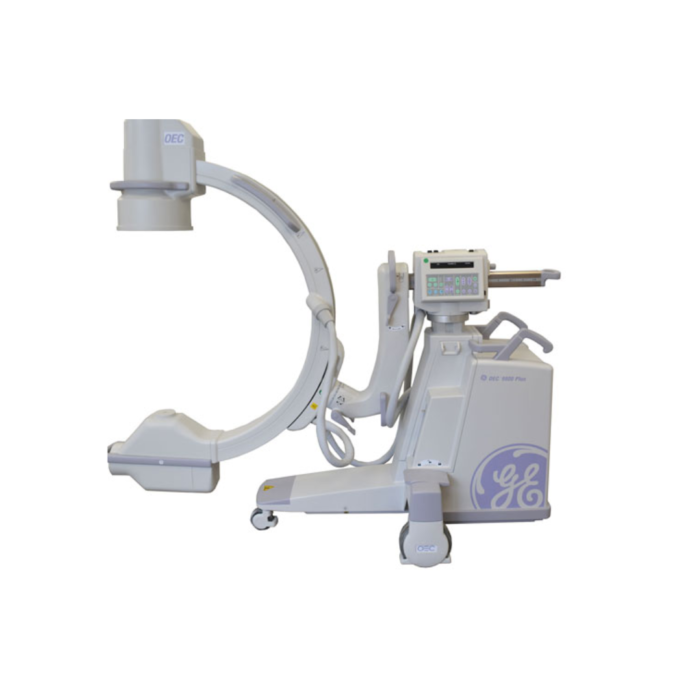

GE OEC 9800 Plus C-Arm Mobile X-ray System

The GE OEC 9800 Plus C-Arm is a cornerstone in mobile X-ray technology, designed for a broad range of X-ray applications including pain management, orthopedic surgeries, vascular, neurovascular, and cardiac procedures. This system combines state-of-the-art imaging capabilities with a touch screen system to ensure optimal performance with low X-ray dosages, supported by a robust 15kW generator.

High-Quality Imaging and Flexibility:

• Advanced Imaging: Delivers 1K x 1K high-resolution images enhanced by GE’s image intelligence technology, ensuring crisp and clear visualizations crucial for complex surgeries.
• Versatile Design: Offers both 9-inch and 12-inch image intensifiers to cater to different procedural needs, with a rotating anode X-ray tube that provides sharp imaging details.

User-Centric Operation:

• Intuitive Interface: Equipped with touch screen controls and dual high-resolution 16” monitors, making it easy to adjust settings and view images. The system also allows for patient annotation and a 16-image collage for comprehensive examination.
• Smart Imaging Technologies: Includes Smart Metal and AutoTrak technologies to maintain optimal image quality even in the presence of metal implants or during dynamic movements of the patient.

Efficient and Safe Operation:

• Safety Features: Features a dual-leaf tungsten collimator for precise radiation control and levels contrast and brightness automatically, minimizing the need for manual adjustments.
• Enhanced Functionality: Offers pulsed fluoroscopy and fluorography modes to reduce radiation exposure while maintaining image quality, alongside digital spot mode for detailed spot imaging.

Specifications

• Generator: High frequency 60 kHz, 15 kW full-wave, capable of up to 120 kVp and 75 mA for radiographic exposures with continuous and pulsed fluoro modes.
• X-Ray Tube: Dual focal spots of 0.3 mm and 0.6 mm, with a high anode heat capacity of 300,000 HU and rapid cooling rates to support prolonged procedures.
• Collimation and Image Enhancement: Iris collimation with variable shutters, Smart Window for automatic image optimization, and a comprehensive array of fluoroscopy modes tailored to diverse surgical requirements.

Technical Details:

• Environmental Adaptability: Operates efficiently across a wide range of temperatures and is designed for high-altitude performance up to 10,000 feet.
• Imaging System: High-resolution CCD camera with full-frame capture and 360° motorized rotation, complemented by tri-mode image intensifier options for versatile imaging sizes.

The GE OEC 9800 Plus is not just an imaging system; it’s an integral tool for facilitating complex surgeries and diagnostic tasks, providing clinicians with the reliability and image quality needed for critical medical decisions.
