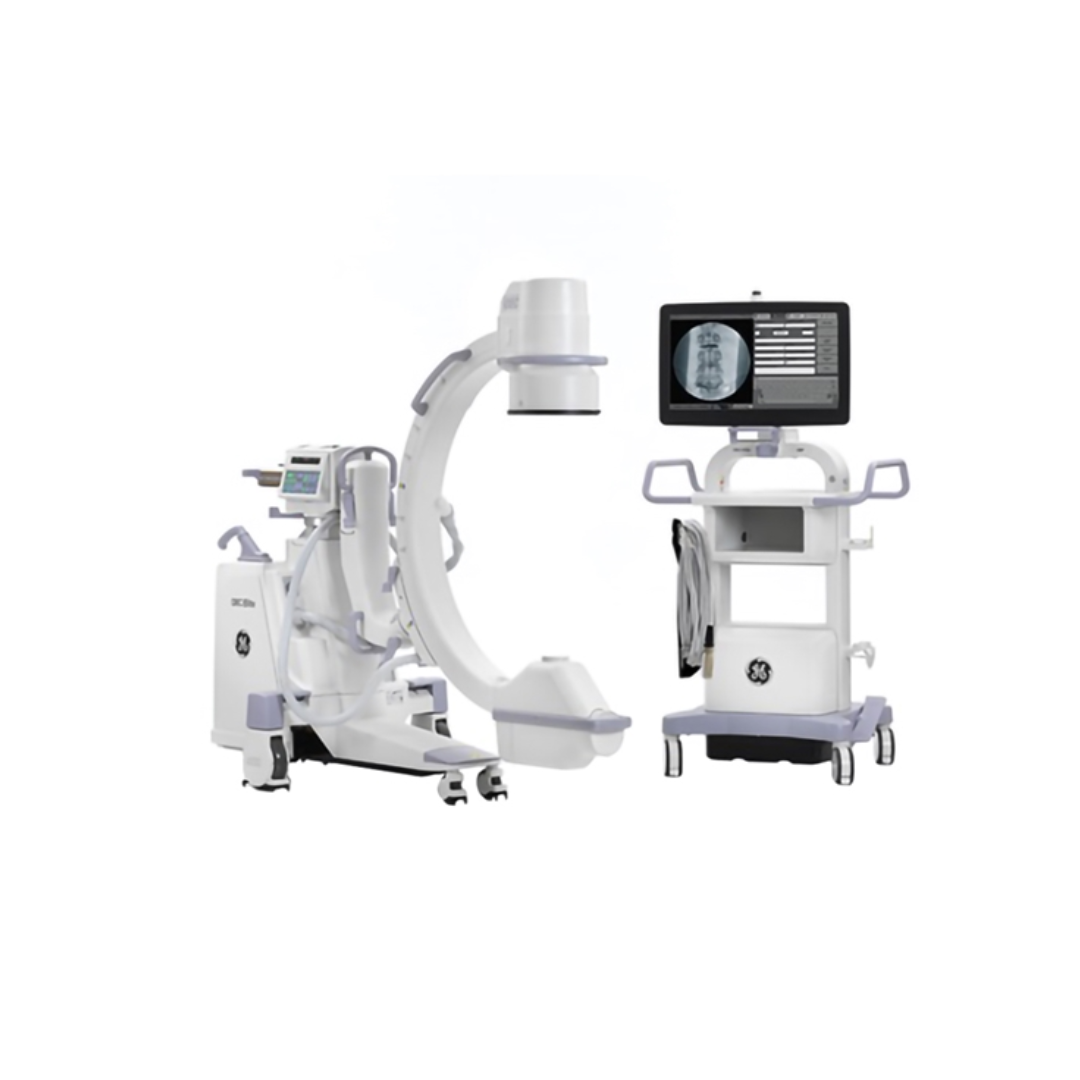

GE OEC Elite CFD – Super C Mobile C-Arm
The GE OEC Elite CFD – Super C is a premium mobile surgical imaging system featuring CMOS flat panel technology for ultra-clear imaging at low radiation doses. This advanced system is designed for vascular, orthopedic, gastrointestinal, endoscopic, urologic, neurologic, pain management, and emergency procedures, delivering unmatched image detail regardless of patient density.
Equipped with a 33-inch arc depth, the Super C-arm provides greater working space and true lateral views with ease. The 4K UHD 32-inch articulating monitor, proprietary CMOS Flat Detector (CFD), and intuitive workflow enhancements allow for seamless operation in any surgical setting.
Key Features:
-
Exceptional Image Quality with Low Dose Exposure
- Full 1.5k x 1.5k x 16-bit image processing at 30 fps for stunning clarity.
- Proprietary CMOS Flat Detector (CFD) ensures sharp anatomical details at lower radiation doses.
- Finger-removable anti-scatter grid for radiation dose reduction without image degradation.
-
Enhanced Ergonomic Design & Greater Working Space
- 33-inch arc depth offers more space for patient positioning and true lateral views.
- 55° overscan and 90° underscan provide extended imaging coverage without frequent repositioning.
- Easy rollover views improve efficiency in complex procedures.
-
4K Display & Intuitive User Experience
- Crisp 4K UHD 32-inch monitor with full articulation and 27-inch extension for optimal viewing angles.
- OEC’s simple and intuitive user interface enables smooth navigation.
- Preserves 100% of field of view (FOV) when rotated, ensuring image clarity at all angles.
-
Smart Workflow Enhancements
- SmartConnect Technology allows for C-arm disconnection/reconnection without rebooting.
- Lightweight workstation includes a convenient storage bay for printers & accessories.
- Low-profile X-ray tube minimizes obstructions, making it easier to position the system during surgery.
Specifications
General System Specifications
- Reach: 55° Overscan / 90° Underscan
- Arc Depth: 33 inches for greater working space
- True Lateral Views: Easily achieved with enhanced positioning
- Rollover Views: Effortless repositioning for complex procedures
Monitor & Workstation
- Display: 4K UHD 32-inch Articulating Monitor
- Monitor Range: Extends up to 27 inches with full motion control
- User Interface: OEC’s simple & intuitive touchscreen
- Storage Bay: Dedicated space for printers & accessories
- SmartConnect: Enables instant C-arm disconnection & reconnection without rebooting
Imaging System & Performance
- Detector: Proprietary CMOS Flat Panel Detector (CFD)
- Available CFD Sizes:
- 21 cm x 21 cm
- 31 cm x 31 cm
- Image Processing: 1.5k x 1.5k x 16-bit at 30 fps
- Fluoroscopy Mode: Smooth Continuous Fluoroscopy
- Laser Aimer: Precisely integrated for accurate targeting
- Anti-Scatter Grid: Finger-removable for low-dose optimization
- Advanced Cooling System: Ensures long-term performance
Enhanced Usability & Safety Features
- Seamless Continuous Fluoroscopy ensures smooth imaging during live procedures.
- CMOS Flat Panel Technology delivers higher resolution imaging with lower radiation exposure.
- 55° Overscan & 90° Underscan provide expanded anatomical coverage without repositioning.
- Lightweight, low-profile X-ray tube minimizes obstructions, improving surgical access.
