Getinge Maquet Datascope CS300

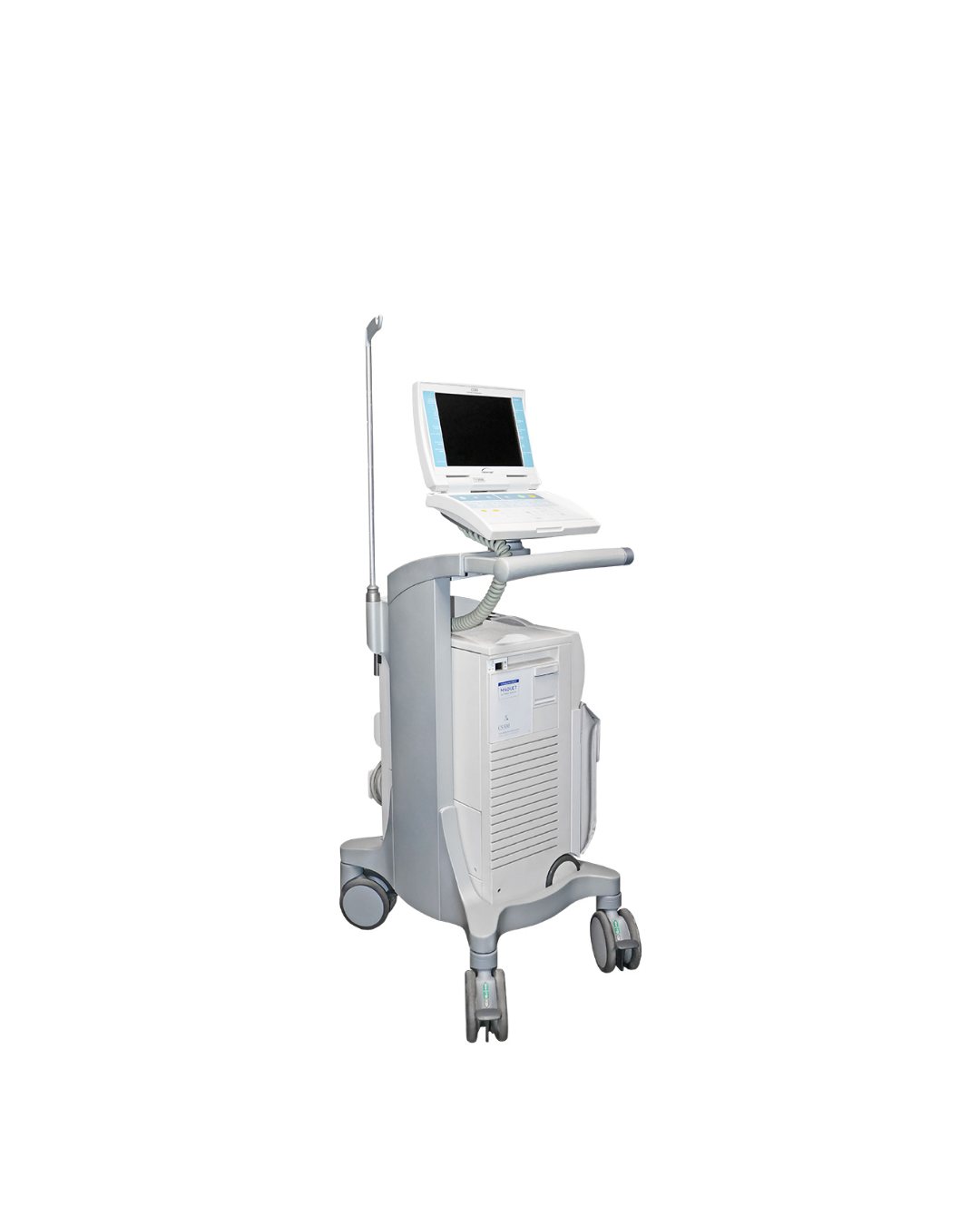

Getinge Maquet Datascope CS300 IABP with IntelliSense

The Getinge Maquet Datascope CS300 IABP redefines advanced cardiac support with its IntelliSense technology, combining fiber-optic speed and automatic in vivo calibration. Designed to rapidly acquire signals and adapt to rate and rhythm changes, this system emulates an experienced clinician by automatically selecting the optimal lead and trigger source, setting precise inflation and deflation timing, and recalibrating itself every two hours—or sooner if conditions demand. This intelligent, one-button start-up device is available with both a Maquet fiber-optic IAB catheter and a conventional fluid-filled IAB catheter, ensuring versatile and responsive support for critical patient care.

Key Points

• Fiber-Optic Speed & Automatic Calibration:
  Delivers faster therapy initiation by automatically calibrating the pressure sensor in vivo immediately after insertion and recalibrating every two hours or sooner if patient/environmental conditions change.

• IntelliSense Technology:
  Emulates an experienced user by automatically evaluating and selecting the best lead and trigger source, setting optimal inflation/deflation timing, and allowing manual fine-tuning when necessary.

• Rapid Inflation/Deflation & One-Button Start-Up:
  Ensures quick adaptation to rate and rhythm changes, providing faster inflation and deflation speeds for optimal diastolic support.

• Versatile Catheter Options:
  Compatible with both Maquet fiber-optic and conventional fluid-filled IAB catheters, offering flexibility for varied clinical requirements.

• Automatic Adaptation:
  Continuously adjusts to changes in patient conditions without the need for constant clinician intervention, streamlining critical care workflows.

Specifications

• Dimensions:

  • Size on Cart: 43.1” H x 22.3” D x 16.8” W (109 cm H x 56.6 cm D x 42.7 cm W)
  • Size off Cart: 26.9” H x 20.5” D x 10.8” W (68.3 cm H x 52.1 cm D x 27.4 cm W)

• Weights:

  • Console Weight: 84.8 lbs (38.4 Kg) nominal (includes S.D., CRM, and He tank)
  • Monitor Weight: 9.5 lbs (4.3 Kg) nominal
  • Hospital Cart Weight: 52.4 lbs (23.8 Kg) nominal
  • Internal Battery: 34 lbs (15.4 Kg) nominal
  • Storage Bag: 4.6 lbs (2.1 Kg) nominal (includes Doppler and holder)

• Display:

  • Color TFT LCD: 8.3” (21 cm) W x 6.2” (15.8 cm) H; adjustable viewing angles with rotation (up to 330°) and tilt (up to 180°); detachable with a laptop-like closure for secure storage; optional remote monitor mount.

• Trigger System:

  • ECG Trigger: Dynamically adjusts thresholds for high sensitivity in R-wave detection.
  • Pressure Trigger: Automatically set to 38% of the systolic pulse height with a minimum threshold of 7 mmHg; also features a manual mode adjustable between 7 and 30 mmHg.
  • Pacer Triggers:
    • Pacer A Trigger: Enhanced R-wave detection with extended pacer blanking of 100 ms.
    • Pacer V/A-V Trigger: Offers fixed rates up to 185 bpm (V Pacer) and up to 125 bpm with A-V intervals between 80–224 ms (A-V Pacer).

• Power:

  • Mains Voltage: 100–120 VAC ± 10% or 220–240 VAC ± 10%
  • Frequency: 50/60 Hz ± 3 Hz
  • Internal Battery: 24 VDC nominal, 17.2 Amp-hour capacity (approximately 3 hours operation at 90 bpm); maintenance-free, sealed lead-acid.

• Pressure Output:

  • Range: 0 to +300 mmHg (electrically isolated)

• Operating Environment:

  • Temperature: 10°C – 40°C
  • Humidity: 5 – 95% (non-condensing)
  • Altitude: 0 – 12,000 feet with automatic altitude correction for IAB pressure

• ECG Parameters:

  • Leads:
    • Auto Mode: Supports leads I, II, III, and External
    • Semi-Auto Mode: Supports leads I, II, III, AVR, AVL, AVF, V, and External (compatible with 12-lead systems)
  • Gain & Frequency Response:
    • Default ECG gain: 1 V per 1 mV input ±5% (with automatic waveform scaling)
    • Variable gain range: 0.15 to 3.0 cm/mV ±20%
    • Frequency response: 0.5–12 Hz (display) and 0.5–135 Hz (output to external monitor)
  • Defibrillator Protection: Ensures safe operation with a discharge level of 360 J and rapid recovery of the trace.
