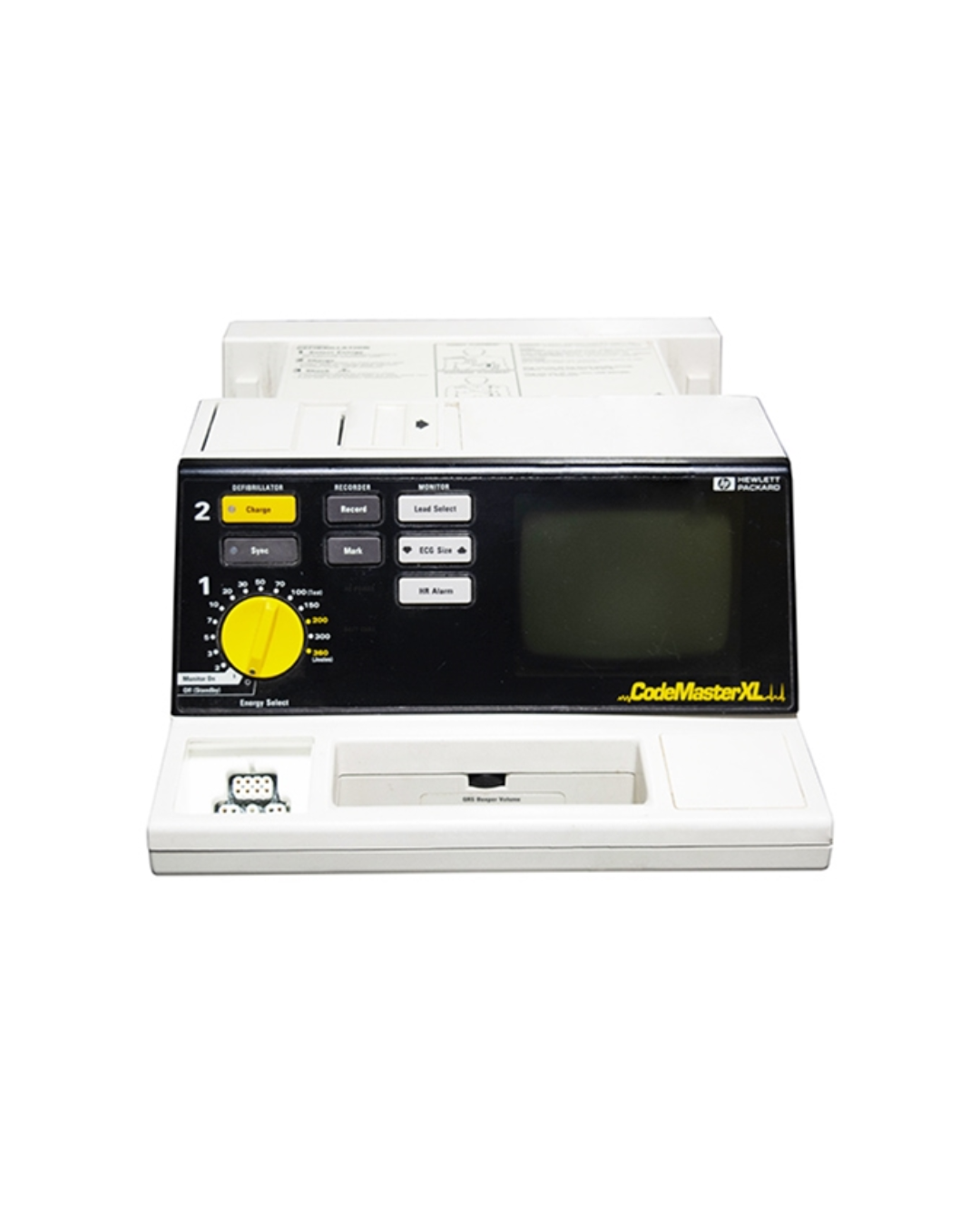

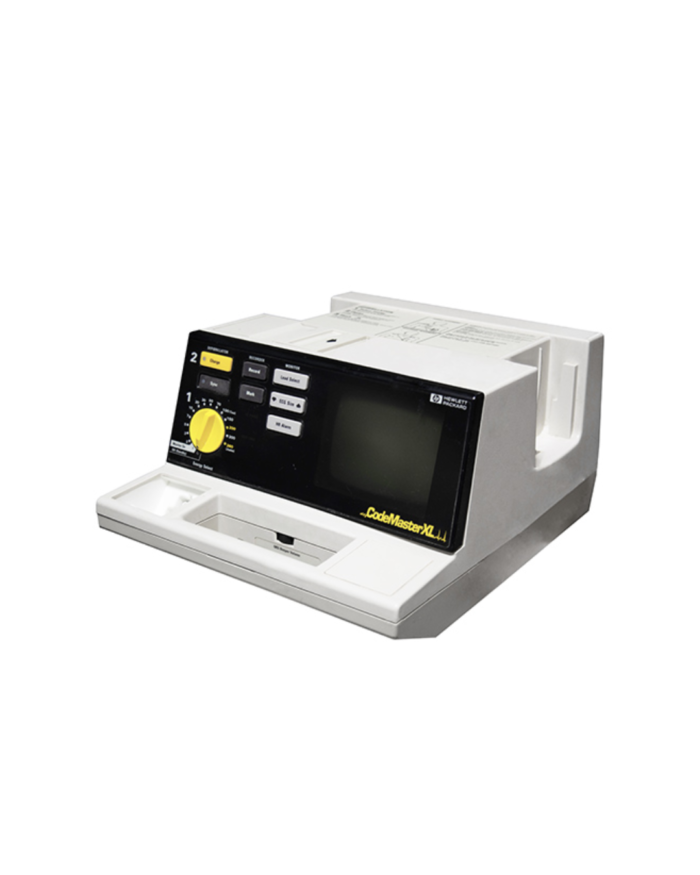

HP Codemaster XL Defibrillator

HP Codemaster XL Defibrillator and Recorder

The HP Codemaster XL combines defibrillation, ECG monitoring, and an annotated recorder into a high-performance, hands-off defibrillation unit. With multi-functional electrodes that support both pacing and defibrillation using the same pads, this system provides rapid, reliable treatment for both pediatric and adult patients. Its easy 1-2-3 operation and built-in diagnostics ensure a speedy response in emergencies, while the system’s high-capacity battery and fast charge capability (0 to 360 joules in under 5 seconds with battery) make it an ideal choice in critical care settings. Additionally, the Codemaster XL stores up to 28 events in its memory and features a bright 5-inch screen that displays vital patient information at a glance.

HP Codemaster XL Key Features

• Multi-Functional Operation:

  • Integrates a defibrillator, cardio scope, and annotated recorder into one device.
  • Uses the same pads for both pacing and defibrillation.
  • Built-in pediatric paddles under slide-off adult paddles provide versatile electrode options.

• Rapid and Efficient Defibrillation:

  • 1-2-3 operation simplifies use in emergencies.
  • Charges from 0 to 360 joules in less than 5 seconds with a high-capacity rechargeable battery.
  • Charge control via push-buttons on both the apex paddle and the front panel.

• Comprehensive Monitoring & Recording:

  • Digital and analog displays provide ECG views via paddles or patient cables, with selectable leads.
  • Three preset pairs of heart rate alarms ensure timely alerts.
  • A 5-inch CRT displays 4 seconds of ECG data with selectable scrolling trace.
  • The thermal array recorder automatically documents pre- and post-event data, annotating critical parameters such as time, date, heart rate, defibrillator mode, and energy delivered.

• Enhanced Safety Features:

  • Optional paddle contact indicator (3-color LED bar graph) assesses electrode contact quality.
  • Integrated alarm systems alert for issues like low battery, occlusion, and lead disconnections.
  • Built-in diagnostics and advisory modes further safeguard against errors.

HP Codemaster XL Detailed Specifications

Physical Specifications

• Dimensions:
  • Height: 7.9 in (20 cm)
  • Width: 11.8 in (30 cm)
  • Depth: 15.6 in (39.7 cm)
  • Weight: 24 lb (10.9 kg)

Defibrillator

• Waveform: Damped sinusoidal (Lown)
• Output Energy Options: 2, 3, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, and 360 joules
• Charge Control:
  • Operated via push-button on apex paddle and front panel
  • Charge Time: <5 seconds to 360 joules with battery; <15 seconds on AC
• Armed Indicators: Charge done tone, lamp on apex paddle, and available energy on the display
• Paddle Features:
  • Standard anterior/anterior adult paddles that slide off to reveal pediatric electrodes
  • 10 ft (3 m) paddle cord; optional paddle contact indicator via 3-color LED bar graph

Monitor & Recorder

• ECG Inputs:
  • View ECG via paddles or patient cable; selectable leads including I, II, III, aVR, aVL, aVF, and V Leads
  • “Leads Off” message with dashed baseline alerts when disconnections occur
• Display:
  • 5-inch diagonal CRT providing 4 seconds of ECG data; non-fade, fixed trace with selectable scrolling
  • Sweep Speed: 25 mm/sec; Frequency Response: 0.5 to 40 Hz
• Heart Rate:
  • Digital readout from 15 to 300 BPM with three preset high/low alarm pairs (configurable options available)
• Thermal Array Recorder:
  • Stores 3 seconds pre- and 8 seconds post-event data for up to 28 events
  • Annotates critical event data including time, date, HR, defibrillator mode, selected and delivered energy, peak current, and patient impedance
  • Configurable recorder mode: real-time or with a 6-second delay

Battery

• Type: Rechargeable sealed lead-acid battery (4 Ah, 12 V nominal)
• Charge Time: 2 hours to 90% capacity; 18 hours to 100% capacity
• Capacity:
  • Provides up to 2 ½ hours of monitoring or 50 full-energy discharges, or 1-hour monitoring/recording
• Battery Indicators: Illuminated LED indicates charging; a LOW BATTERY message is displayed when capacity is limited

Optional Modules

• External Pacemaker:
  • Current Pulse Amplitude: 10 mA to 200 mA
  • Pulse Width: 20 msec; Rate: 40 to 180 ppm; Modes: Demand or fixed; Refractory Period: 340 msec or 240 msec based on rate range
• SpO₂ Module (Optional):
  • Measurement Range: 0 to 100%
  • Accuracy: ±2.5% (65-80%) and ±1.5% (80-100%); Resolution: 1%; Averaging: 8 beats; Alarm settings configurable
• Advisory Mode (Optional):
  • Analysis Time: 7-10 seconds; Default energy protocols: 200J, 200J, 360J; Push-button analysis control; Armed indicators and event summary for ~200 events and 50 ECG strips; Charge Time: <5 seconds on battery, <15 seconds on AC
• Waveform: Damped sinusoidal (Lown)
