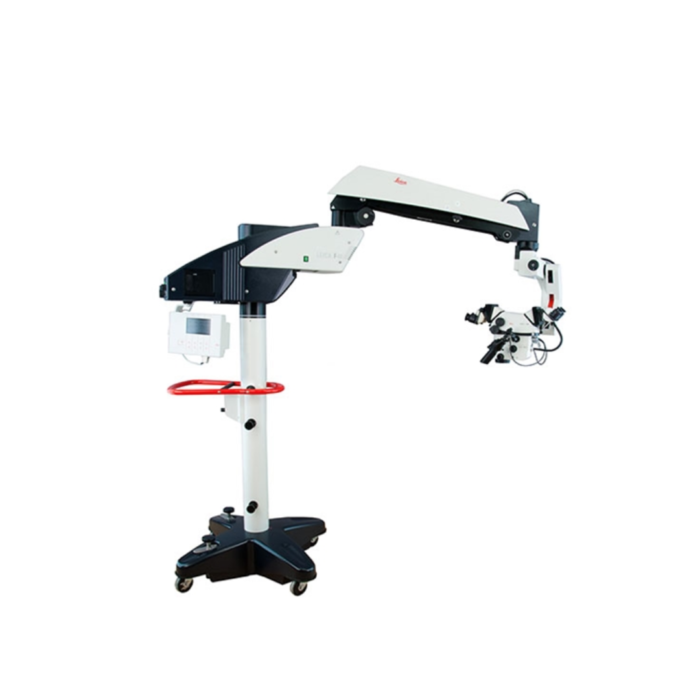

Leica M520 on F40 Stand

Leica M520 on F40 Stand Surgical Microscope

The Leica M520 surgical microscope is designed for precision, flexibility, and enhanced optical performance. Mounted on the compact and stable F40 stand, this microscope provides exceptional maneuverability while requiring minimal floor space. It is engineered for a wide range of surgical applications, featuring a 470mm extended working distance, 30% increased depth of field, and high-contrast imaging compared to its predecessors.

With programmable handgrips, an ergonomic design, and a dual light source system, the Leica M520 allows for seamless operation in the operating room. The F40 stand enables smooth positioning with an adjustable suspension arm, user-configurable controls, and an advanced lighting system to support a clear and stable view throughout surgical procedures.

Key Features

• Compact and stable base designed to fit around an operating table with ease
• Extended 470mm working distance for greater procedural flexibility
• 30% increased depth of field and higher image contrast for improved visualization
• Ergonomic surrounding grip for easy handling and precise control
• Suspension arm system for effortless positioning and smooth movements
• Smooth zoom and focus adjustments, with customizable displacement speeds
• Programmable buttons on handgrips for quick access to preferred settings
• Control unit with LCD screen offering up to 8 user-specific configurations
• Dual illumination system with a 300W Xenon lamp for primary lighting and a 150W halogen backup lamp

Optical and Functional Specifications

• Zoom range: 1.2x to 12.8x
• Eyepiece magnification: 10x for both primary and assisting surgeon
• Binocular tubes: Inclinable from 30° to 150° for both doctor and assistant
• Objective lens: Multifocal lens with a focal range of 207 mm to 470 mm
• Fiber optic light source for uniform illumination
• Backup lamp module for continued operation in case of failure

Dimensions and Power

• Height: Adjustable between 76.38 in – 93.7 in (194 cm – 238 cm)
• Maximum lens-to-column distance: 55.12 in (140 cm)
• Base size: 26.77 in x 26.77 in (68 cm x 68 cm)
• Weight: Approximately 627.29 lb (280 kg)
• Power supply: 100/240 V, 50-60 Hz

The Leica M520 on the F40 stand is a versatile and high-performance surgical microscope designed for enhanced visualization, ergonomic handling, and seamless adaptability in surgical environments. Its advanced optics, smooth maneuverability, and reliable lighting system make it an ideal choice for demanding surgical applications.
