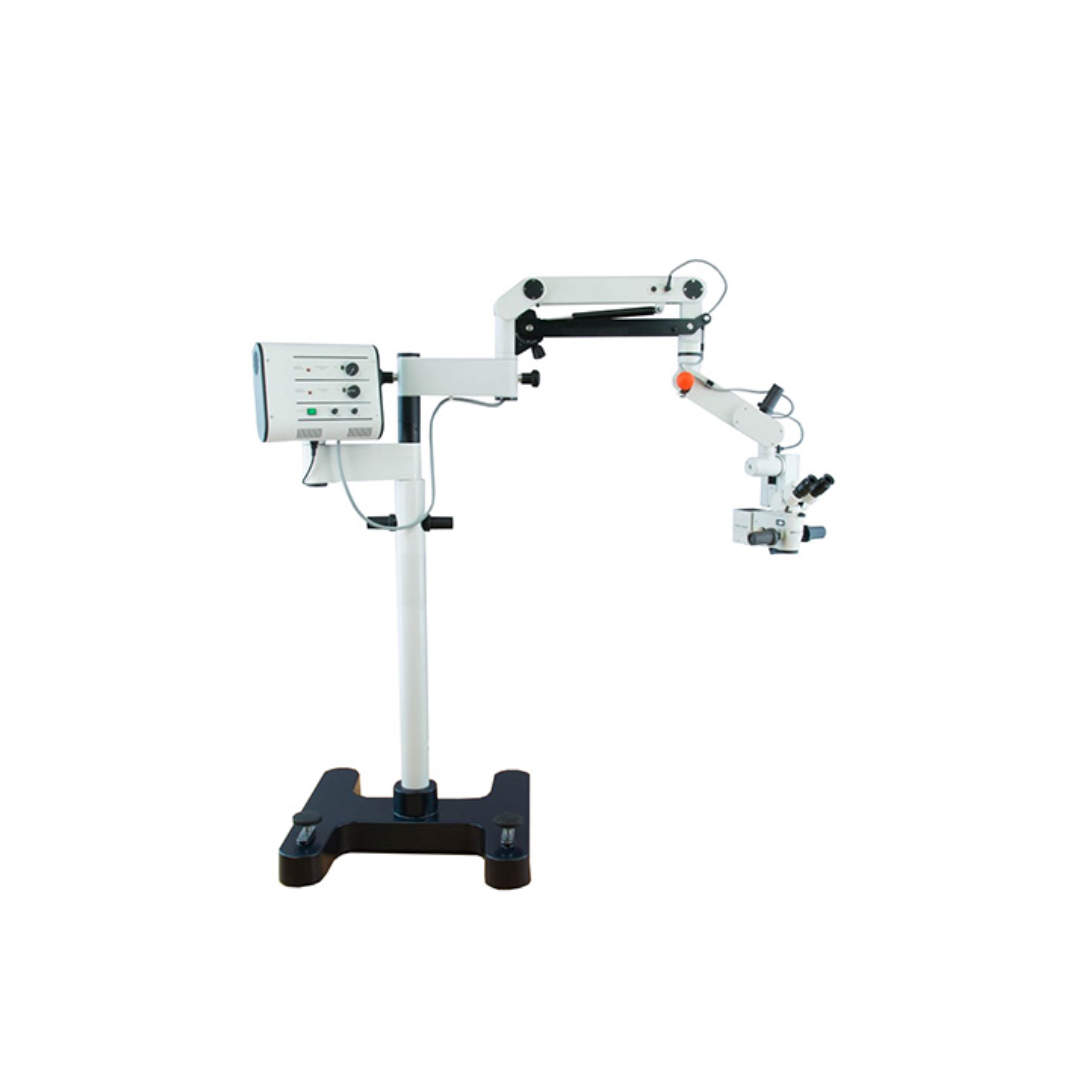

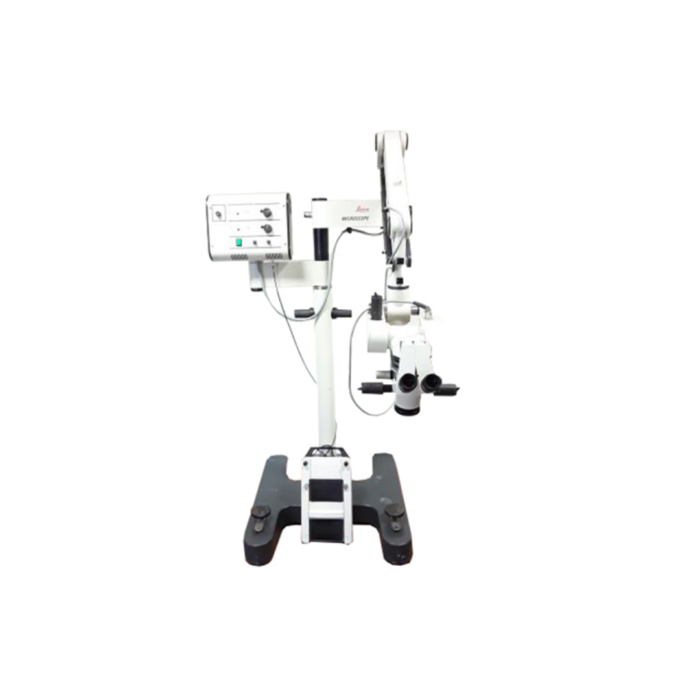

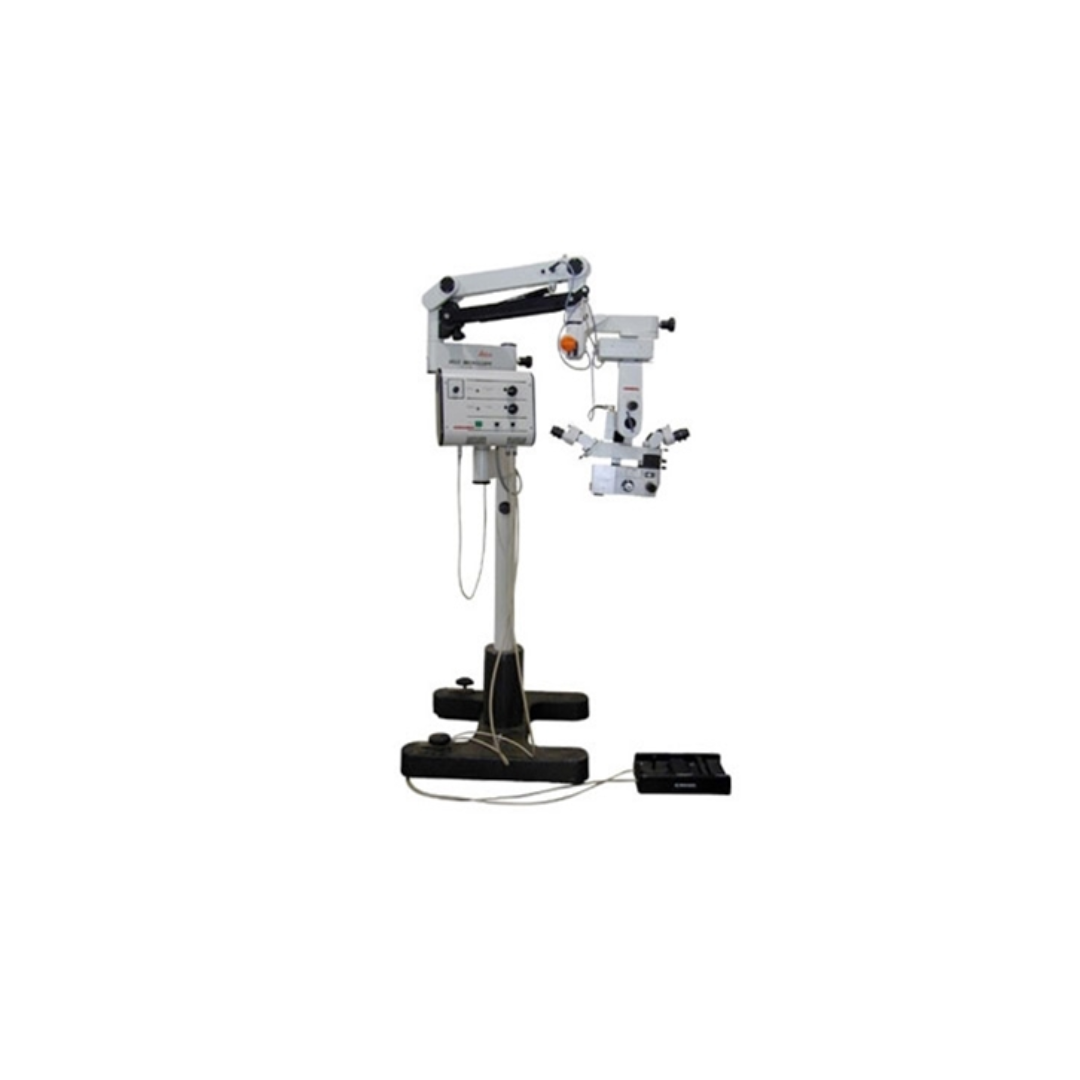

Leica Wild M690 Surgical Microscope
The Leica Wild M690 is a high-performance ophthalmic surgical microscope designed for detailed, high-contrast imaging with precise motorized controls. Featuring a 1:5 zoom magnification changer and motorized focusing system, the M690 ensures sharp optical views, excellent depth of focus, and red reflex enhancement, making it a trusted solution for eye surgeries.
The Leica Wild M690 includes built-in illumination technology, linking magnification to the field of view, ensuring bright and uniform lighting across all magnification levels. It also features a dual halogen bulb system, providing an instant backup in case of failure, ensuring uninterrupted procedures.
Mounted on a stable MSC stand with locking brakes and adjustable spring tension, the M690 offers easy maneuverability and secure positioning during surgery. The electronic foot control system allows surgeons to adjust zoom, focus, and XY positioning hands-free, enhancing workflow efficiency and precision.
Key Features
- Leica optics for sharp, high-contrast imaging
- 1:5 motorized zoom magnification, allowing smooth magnification changes
- Motorized focus system with 50mm travel range for precise adjustments
- Red reflex enhancing objective lens for superior eye surgery visualization
- Binocular 0-180° inclinable head with 10×21 widefield eyepieces
- Dual halogen illumination system (12V/50W) with instant backup for uninterrupted procedures
- Manual override of motorized zoom for added flexibility
- Tiltable joint for varying optical angles, ensuring optimal positioning
- XY joystick foot control for smooth microscope movement
- Electronic speed control for zoom, focus, and XY adjustments
Optical and Functional Specifications
- Zoom Adjustment: 2x to 14x
- Magnification of Eyepieces: 10x
- Objective Lens: f = 300mm (with red reflex enhancer)
- Pupillary Distance: 55mm – 75mm
- Focus Range: Motorized, 50mm travel
- Binocular Options: 0-180° inclinable (alternative: 10-50°)
- Filter: Standard UV
- Illumination: Dual 12V/50W halogen system with rheostat adjustment
Stand and Mobility
- MSC Stand with a stable, movable base
- Adjustable spring tension for arm rotation
- Locking brakes for secure positioning
- Oversized casters for smooth movement
- Side handles for easy maneuverability
Power and Electrical Specifications
- Power Supply: 115V / 230V, 50-60Hz
- Emergency Lamp: 12V/50W halogen backup
- Electronic foot control with detachable cord for hands-free adjustments
The Leica Wild M690 is a reliable, high-precision surgical microscope, ideal for ophthalmic procedures requiring superior optics, motorized precision, and stable illumination. Its adjustable ergonomics and smooth movement capabilities make it a top choice for eye surgeons.
