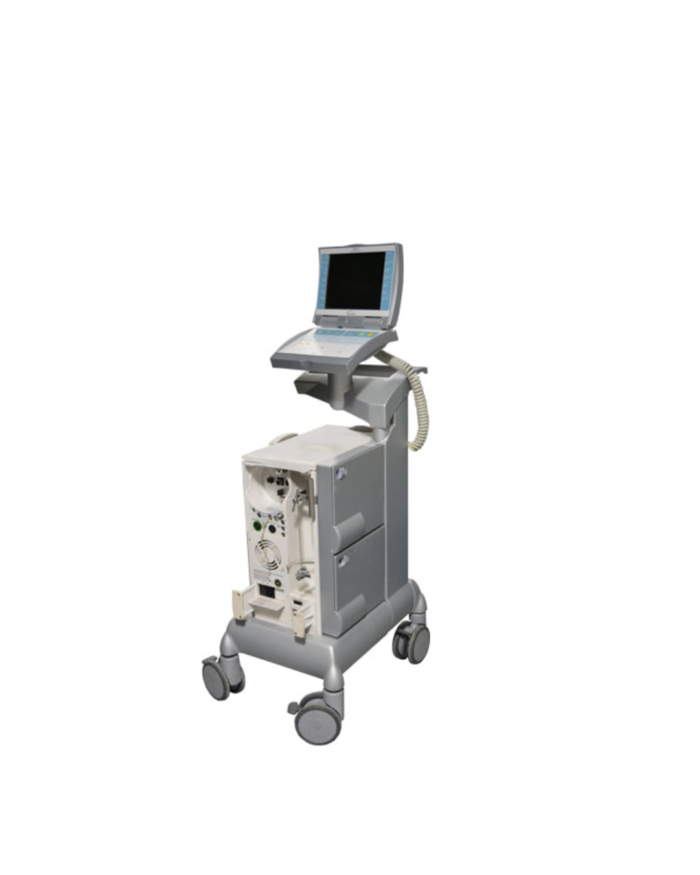

Maquet Datascope CS100

Maquet CS100 IABP with Intellisync

The Maquet CS100 IABP is an advanced intra-aortic balloon pump that integrates the latest Intellisync software for superior performance in critical care environments. Whether used in an operating room, catheter lab, or intensive care unit, this system adapts automatically to changing patient conditions and provides reliable circulatory support. With three operation modes—Automatic, Semi-Automatic, and Manual—the CS100 offers flexible, one-button start-up and intuitive control, ensuring rapid, consistent support during emergency and routine procedures alike. Its foldable, detachable laptop-style display with full-color high-contrast visuals enhances remote monitoring and ease of use, making it a smart solution for today’s demanding clinical settings.

Key Points

• Advanced Intellisync Software:
  Features the latest updated software for seamless performance and automatic adaptation to patient rhythm changes.

• Versatile Operation Modes:
  Offers Automatic, Semi-Automatic, and Manual modes, allowing caregivers to switch effortlessly based on clinical needs.

• One-Button Start-Up:
  Quickly initiates 1:1 assist with an automatic autofill process, ensuring timely support.

• Optimized Triggering System:
  Automatically evaluates and selects the optimal trigger source and lead, setting inflation at the dicrotic notch and deflating at the start of systole.

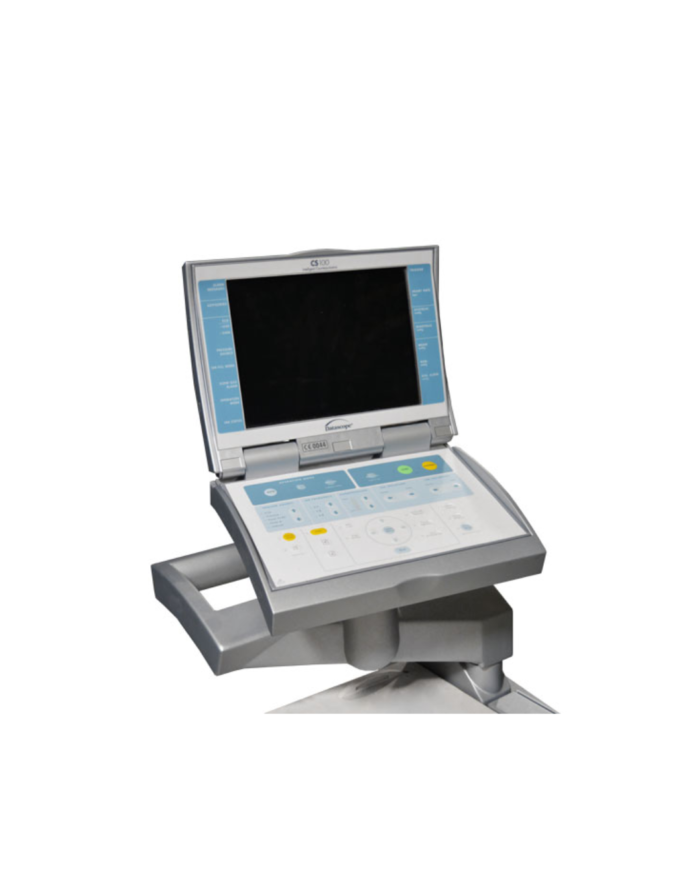

• User-Friendly Display:
  The foldable and detachable laptop-style display provides full-color, high-contrast visuals and customizable options for sweep speed, brightness, and waveform markers.

• Secure and Durable Design:
  Equipped with locking casters and a robust build, ensuring stability in various settings while offering fully annotated printouts with user-configurable strip lengths.

• Flexible Connectivity:
  The easy-to-use keypad and intuitive interface facilitate remote operation and rapid adjustments during patient care.

Specifications

• Dimensions:

  • General (On/Off Cart):
    • Height: 30 in (76.2 cm)
    • Width: 22.5 in (57.2 cm)
    • Depth: 13.2 in (33.5 cm)
  • On Cart:
    • Height: 42.2 in (114.8 cm)
    • Width: 17.6 in (44.7 cm)
    • Depth: 23.4 in (59.4 cm)
  • Off Cart:
    • Height: 28.2 in (71.6 cm)
    • Width: 11.3 in (28.7 cm)
    • Depth: 21.5 in (54.6 cm)

• Weight:

  • Monitor Weight: 9.5 lb (4.3 kg)
  • Console Weight: 133.2 lb (60.4 kg)

• Color Display:

  • Size: 8.3 in (21 cm) wide x 6.2 in (15.8 cm) high
  • Viewing Angles: Up 45°, Down 55°, Right 70°, Left 70°; rotates 330° and tilts 180°
  • Feature: Detachable laptop-like closure for secure storage and protection

• Power:

  • Mains Voltage: 100-120 VAC ± 10% or 220-240 VAC ± 10%
  • Mains Frequency: 50/60 Hz ± 3 Hz
  • Internal Battery: 24 VDC (nominal), 17.2 Amp-hour, approx. 3 hours at 90 bpm; maintenance-free, sealed lead-acid

• General Information:

  • ECG Gain (default): 1 V output per 1 mV input ±5% (autoscaled)
  • Variable Gain: 0.15 to 3.0 cm/mV ±20% (autoscaling disabled)
  • Frequency Response: 0.5-12 Hz (display); 0.5-135 Hz (output to monitor)
  • Defibrillator Protection: Discharge levels of 360 J with trace recovery in 5 seconds

• Operating Conditions:

  • Temperature: 10°C – 40°C
  • Humidity: 5 – 95% (non-condensing)
  • Altitude: 0 – 12,000 feet (3,657 m) with automatic altitude correction for IAB pressure

• Operating Modes & Triggering:

  • ECG Trigger: Dynamically adjusts threshold for high sensitivity R-wave detection; minimum = 120µV ± 20µV (normal gain) and 40µV (max gain)
  • Pressure Trigger: Default threshold set to 38% of the difference between peak systolic and end-diastolic pressures; variable mode adjustable between 7 and 30 mmHg ± 3 mmHg
  • Pacer A Trigger: Similar to ECG trigger with an extended pacer blanking of 100 ms
  • Pacer V/A-V Trigger:
    • V Pacer: Fixed rate up to 185 bpm (no demand pacing)
    • A-V Pacer: Fixed rate up to 125 bpm with A-V intervals of 80-224 ms (no demand pacing)
  • Internal Trigger: Variable mode range of 40-120 bpm; normal mode at 80 ± 1 bpm
  • Tall T-Wave Rejection: Rejects T-waves with Q-T intervals <300 ms and amplitudes <70% of the QRS input amplitude
  • Pacer Rejection: Rejects pulses within specified amplitude (±2.0 mV to ±700 mV) and duration (0.1 ms to 2.0 ms) parameters
