Maquet Datascope CS100i

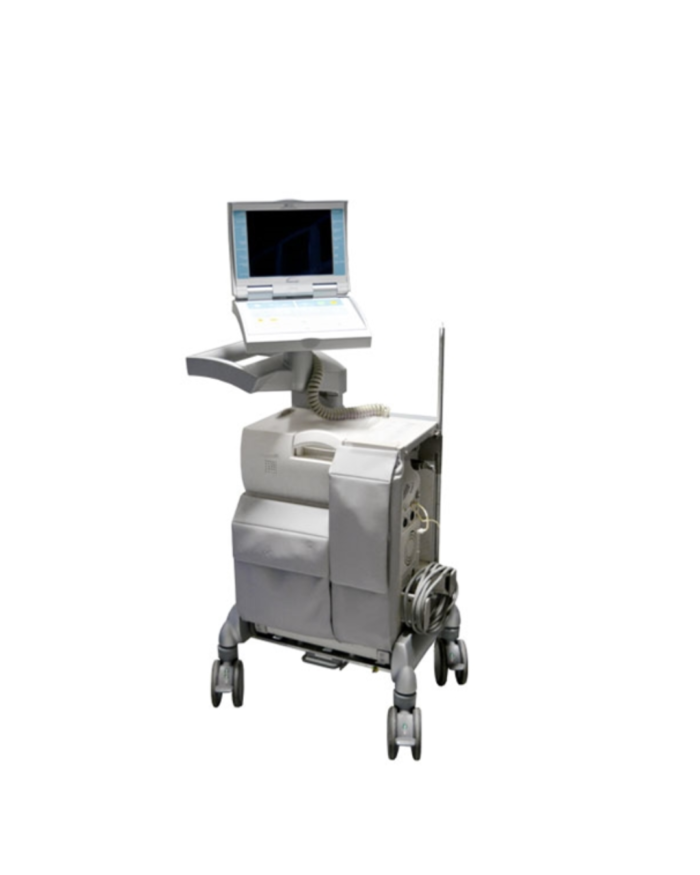

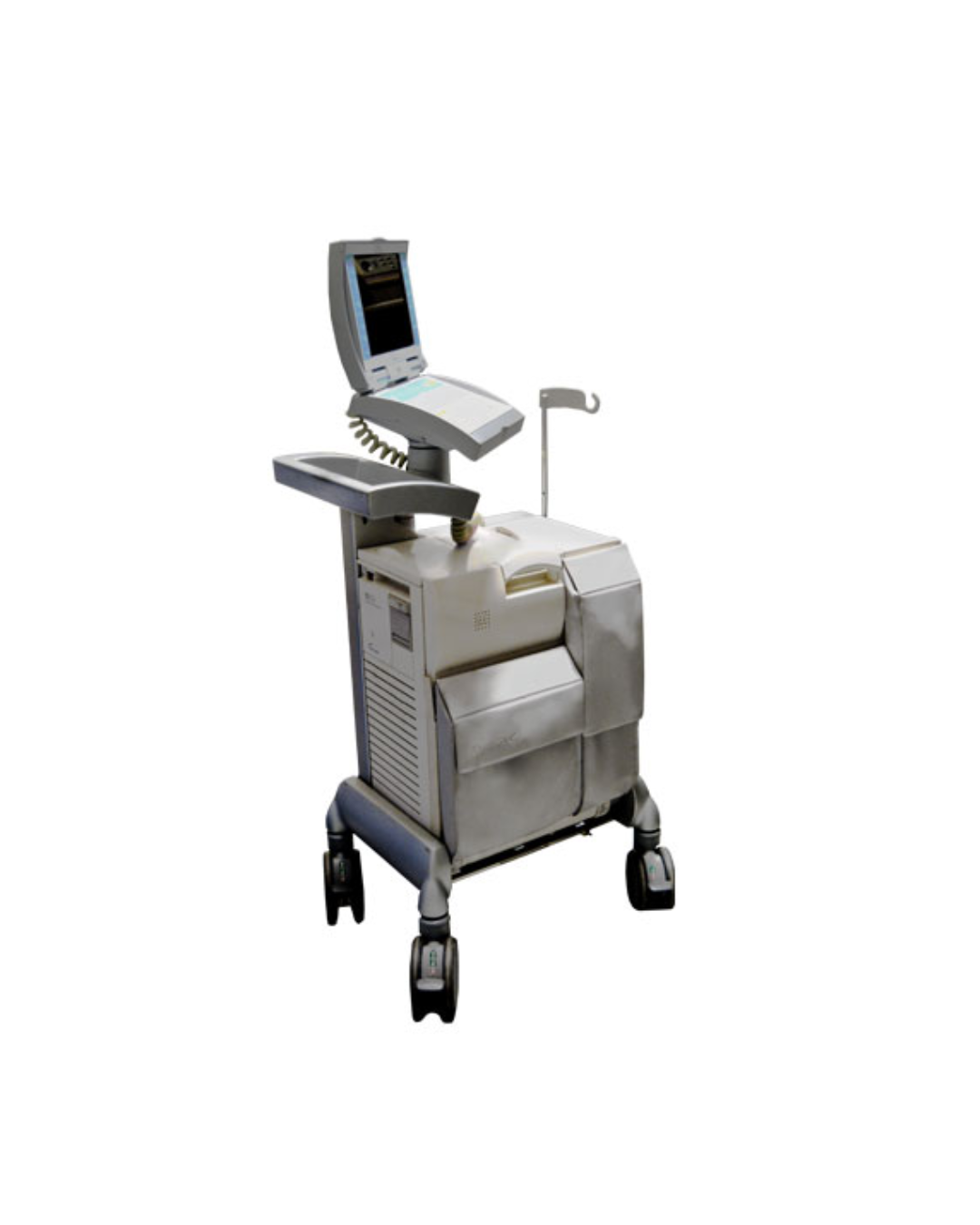

Maquet Datascope CS 100i

The Maquet Datascope CS 100i is an advanced intra-aortic balloon pump (IABP) that incorporates the latest Intellasync software and updated hardware for superior performance. Building on the trusted Datascope 90 series, the CS 100i is designed for use in operating rooms, catheter labs, and critical care settings. With its three versatile operating modes—Automatic, Semi-Automatic, and Manual—this system adapts seamlessly to varying patient conditions, ensuring optimal trigger selection and precise timing. Its intelligent automation and customization capabilities provide continuous, consistent support, making it an indispensable tool in modern cardiac care.

Key Points

• Intellasync Software Integration:
  Automatically evaluates and selects the optimal trigger source and lead, ensuring inflation at the dicrotic notch and deflation at the start of systole.

• Versatile Operating Modes:
  Switch easily between Automatic, Semi-Automatic, and Manual modes to tailor support to the patient’s needs.

• Adaptive Triggering:
  Responds to changes in signal quality by automatically selecting a new trigger source, providing continuous and reliable support.

• Customizable and Flexible:
  Suitable for various clinical environments, with features that can be tailored to fit specific procedural requirements.

Specifications

• Dimensions:

  • General:
    • Height: 30 in (76.2 cm)
    • Width: 22.5 in (57.2 cm)
    • Depth: 13.2 in (33.5 cm)
  • On Cart:
    • Height: 42.2 in (114.8 cm)
    • Width: 17.6 in (44.7 cm)
    • Depth: 23.4 in (59.4 cm)
  • Off Cart:
    • Height: 28.2 in (71.6 cm)
    • Width: 11.3 in (28.7 cm)
    • Depth: 21.5 in (54.6 cm)

• Weights:

  • Monitor Weight: 9.5 lb (4.3 kg)
  • Console Weight: 133.2 lb (60.4 kg)

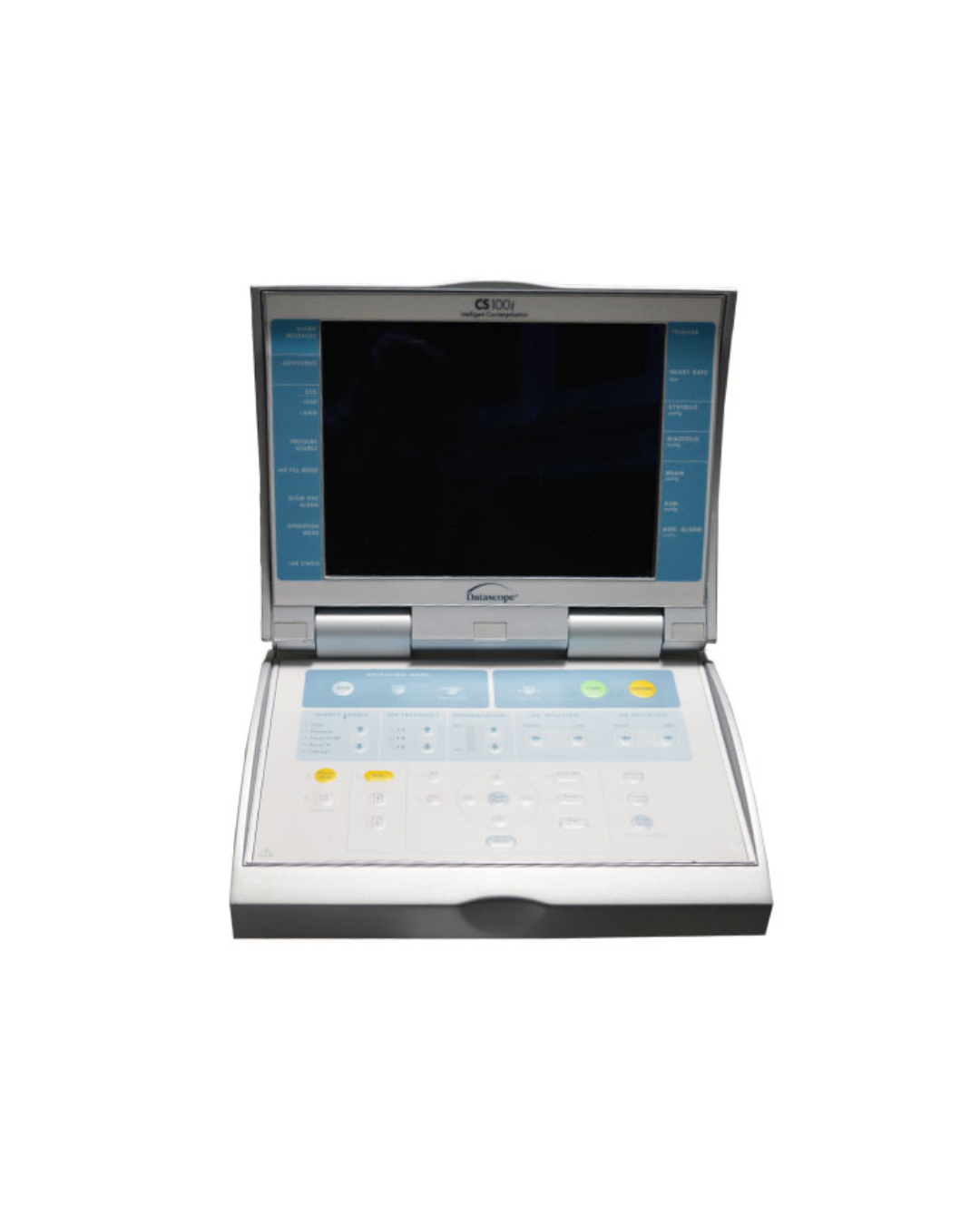

• Color Display:

  • Size: 8.3 in (21 cm) width x 6.2 in (15.8 cm) height
  • Viewing Angles: Up 45°, Down 55°, Right 70°, Left 70°; rotates 330°; tilts 180°
  • Feature: Detachable laptop-like closure for secure storage and protection

• Power:

  • Mains Voltage: 100-120 VAC ±10% or 220-240 VAC ±10%
  • Mains Frequency: 50/60 Hz ±3 Hz
  • Internal Battery: 24 VDC (nominal), 17.2 Amp-hour, approx. 3 hours at 90 bpm
  • Battery Type: Maintenance-free, sealed lead-acid

• General Information:

  • ECG Gain (default): 1 V per 1 mV ±5% (automatically scaled to fit the ECG display window)
  • Variable Gain: 0.15 to 3.0 cm/mV ±20% (with autoscaling disabled)
  • Frequency Response: 0.5-12 Hz (display); 0.5-135 Hz (output to monitor)
  • Defibrillator Protection: 360 J discharge levels with trace recovery within 5 seconds

• Operating Conditions:

  • Temperature: 10°C – 40°C
  • Humidity: 5 – 95% (non-condensing)
  • Altitude: 0 – 12,000 feet (3,657 m) with automatic altitude correction for IAB pressure
