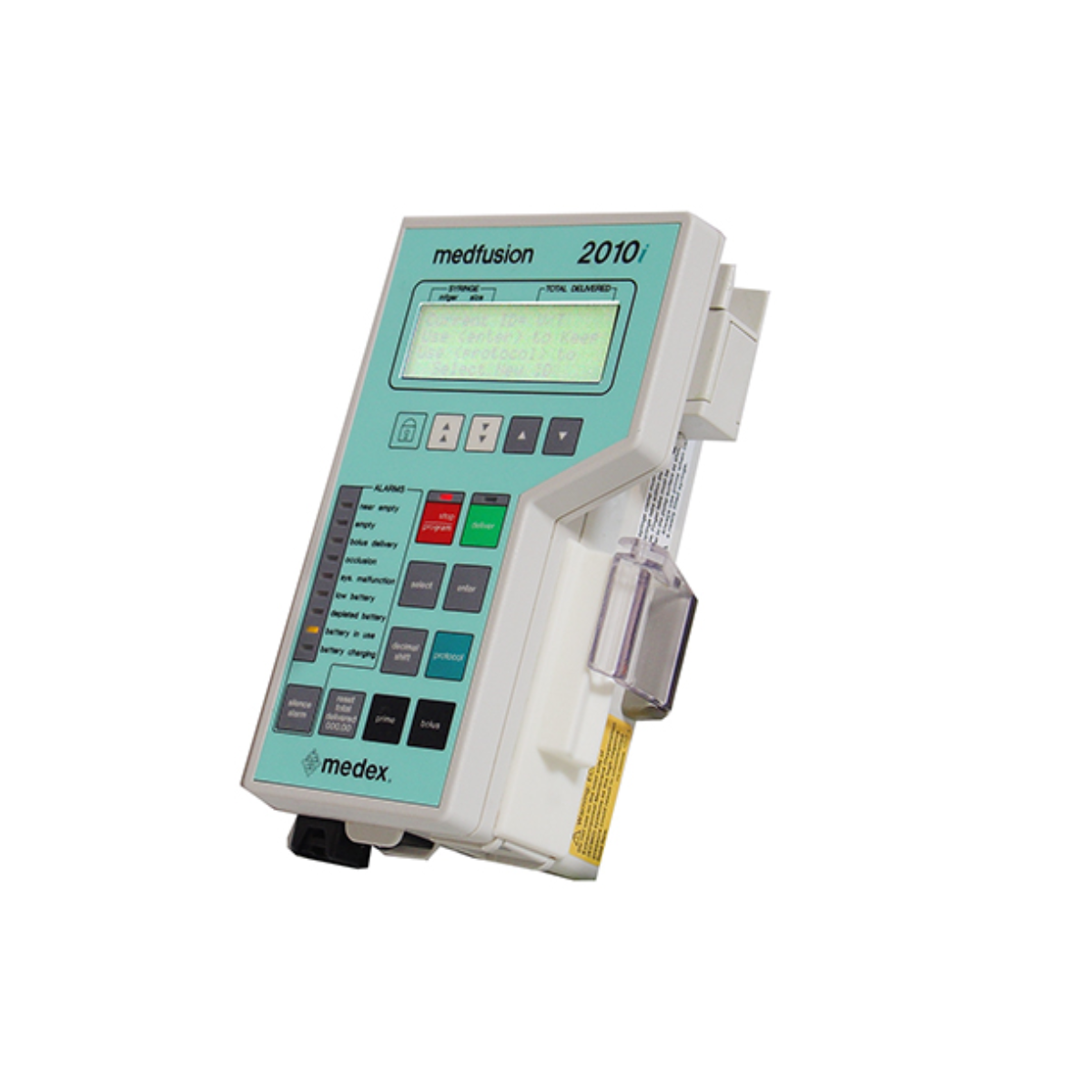

Medfusion 2010i Infusion Pump

The Medfusion 2010i is an ambulatory syringe pump designed for precise, low-volume drug delivery in a variety of clinical settings. It offers four distinct infusion modes—Body Weight Mode, Mass Mode, Continuous Mode, and Volume Over Time Mode—to tailor therapy to specific patient needs. With the capacity to store up to 64 user regimens, the 2010i can be customized for a wide range of applications, ensuring accurate dosing whether you’re delivering medication continuously or via bolus.

Key features include:

• Versatile Delivery Options:

  • Choose from Body Weight, Mass, Continuous, or Volume Over Time modes to match the therapeutic requirements of each patient.

• Flexible Flow Rates:

  • Provides infusion rates from 0.1 to 378.0 mL/hr, dependent on the syringe size selected.

• High Accuracy & Automatic Sensing:

  • Delivers with an accuracy of ±3% (excluding syringe variations).
  • Automatically senses syringe size, barrel placement, and plunger position, ensuring that every syringe is filled to its maximum capacity.

• Broad Syringe Compatibility:

  • Accepts syringes from Becton Dickinson, Monoject, Terumo, and B-D Glass in sizes ranging from 1 mL to 60 mL.

• User-Friendly Operation:

  • Features an intuitive interface and clear display for straightforward programming and administration.
  • Optional 220-volt AC charger available for global usability.

• Robust and Reliable:

  • Designed for ambulatory use, offering the flexibility needed for various patient care environments.

Specifications:

• Dimensions:

  • Height: 3 in
  • Width: 4.5 in
  • Length: 7.5 in
  • Weight: 2.5 lbs

• Flow Rate Range:

  • 0.01 to 378.0 mL/hr (dependent upon the syringe size selected)

• Accuracy:

  • ±3% (excluding syringe variations)

• Syringe Options:

  • Becton-Dickinson (B-D): 1, 3, 5, 10, 20, 30, 60 mL (plastic)
  • Monoject: 1, 3, 6, 12, 20, 35, 60 mL
  • Terumo: 1, 3, 5, 10, 20, 30, 60 mL
  • B-D Glass: 1, 3, 5, 10 mL

• Power:

  • Operates on an AC adapter or internal battery; optional 220-volt AC charger available for worldwide use.
  • Recharge Time: Up to 16 hours (with the pump turned off)

• Infusion Modes:

  • Body Weight Mode, Mass Mode, Continuous Mode, and Volume Over Time Mode

• Alarms/Alerts:

  • Alerts for near empty, empty, volume limit reached, occlusion, system malfunction, low battery, depleted battery, syringe not loaded, check clutch, invalid syringe size, invalid number, and others.

• Total Delivery Measurement:

  • Displays total delivery in mg, mL, or units based on the selected parameters.
