Medfusion 3500

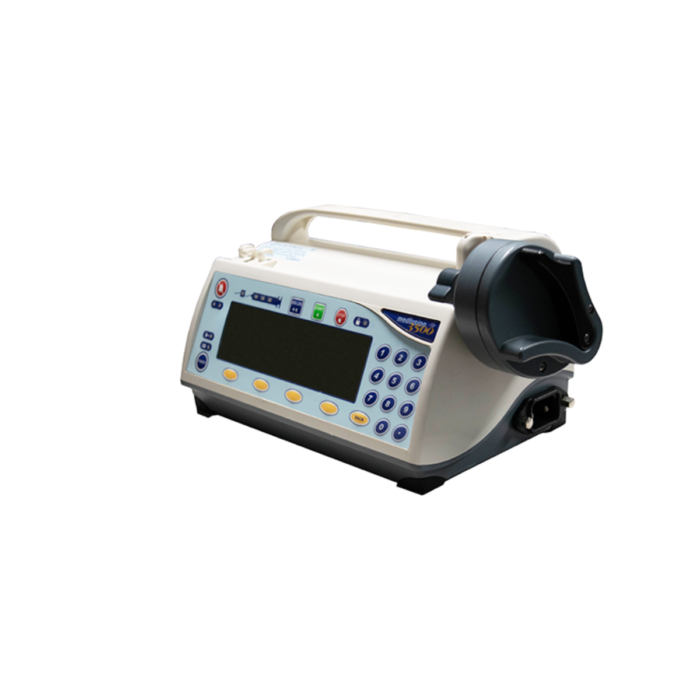

Medfusion 3500 Infusion Pump

The Medfusion 3500 is a versatile syringe pump designed to deliver precise medication doses using syringes ranging from 1 mL to 60 mL. Perfect for ICU and operating room environments, this pump supports patients of all ages—from adults to pediatrics and neonates. Equipped with dual sensors, it ensures that infusions proceed at the programmed rate with high accuracy and reliability. The Medfusion 3500 can automatically detect various syringe types and sizes, and is compatible with major syringe brands such as BD, B. Braun, Monoject, Terumo, Baxa, Neomed, and Philips. Additionally, it seamlessly connects with patient data management systems and is MRI compatible, making it a dependable choice for diverse clinical needs.

Key Features:

• Versatile Flow Range:
  • Offers variable flow rates from as low as 0.01 mL/hr up to 1130 mL/hr, depending on the syringe size selected.
• Dual-Sensor Technology:
  • Ensures that infusions proceed at the exact programmed rate for accurate dosing.
• Broad Syringe Compatibility:
  • Accepts syringes from top manufacturers including BD, B. Braun, Monoject, Terumo, Baxa, Neomed, and Philips.
• Multiple Delivery Modes:
  • Provides several infusion modes such as mL/hr, Body Weight, Mass, Volume Over Time, Custom Dilution, and Intermittent delivery.
• Programmable Dose Limits:
  • Allows customization of dose limits to enhance patient safety.
• Rapid Occlusion Detection & Post-Occlusion Bolus Reduction:
  • Quickly detects occlusions and minimizes the impact of any post-occlusion bolus, helping to prevent over-infusion.
• Integration & Connectivity:
  • Capable of connecting with a Patient Data Management system and is MRI compatible.
• User-Defined Delivery Libraries:
  • Features four libraries with 16 profiles per library, including an “E-Plates” option for rapid setup.

Specifications:

• Dimensions:

  • Width: 10.5 in (27 cm)
  • Height: 5.1 in (13 cm)
  • Depth: 5.5 in (14 cm)
  • Weight: 3.8 lbs (1.7 kg) (pump only)

• Accuracy:

  • Nominal accuracy of ±2% (excluding syringe variations)

• Flow Rate Range:

  • Dependent on syringe size: 0.01 mL/hr to 1130 mL/hr

• Delivery Modes:

  • mL/hr, Body Weight, Mass, Volume Over Time, Custom Dilution, Intermittent

• Delivery Options:

  • 13 programmable options including Loading Dose, Bolus Dose, Standby, Volume Limit, and KVO Rate

• Power Sources:

  • AC: 100–240 VAC, 50/60 Hz, 30 VA
  • Internal rechargeable battery, with an optional external DC input (6–14 VDC, 7 Watts)

• Safety:

  • Safety Class II – Type CF

• Internal Battery Capacity:

  • At 25°C, a fully charged battery will operate the pump for approximately 10 hours at 5.0 mL/hr with a 60 mL syringe

• User-Defined Delivery Libraries:

  • Four libraries with 16 profiles per library, including an “E-Plates” library for rapid setup

• MRI Tested:

  • Suitable for use in MRI rooms with static magnetic fields up to 150 gauss
