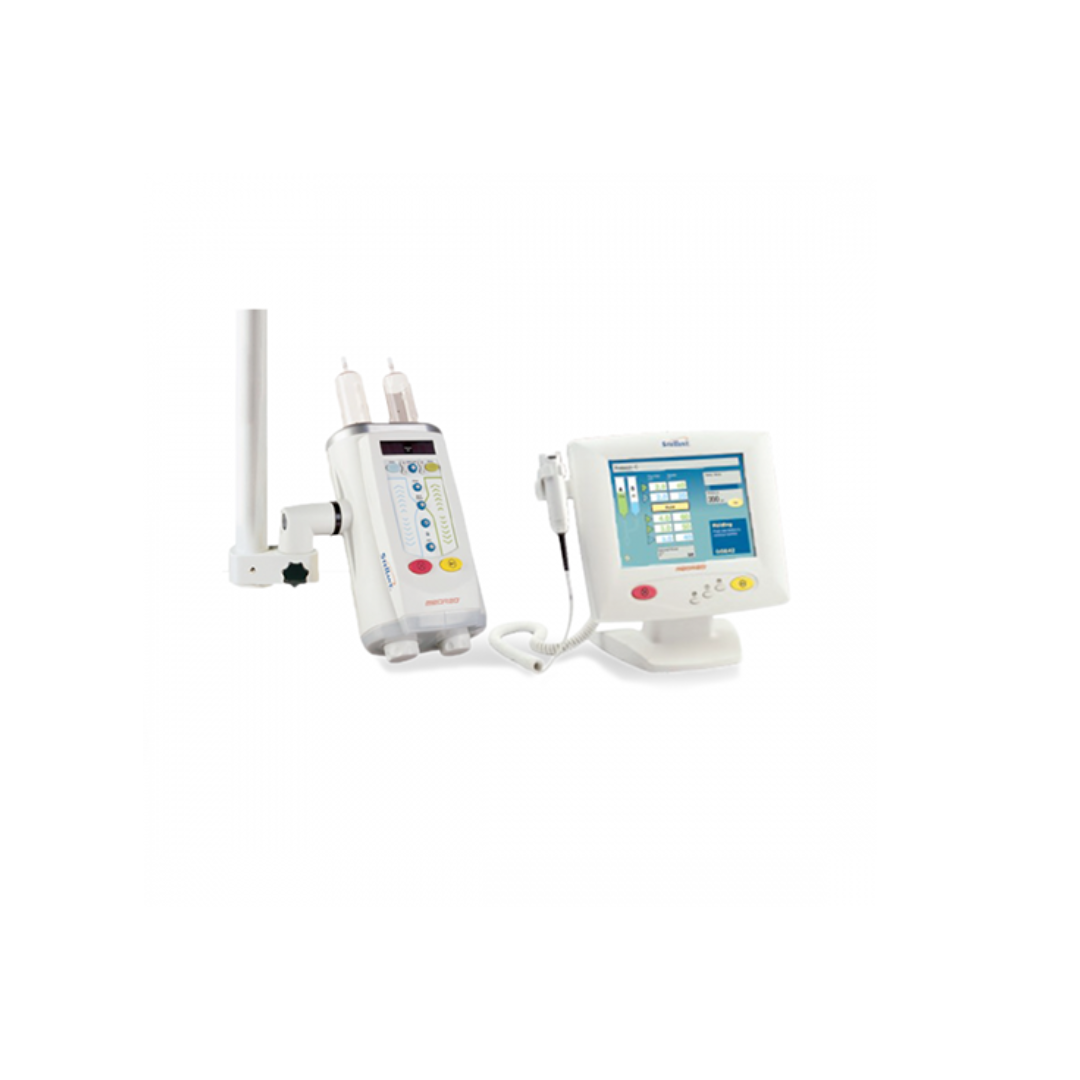

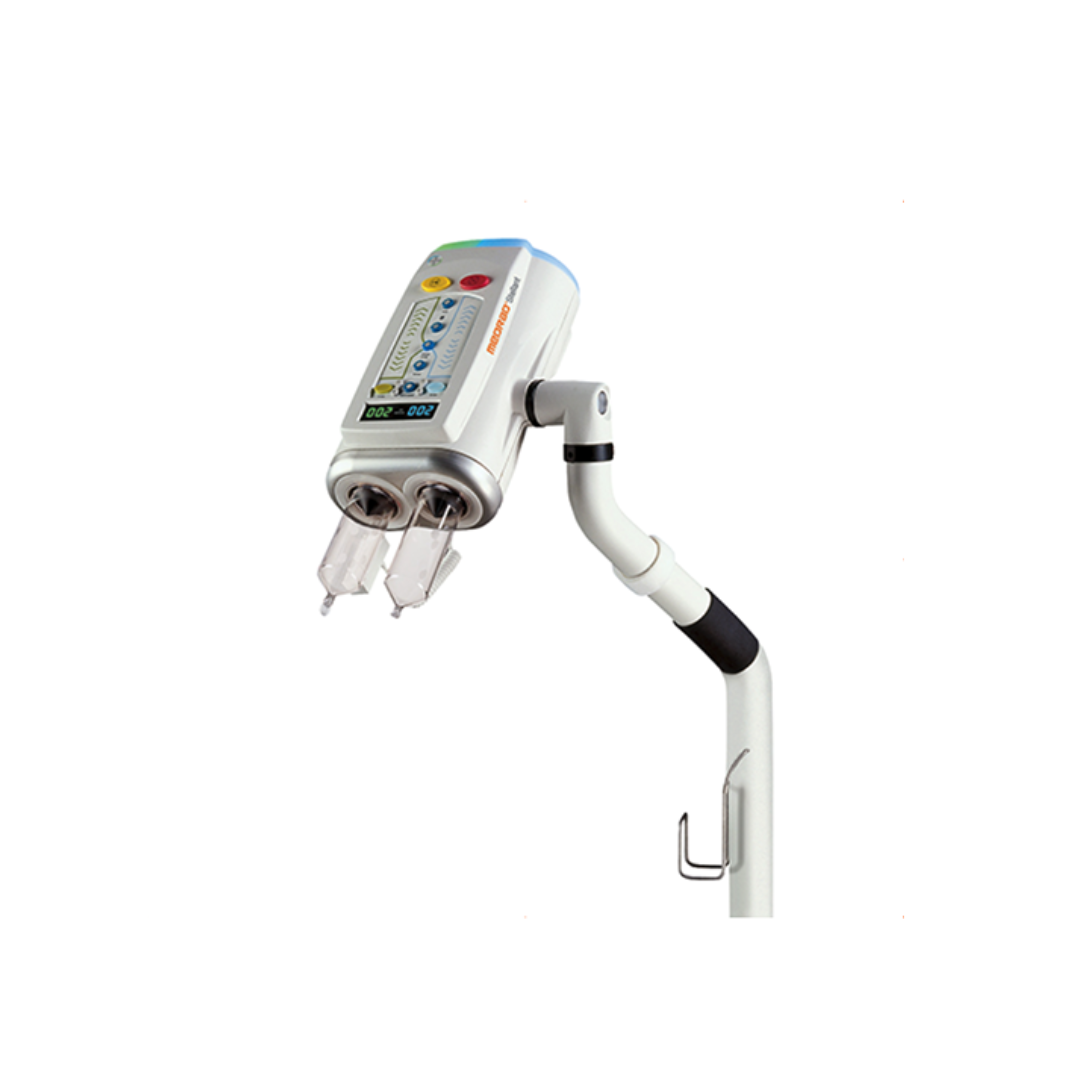

Medrad Stellant Injector System with Certegra Workstation

The Medrad Stellant Injector System, a cornerstone of Bayer’s CT imaging solutions, redefines efficiency and patient-centered care. This advanced system integrates seamlessly with your CT imaging suite, providing scalable informatics-ready capabilities, including radiation and contrast dose management. It enhances connectivity between scanners, PACS, RIS, and speech recognition systems, supported by VirtualCare Remote Support and flexible service programs to adapt to evolving clinical needs.

Optimized Protocol Management:

• Precision in Imaging: Supports up to 250 customizable injection protocols, ideal for complex CT angiography and cardiac CT studies, ensuring precise contrast timing and optimal visualization.
• Innovative Technology: Incorporates Certegra P3T 2.0 technology, allowing for personalized patient protocols and enhancing standardization with presets for radiologist-preferred settings.

Dual Syringe System for Enhanced Imaging:

• Uniform Contrast Enhancement: The DualFlow feature allows for simultaneous injection of contrast and saline at user-defined ratios, improving visualization of cardiac structures and minimizing artifacts.
• Advanced Features: Includes the Medrad XDS Extravasation Detection System to enhance patient safety during injections.

Specifications:

• Injection Control: Flow rates from 0.1 to 10 mL/sec, volume from 1 mL to 200 mL with a programmable pressure limit of 325 psi.
• System Design: Dual injector head with dimensions and a compact base unit for ease of integration into various clinical environments.
• Certegra Workstation: Facilitates advanced protocol management and includes applications for cardiac, abdominal, and pulmonary angiography optimization.

Technical Specifications:

• General Dimensions: Injector head: 6.1 inches in height, 12.1 inches in width, 14.5 inches in depth; Weight: 17.9 lbs.
• Base Unit: Height: 11.5 inches, Width: 11.0 inches, Depth: 8.8 inches; Weight: 13.6 lbs.
• Electrical Requirements: 100-240 VAC, 50/60 Hz, 300 VA.

The Medrad Stellant Injector System is engineered for precision and reliability, offering comprehensive solutions to meet the stringent demands of modern CT imaging.
