Medtronic Bio-Console 560 – Centrifugal Blood Pump

Medtronic Bio-Console 560 Perfusion System

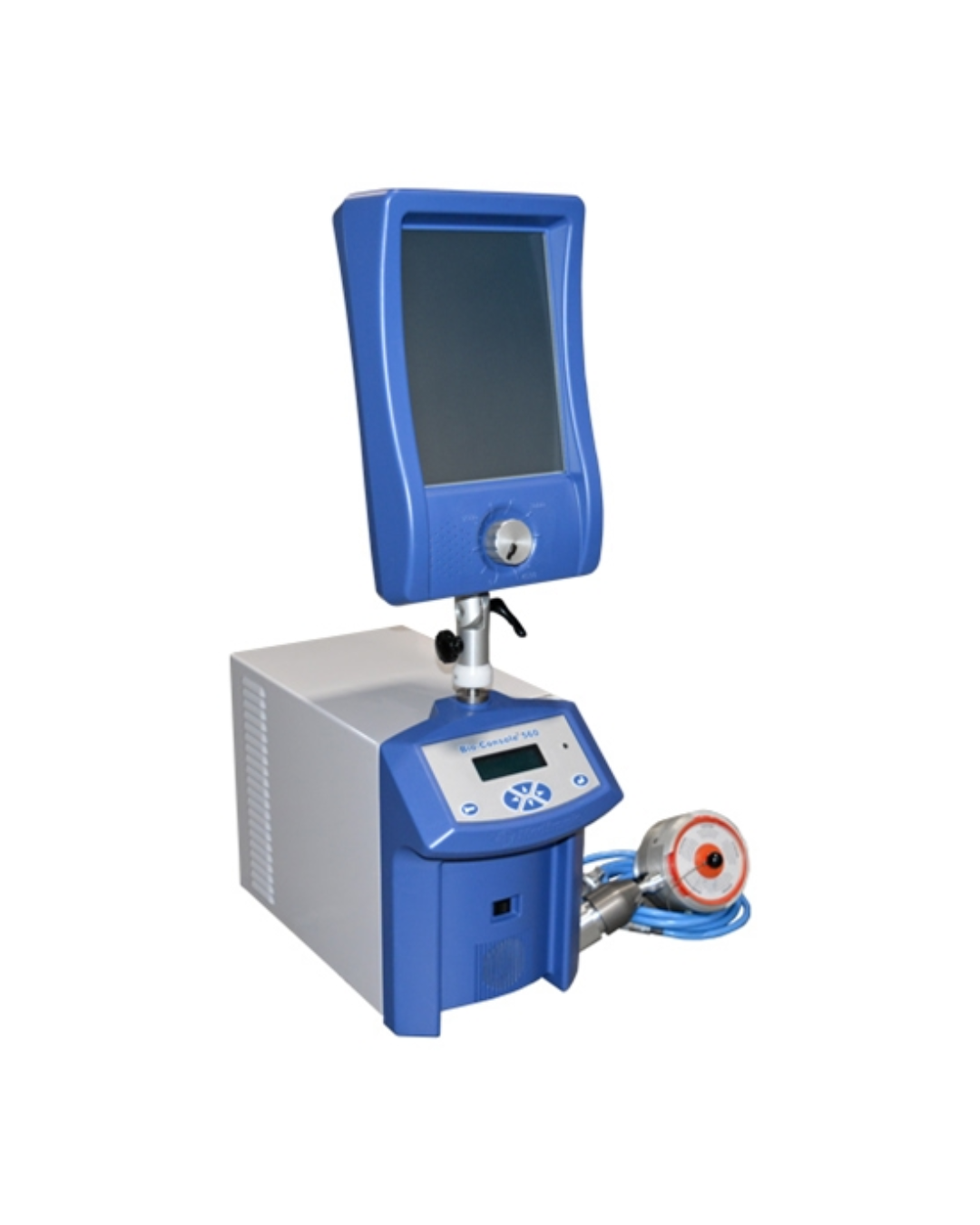

The Medtronic Bio-Console 560 Perfusion System offers precise control and monitoring for the BPX-80 and Affinity CP centrifugal blood pumps. Featuring an ergonomic design with an uncluttered control panel and highly visible graphics, this system ensures smooth operation during cardiopulmonary procedures. A special RPM control knob alerts the operator when low-flow conditions are approaching, enhancing safety. The complete system includes the Bio-Console 560 pump speed controller with an LED touch display, the TX50 Adult Flow Transducer, and the 540T External Drive Motor with an adjustable arm assembly. Optional add-ons—such as the Bio-Cal 370 Temperature Control Module, Model 150 Emergency Handcrank, Sechrist Air Oxygen Mixer, Medtronic ACT Plus Automated Coagulation Timer System, and Portable Bypass System (PBS) Cart/cabinet—further expand its capabilities.

Key Features

• Precise Control & Monitoring:

  • Provides control for BPX-80 and Affinity CP centrifugal blood pumps.
  • Ergonomic, uncluttered control panel with highly visible, color-coded status displays.

• Enhanced Safety:

  • Special RPM control knob alerts operators of low-flow conditions.
  • Three timers with countdown or elapsed time support precise timing during procedures.
  • Dual level sensors and an arterial line auto-clamp system help prevent backflow.

• Advanced Display & Integration:

  • LED touch display offers clear, high-resolution visuals.
  • Flow display includes cardiac index flow target calculation.
  • User-selectable pump stop/coast responses improve operational flexibility.

• Optional Add-Ons:

  • Bio-Cal 370 Temperature Control Module, Model 150 Emergency Handcrank, Sechrist Air Oxygen Mixer.
  • Medtronic ACT Plus Automated Coagulation Timer System and Portable Bypass System (PBS) Cart/cabinet.

• Remote & Flexible Operation:

  • Utilizes remote pump drive for optimal placement.
  • Full system integration supports external device connectivity.

Detailed Specifications

User Interface

• Overall Size:
  • 22.18 cm (8.7 in) wide x 34.5 cm (13.6 in) long
• Screen:
  • Diagonal screen size: 26.41 cm (10.4 in)
• Weight:
  • 4.26 kg (9.4 lb)

Base Unit

• Dimensions:
  • Height: 31.88 cm (12.55 in)
  • Width: 22.83 cm (8.99 in)
  • Length: 43.02 cm (16.9 in)
• Weight:
  • 17.19 kg (37.9 lb)

Electrical Specifications

• AC Power Input:
  • 100 VAC, 50–60 Hz, 3 amps
  • 110–120 VAC, 50–60 Hz, 3 amps
  • 220–240 VAC, 50–60 Hz, 1.5 amps
• External Pump Drive Motor:
  • Brushless DC (non-arcing)
• Internal Batteries:
  • Two series-connected 12 VDC lead-acid gel batteries; rechargeable
  • Discharge/Recharge: Approximately 18 hours to 90% capacity; 24 hours to 100% capacity

System Limits

• Flow:
  • -9.99 to +9.99 L/min (± 5% + 50 mL)
• RPM:
  • 0 to 4500 RPM
• Pressure:
  • -300 to +999 mm Hg (± 5% + 5 mm Hg)

Operating & Storage Conditions

• Operating Limits:
  • Temperature: +18° to +33°C (64° to +92°F)
  • Humidity: 10%–95% (non-condensing)
• Storage Limits:
  • Temperature: -40° to +66°C (-40° to +150°F)
  • Humidity: 10%–95% (non-condensing)

Output Signal

• Digital:
  • RS-232 Interface (flow, RPM, pressure, alarm status)
  • Baud Rate: 1200 to 19200
