Medtronic Performer CPB

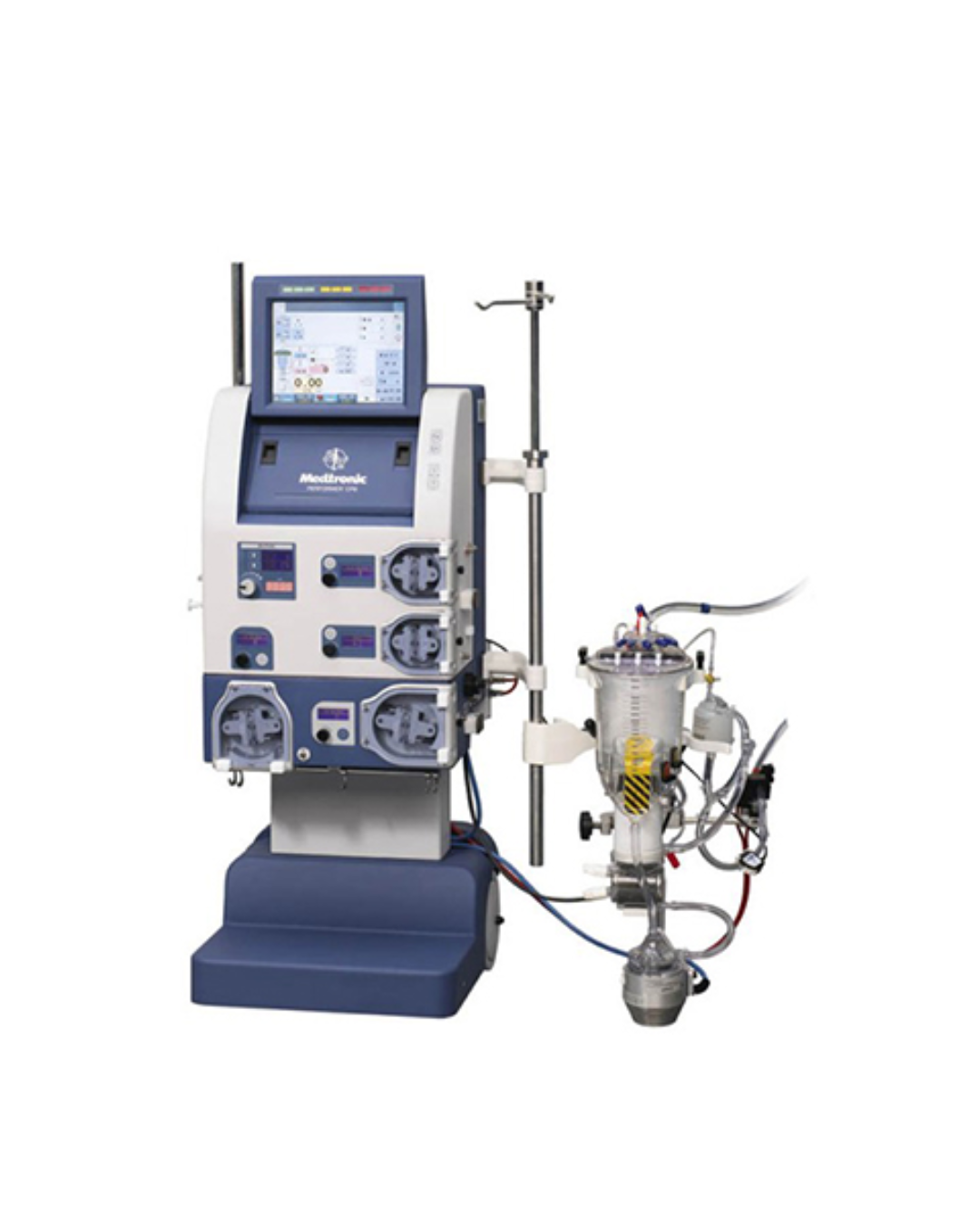

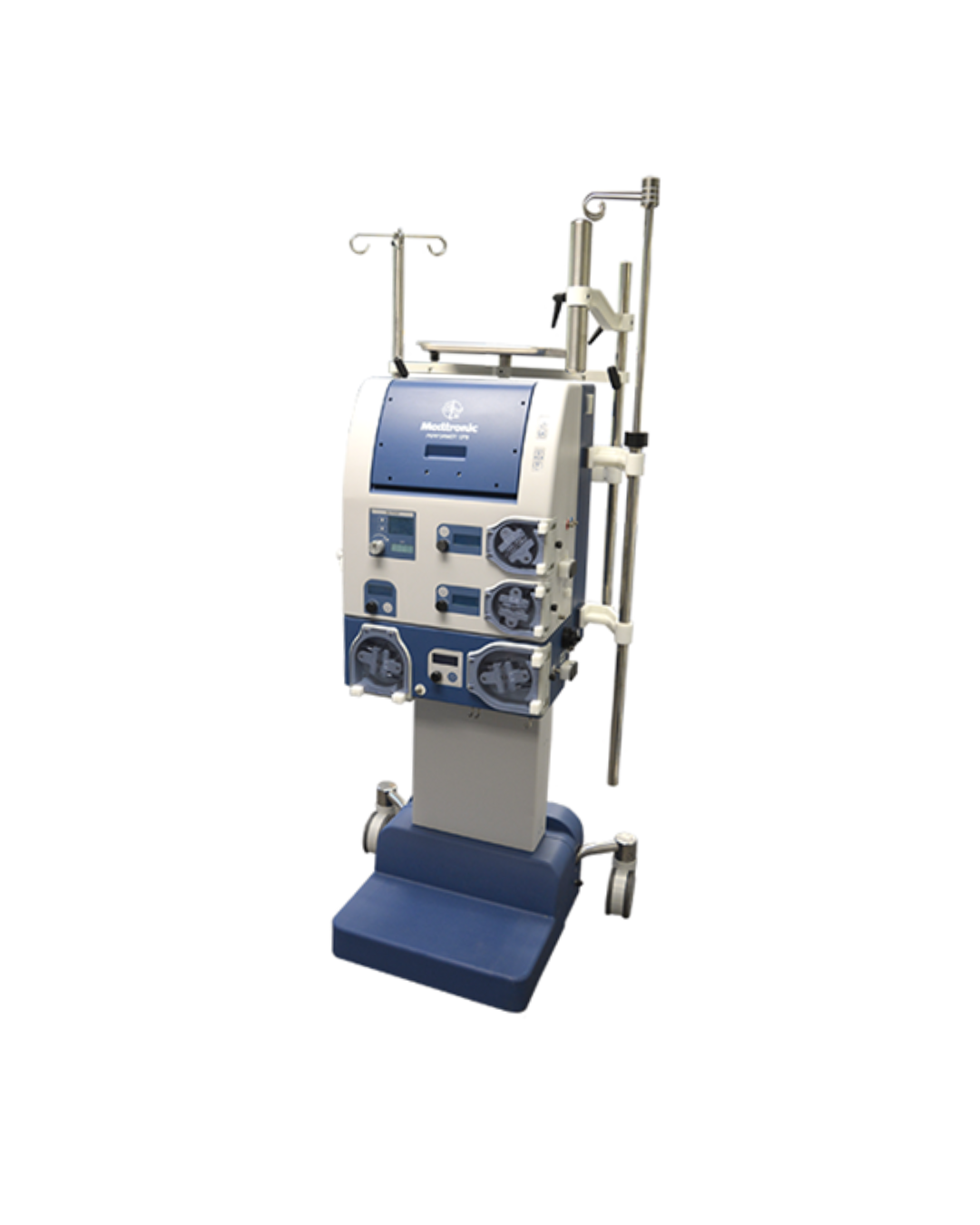

Medtronic Performer CPB Perfusion System

The Medtronic Performer CPB Perfusion System is an electromechanical extracorporeal support device used during cardiopulmonary bypass procedures. This integrated console provides total circulatory support using the Medtronic Bio-Pump Centrifugal Blood Pump, making it an essential tool in cardiac surgery. Designed with advanced monitoring and safety features, the Performer CPB delivers precise control and comprehensive data management to optimize patient outcomes.

Key Features of Medtronic Performer CPB

• Comprehensive Monitoring:

  • Temperature Monitoring: Utilizes YSI Series 400 probes to monitor up to 8 temperature points.
  • Flow Monitoring: Incorporates a reusable Transonic ultrasonic flow probe for arterial line monitoring.
  • Oxygen Saturation & Hematocrit Monitoring: Employs an optoelectric sensor for continuous assessment.

• Integrated Timers and Alarms:

  • Multiple timers track pump time, clamp time, and cardioplegia delivery intervals.
  • Air Bubble Detection (ABD) is implemented in both the arterial and cardioplegia circuits, while Active Air Removal (AAR) technology ensures safe, uninterrupted operation.
  • Level detection using paired sensors monitors fluid or blood volume changes in reservoirs.

• User-Friendly Interface:

  • Features a 12.1-inch color touchscreen display with clear, high-resolution graphics and color-coded status indicators.

• Advanced Safety and Control:

  • The system provides real-time monitoring of critical parameters and alerts, including low-flow conditions, through intuitive controls and integrated sensors.

Detailed Specifications

Physical Dimensions

• Width: 19.6 in (50 cm)
• Depth: 22 in (56 cm)
• Height: 39.4 in to 55.1 in (100 to 140 cm)
• Weight: Approximately 198 lbs (90 kg)

Environmental Conditions

• Operating Conditions:

  • Temperature: 50°F – 104°F (10°C – 40°C)
  • Humidity: 30% – 75% non-condensing
  • Atmospheric Pressure: 700 – 1060 mBar

• Transport and Storage Conditions:

  • Temperature: -4°F to 140°F (-20°C to 60°C)
  • Humidity: 10% – 90% non-condensing
  • Atmospheric Pressure: 700 – 1060 mBar

Electrical Data

• Electrical Classification: Class I, Type BF
• Operation Mode: Continuous
• Voltage: 100 to 240 VAC ±10%
• Frequency: 50 to 60 Hz ±10%
• Current:
  • Maximum 6 A at 100-120 VAC
  • Maximum 3 A at 220-240 VAC
• Power Absorption: Maximum 600 VA
• Earth Leakage Current: <300 µA
• Patient Leakage Current: <100 µA
• Ingress Protection: IP 21 (protected against solid foreign objects ≥12 mm diameter and drop water)

Pump Performance

• Pump PM1 – PM4:
  • Flow Rates: Vary by pump model and tubing size
  • Pressure Range: Within tolerance from -150 to +500 mm Hg
  • Maximum Tolerance: ±10% for flow rates
  • Protection Systems: Feedback from the encoder, open-cover sensor for pump blockage detection

Additional Monitoring and Control

• Timers:
  • Multiple channels with a range from 00:00:00 to 99:59:59 (hh:mm:ss) and accuracy of ±1% of elapsed time.
• Output Signal:
  • Digital RS-232 Interface transmitting flow, RPM, pressure, and alarm status at baud rates from 1200 to 19200.
• Safety Systems:
  • Integrated air bubble detection and active air removal, along with level sensors for reservoir monitoring.
