Medtronic Valleylab FT10 Energy Platform

Medtronic Valleylab FT10 Energy Platform

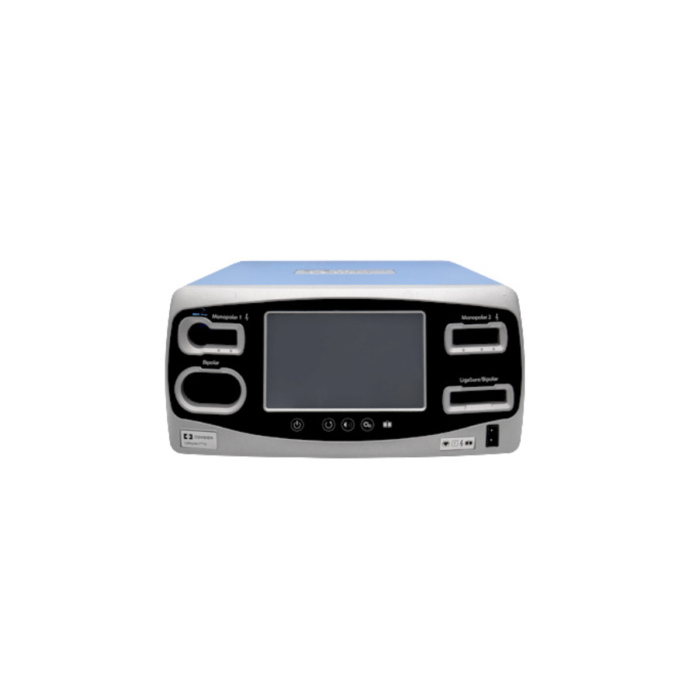

The Medtronic Valleylab FT10 Energy Platform is an advanced radio-frequency electrosurgical generator engineered for precise energy delivery. It leverages intelligent TissueFect technology to read tissue composition in real-time—evaluating performance 434,000 times per second and monitoring tissue impedance—to ensure efficient cutting, coagulation, tissue fusion, and vessel sealing. Designed for a broad spectrum of surgical procedures including general, plastic, reconstructive, ENT, gynecologic, orthopedic, arthroscopic, spinal, and neurological interventions, the FT10 offers enhanced performance with faster sealing and cutting times while maintaining lower jaw temperatures for improved safety.

Key Features

• Accelerated Sealing & Cutting:

  • Delivers up to 50% faster sealing times compared to previous models.
  • Lower maximum jaw temperatures enhance safety during tissue sealing.

• Intelligent Tissue Sensing:

  • Built-in TissueFect technology reads tissue 434,000 times per second to optimize energy delivery based on tissue impedance.

• Versatile Energy Modes:

  • Supports both monopolar and bipolar surgical applications, including tissue fusion and vessel sealing.
  • New ES settings offer soft coagulation and other specialized modes for improved surgical outcomes.

• Advanced Power Management:

  • Auto bipolar activation ensures faster response time.
  • Smart generators automatically manage every energy delivery for consistent performance.

• User-Friendly Interface & Remote Control:

  • Features a 7-inch LCD touchscreen for intuitive operation.
  • ReMode function and Ethernet (with Wi-Fi capabilities, not yet enabled) allow remote control and configuration.
  • Automatic detection of coded handsets adjusts settings seamlessly.

• Customizable Output:

  • Offers adjustable power ranges across Low (Off, 1–15 W; Peak Voltage: 133 V), Medium (16–40 W; Peak Voltage: 214 V), and High (45–95 W; Peak Voltage: 462 V) settings.
  • Bipolar cable compensation ensures consistent output regardless of cable length and width.

Detailed Specifications

Physical & Performance Specifications

• Dimensions:
  • Height: 6.7 in (17 cm)
  • Width: 14.1 in (35.8 cm)
  • Depth: 18.2 in (46.25 cm)
  • Weight: 22.3 lbs (10.1 kg)
• Display:
  • 7-inch LCD touchscreen for clear, interactive user input.
• Internal Memory:
  • 8 GB storage capacity for program and usage data.

Power Input & Consumption

• Input Power (100-127 VAC):
  • Full regulation range: 90–140 VAC; Line Frequency: 47–63 Hz
  • Max VA Nominal: 950 VA; Max Mains Current: 9.5 A; Max Heat Dissipation: 180 W
• Input Power (220-240 VAC):
  • Regulation Range: 198–264 VAC; Line Frequency: 47–63 Hz
  • Max Mains Current: 4.8 A; Max Heat Dissipation: 180 W

Operating Environment

• Operating Temperature: 50°F to 104°F (10°C to 40°C)
• Operating Humidity: 30% to 75% (non-condensing)
• Storage Temperature: -10°C to +60°C (14°F to 140°F)
• Storage Humidity: 25% to 85% (non-condensing)
• Atmospheric Pressure: 500 to 1060 millibars

Electrical Safety & Leakage

• Leakage Currents:
  • Touch Current: < 100 µA (NC), < 500 µA (SFC)
  • Earth Leakage: < 500 µA (NC), < 1000 µA (SFC)
  • Patient Leakage: < 10 µA (NC), < 50 µA (SFC)

Power Settings & Performance

• Low Power Settings:
  • Off to 15 W; Peak Voltage: 133 V
• Medium Power Settings:
  • 16–40 W; Peak Voltage: 214 V
• High Power Settings:
  • 45–95 W; Peak Voltage: 462 V
• Cooling:
  • Natural convection with fan assistance for effective heat dissipation.
• Operating System:
  • Runs on a Linux-based platform for reliable, real-time control.
