Midmark M11 UltraClave

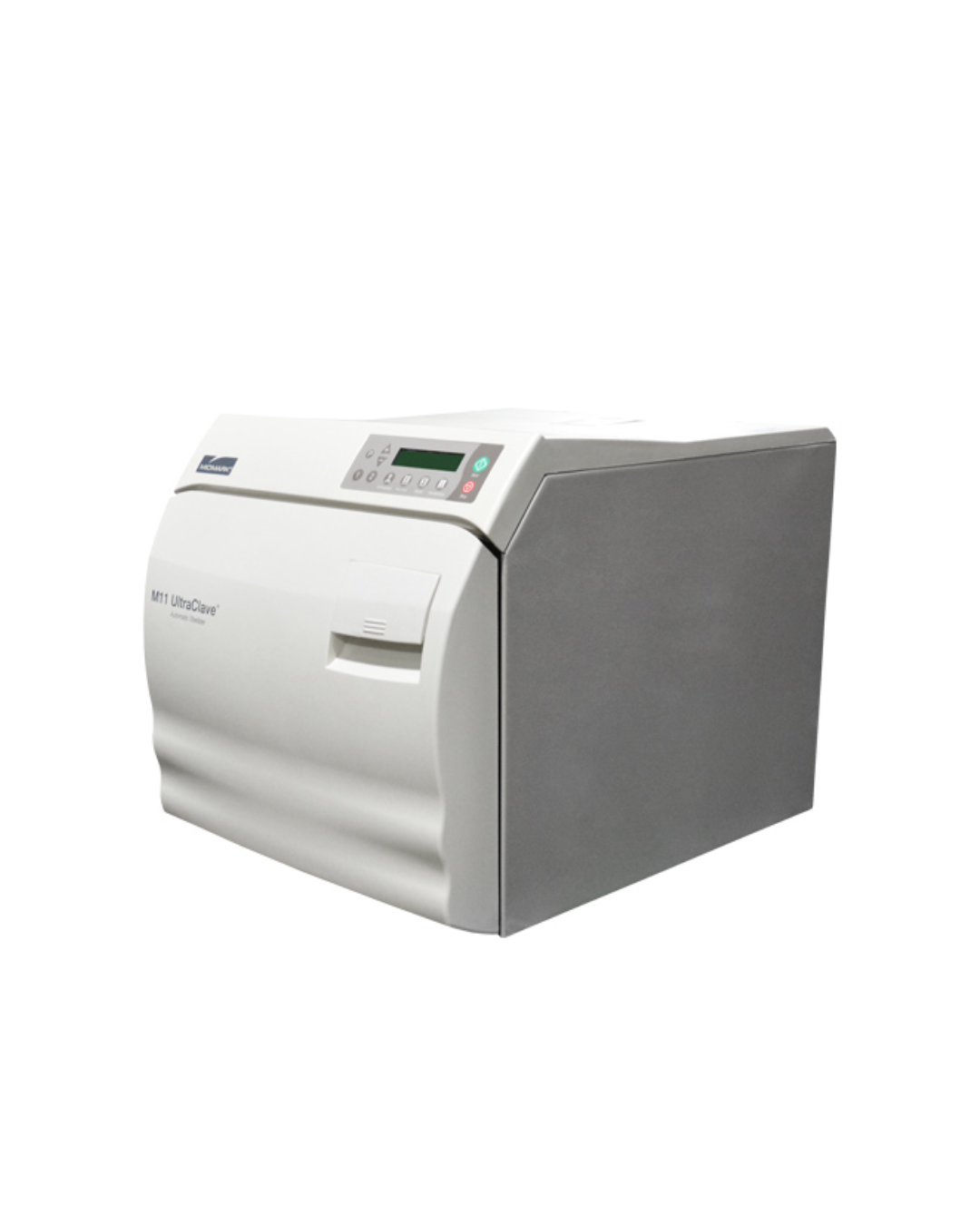

Midmark M11 UltraClave Automatic Sterilizer

The Midmark M11 UltraClave is a high-efficiency, self-contained steam sterilizer, designed to meet the demanding sterilization needs of medical and dental offices, hospitals, clinics, nursing homes, laboratories, and other healthcare facilities. This sterilizer optimizes sterilization processes by offering intuitive operation and multiple sterilization cycles to handle a variety of heat and moisture-stable reusable items effectively.

Key Points

• User-Friendly Interface:
  Features an intuitive display with simple prompts, making it easy for users to operate and select the appropriate sterilization cycle.

• Versatile Sterilization Cycles:
  Equipped with four pre-programmed cycles for Unwrapped, Pouched, Packs, and Handpieces, ensuring flexibility based on different sterilization needs.

• Safety Features:
  Includes a Dry Cycle Door Stop to prevent the door from opening fully if slight residual pressure remains in the chamber, and a pressure relief valve to safely manage excessive steam pressure.

• Effective Monitoring:
  Monitors chamber temperature and pressure continuously during cycles to prevent overheating and ensure safety.

• Optimal Chamber Design:
  Provides a large sterilization chamber that is 11 inches in diameter and 18 inches deep, facilitating the sterilization of large trays and various medical instruments.

Specifications

• Dimensions:

  • Height (With Printer): 17.9 in (45.2 cm)
  • Width: 17.8 in (45.2 cm)
  • Depth (With Plug): 23.8 in (60.5 cm)
  • Counter Area: 17.8 x 21 in (45.2 x 53.3 cm)
  • Chamber Dimensions: 11 in diameter x 18 in deep (22.9 cm diameter x 46 cm deep)
  • Large Tray: 9 in x 15 in x 1 1/8 in (22.9 cm x 38 cm x 2.9 cm)
  • Small Tray: 6 5/8 in x 15 in x 1 1/8 in (16.8 cm x 38 cm x 2.9 cm)

• Weight:

  • Empty: 99 lbs (44.9 kg)
  • Full: 111 lbs (50.4 kg)

• Water Reservoir Capacity:

  • Approximately 1.4 gallons (5.3 liters) to full mark; usable volume is 1 gallon (3.8 liters)

• Electrical Requirements:

  • 115 VAC, 50/60 Hz, 15 Amps, Single Phase with a 1425 watt tubular immersion heater
  • 230 VAC, 50/60 Hz, 10 Amps, Single Phase with a 1500 watt tubular immersion heater

• Chamber Pressure:

  • At 270 °F (132 °C): 27.1 psi (182 kPa)
  • Safety Valve Setting: 40 psi (275.8 kPa)

• Heat Emission:

  • 5000 BTU/Hr during operation

• Fuses:

  • 115 VAC models: F1: 0.250 amp, 250 V, Slo-Blo; F2: 15 amp, 250 V, Fast-Acting
  • 230 VAC models: F1: 0.125 amp, 250 V, Slo-Blo; F2: 8 amp, 250 V, Fast-Acting

• Safety Standards:

  • UL Listed to U.S. & Canadian Standards
  • UL 61010-1, 2nd Edition; IEC 61010-2-040, 1st Edition
  • CAN/CSA C22.2 No. 61010-1, 2nd Edition; CSA C22.2 No. 61010-2-040-07, Part 2-040, 1st Edition
  • Meets the requirements of ASME Boiler and Pressure Vessel Code
