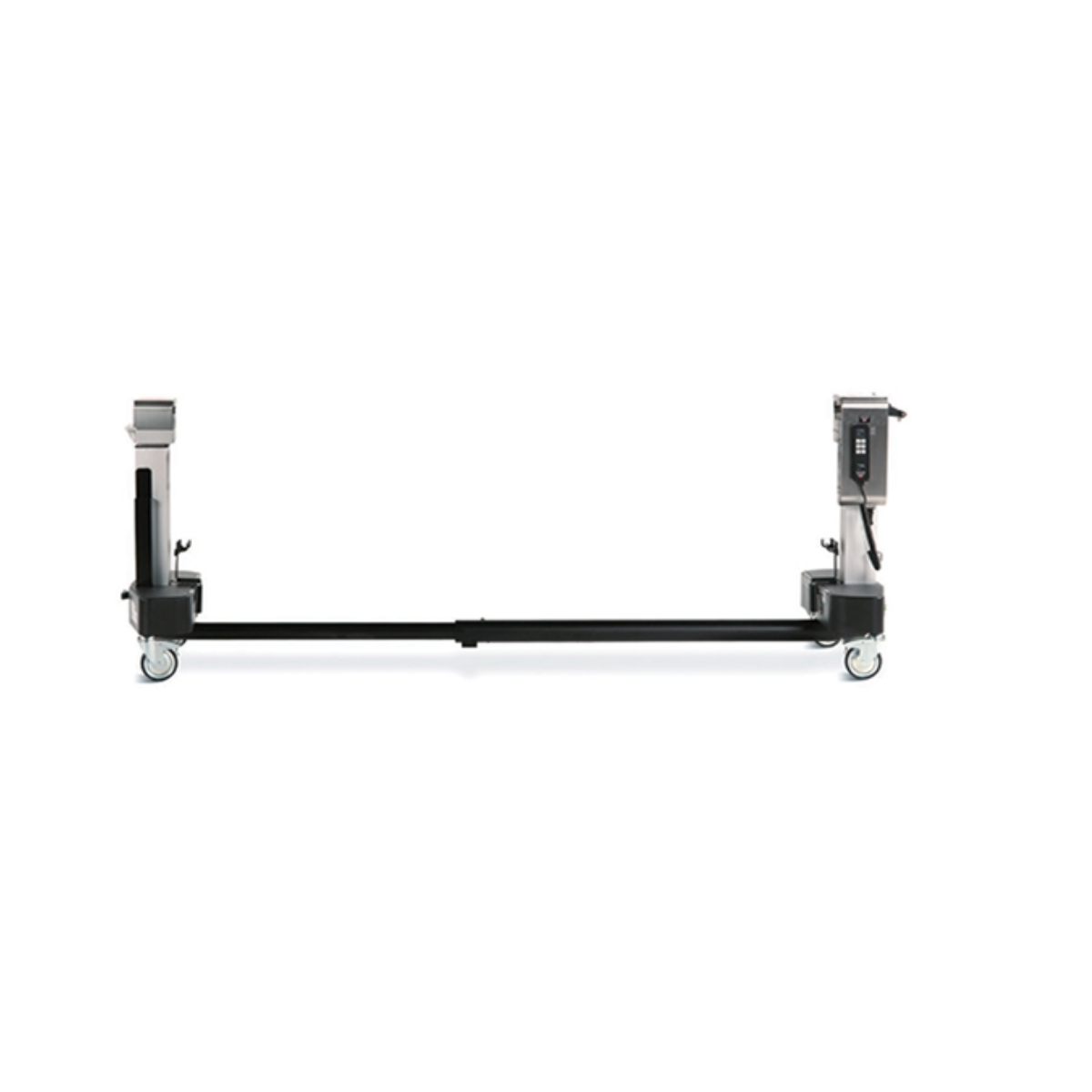

The Mizuho OSI 5803 Advanced Control Base is the primary component of the Modular Table System (MTS) and is specifically designed for Jackson Table Frames. Engineered to seamlessly interface with a C-arm, it supports three interchangeable tops that optimize patient positioning for a variety of surgical procedures. The dual column design offers easy C-arm access while the I-beam retractable feature simplifies storage. This advanced control base operates on both AC and battery power and provides powered lateral tilt and table articulations, ensuring precise and smooth movements. The system is controlled via a hand pendant that manages height, lateral tilt (roll), and Trendelenburg/Reverse Trendelenburg adjustments, and it displays key statuses such as rotation lock, tilt drive, and battery condition. Additionally, the base features steer casters, H-frame storage brackets, and four independent locking casters for reliable mobility and stability.

Key Features

• Dual Column Design:

  • Ensures easy C-arm access and robust stability.

• Modular Interchangeability:

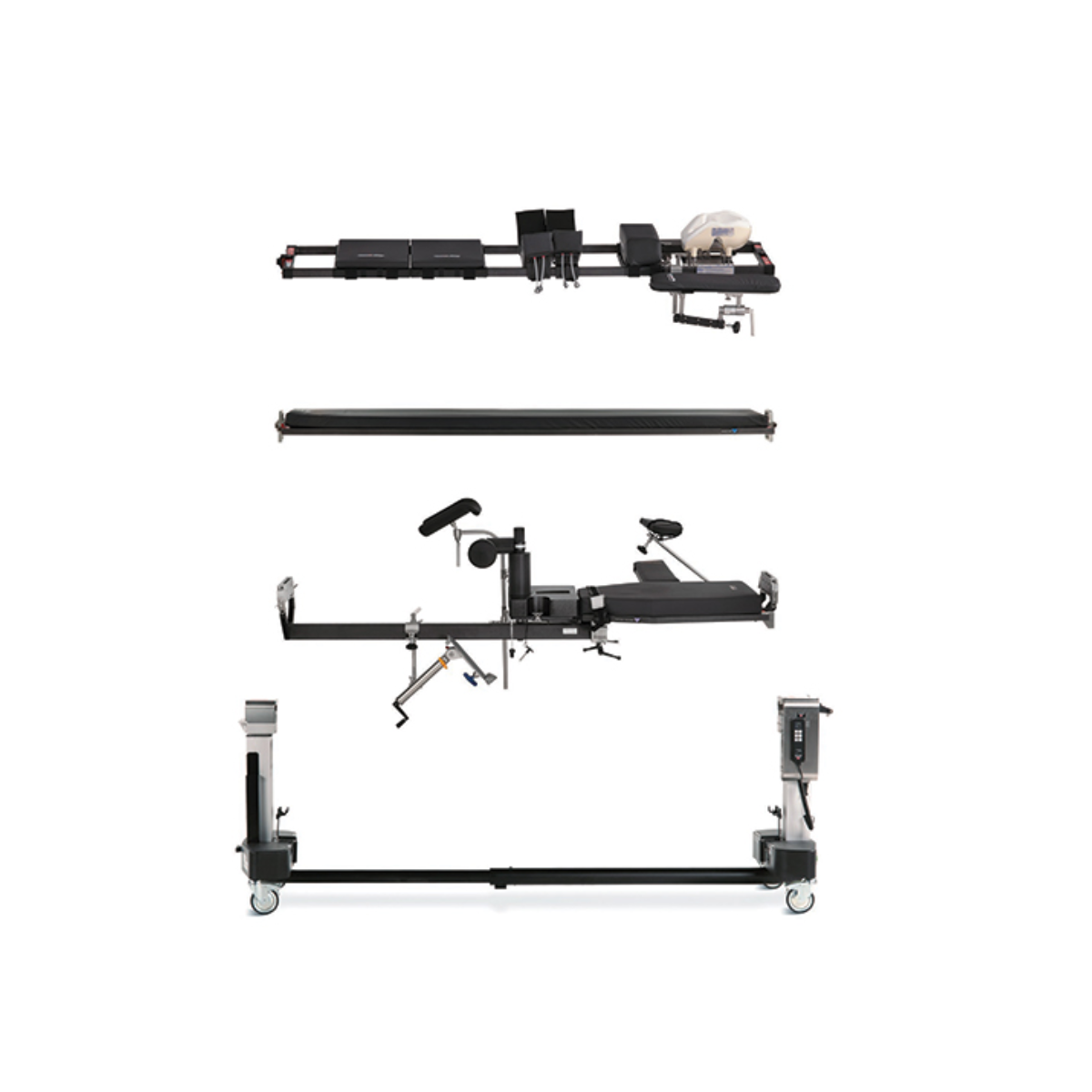

  • Designed for use with three gimbaled, Mizuho OSI modular tops for diverse surgical procedures.

• I-Beam Retractable Feature:

  • Facilitates easy storage when not in use.

• Advanced Control:

  • Powered lateral tilt and table articulations for precise positioning.
  • Hand pendant controls height, lateral tilt (roll), and Trendelenburg/Reverse Trendelenburg, with visual confirmation of rotation lock, tilt drive, and battery status.

• Versatile Power Options:

  • Operates on both AC and battery power.

• Mobility & Stability:

  • Equipped with a steerable caster at the foot end, H-frame storage brackets, and four independent locking casters.

Detailed Specifications

Dimensions

• Table Top Floor Height:
  • Spinal and Imaging Top: 27–48 in (69–122 cm)
  • Ortho Trauma Top: 34–50 in (86–127 cm)
• Base Width:
  • 32 in (81 cm)
• Base Length:
  • Maximum: 102 in (259 cm)
  • Minimum: 64 in (163 cm)

Movements

• Trendelenburg:
  • Up to 10°
• Reverse Trendelenburg:
  • Up to 10°
• Lateral Tilt:
  • Up to 25°

Patient Capacity

• Weight Capacity:
  • Up to 500 lb (227 kg)

Power Specifications

• Voltage:
  • 120V AC
• Frequency:
  • 60 Hz
