Mizuho OSI 5927 Radiolucent Imaging Top – Jackson Table

Mizuho OSI 5927 Radiolucent Imaging Top

The Mizuho OSI 5927 Radiolucent Imaging Top is designed to deliver complete radiolucency and exceptional imaging quality when paired with the Mizuho OSI 5803 Advanced Control Base. Constructed from carbon fiber and equipped with a Tempur-Pedic® Medical pad, this imaging top offers unrestricted C-arm and O-arm® integration, allowing for clear, unobstructed fluoroscopic imaging. Its design supports versatile patient positioning—supine, lateral, or prone—making it ideal for a broad range of procedures including pelvic surgery, vascular interventions, spinal surgery, and more.

Key Features

• Complete Radiolucency:

  • Carbon fiber tabletop with Tempur-Pedic® Medical pad ensures minimal X-ray attenuation for high-quality imaging.

• Unrestricted C-Arm Integration:

  • Designed to work seamlessly with C-arm and O-arm® systems for intraoperative imaging.

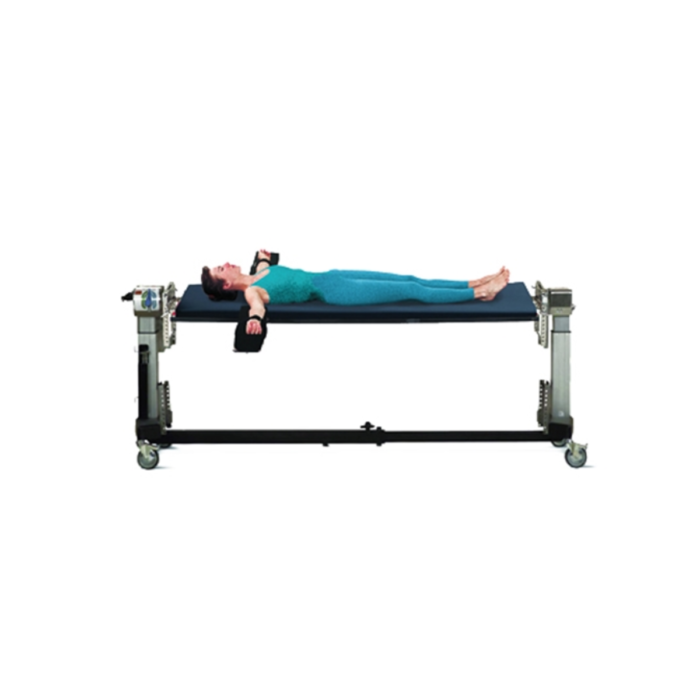

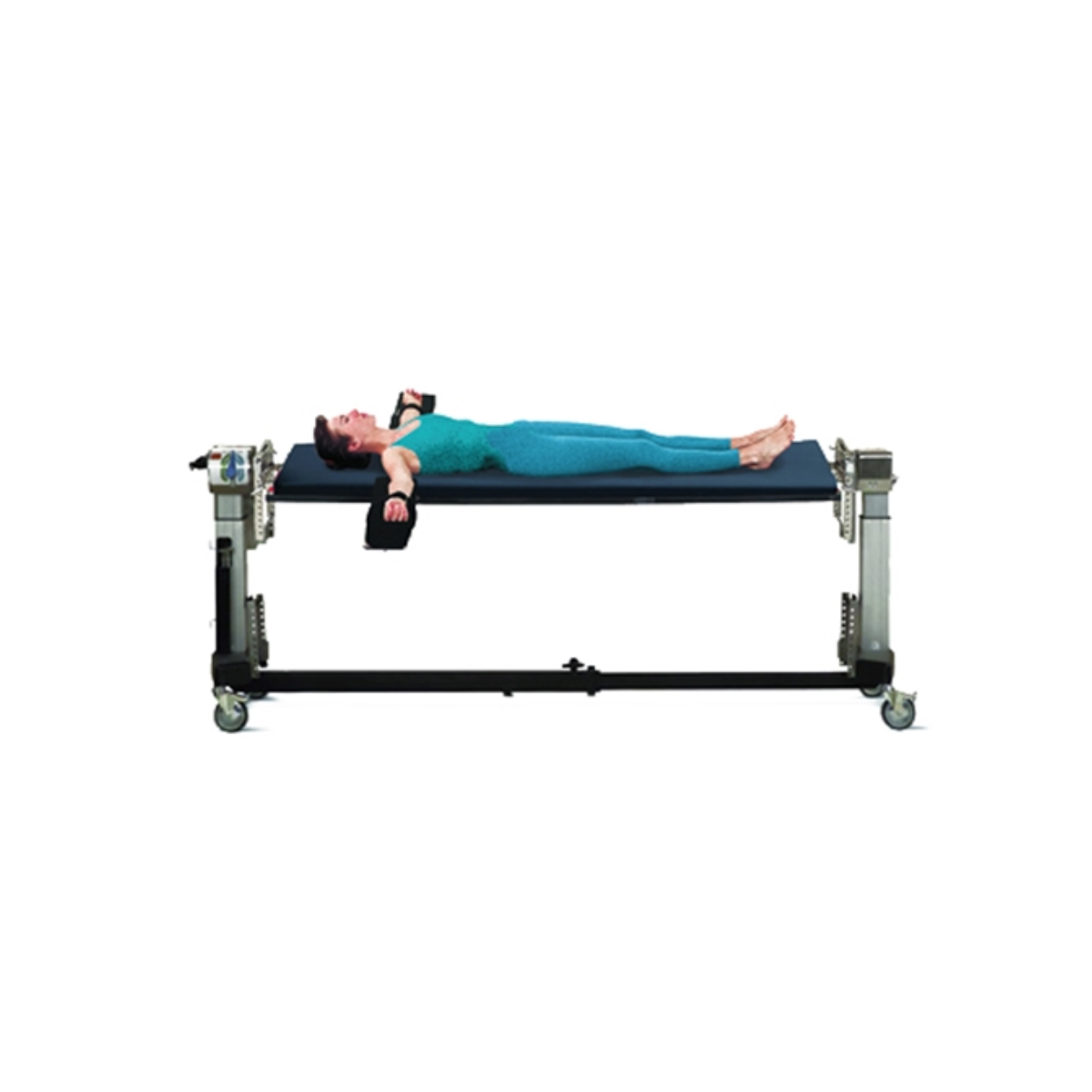

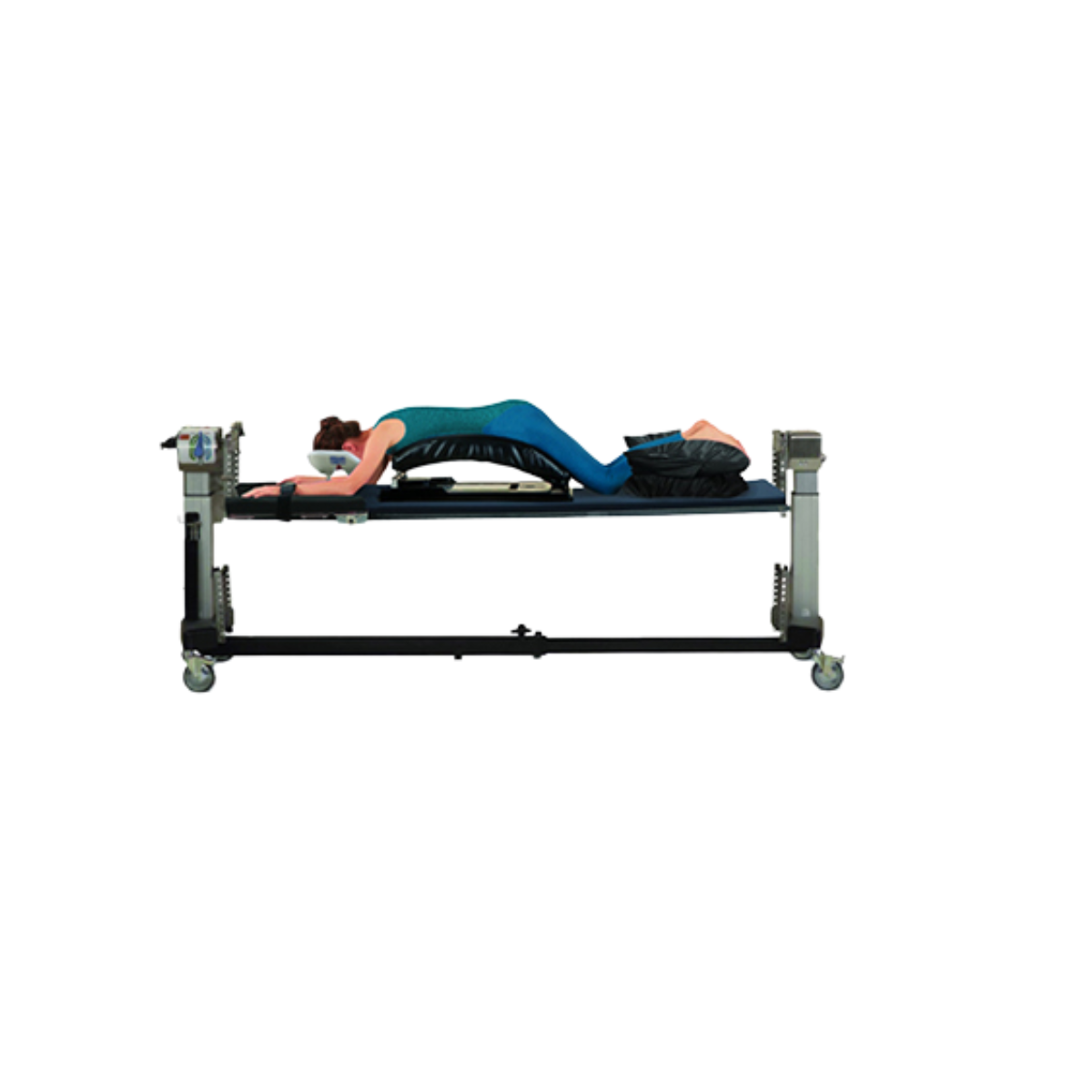

• Versatile Patient Positioning:

  • Supports supine, prone, and lateral positions with full body support.
  • Enables complete pelvic surgery positioning and, when used with the Spinal Surgery Top, 360° patient rotation.

• Advanced Control Integration:

  • Operated via the hand pendant on the Mizuho OSI 5803 Advanced Control Base, which controls height, lateral tilt (roll), and Trendelenburg/Reverse Trendelenburg adjustments.

• Application Flexibility:

  • Ideal for a wide range of surgical procedures including anterior cervical surgery, catheter placement, pelvic/acetabular reconstruction, vascular procedures, kyphoplasties, cardiac angioplasty, laminectomies, decompressions, pain management, joint imaging, intradiscal electrothermal therapy (IDET), and myelography.

Detailed Specifications

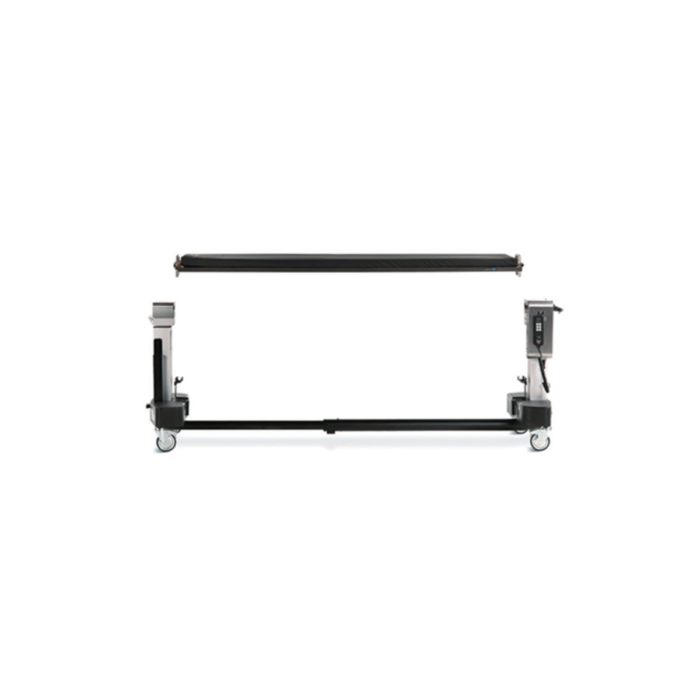

5803 Advanced Control Base (for reference)

• Height (Adjustable): 27 to 48 in (69 to 122 cm)
• Width: 32 in (81 cm)
• Length: 64 to 102 in (163 to 259 cm)
• Patient Weight Capacity: 500 lbs (226 kg)

5927 Radiolucent Imaging Top

• Dimensions:
  • Length: 84 in (213 cm)
  • Width: 21.5 in (55 cm)

Power & Control

• Advanced Control Base Power:
  • Voltage: 120V, Frequency: 60 Hz
• Positioning Capabilities:
  • Supports supine, prone, and lateral positions.
  • Hand pendant on the advanced control base facilitates adjustments for height, lateral tilt (roll), and Trendelenburg/Reverse Trendelenburg.
