Mizuho OSI 5943 Spinal Surgery Top – Jackson Table

Mizuho OSI 5943 Spinal Surgery Top – Jackson Table

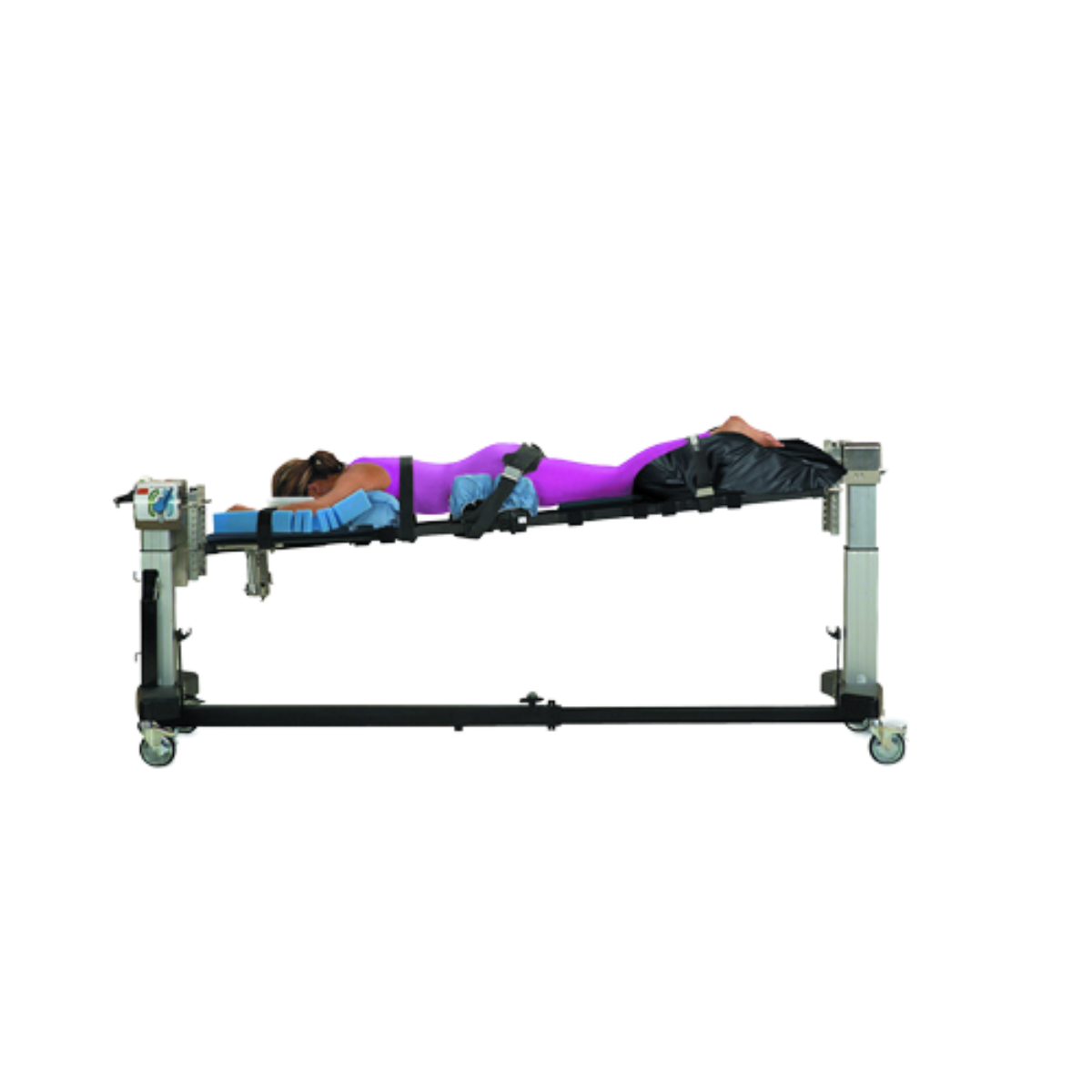

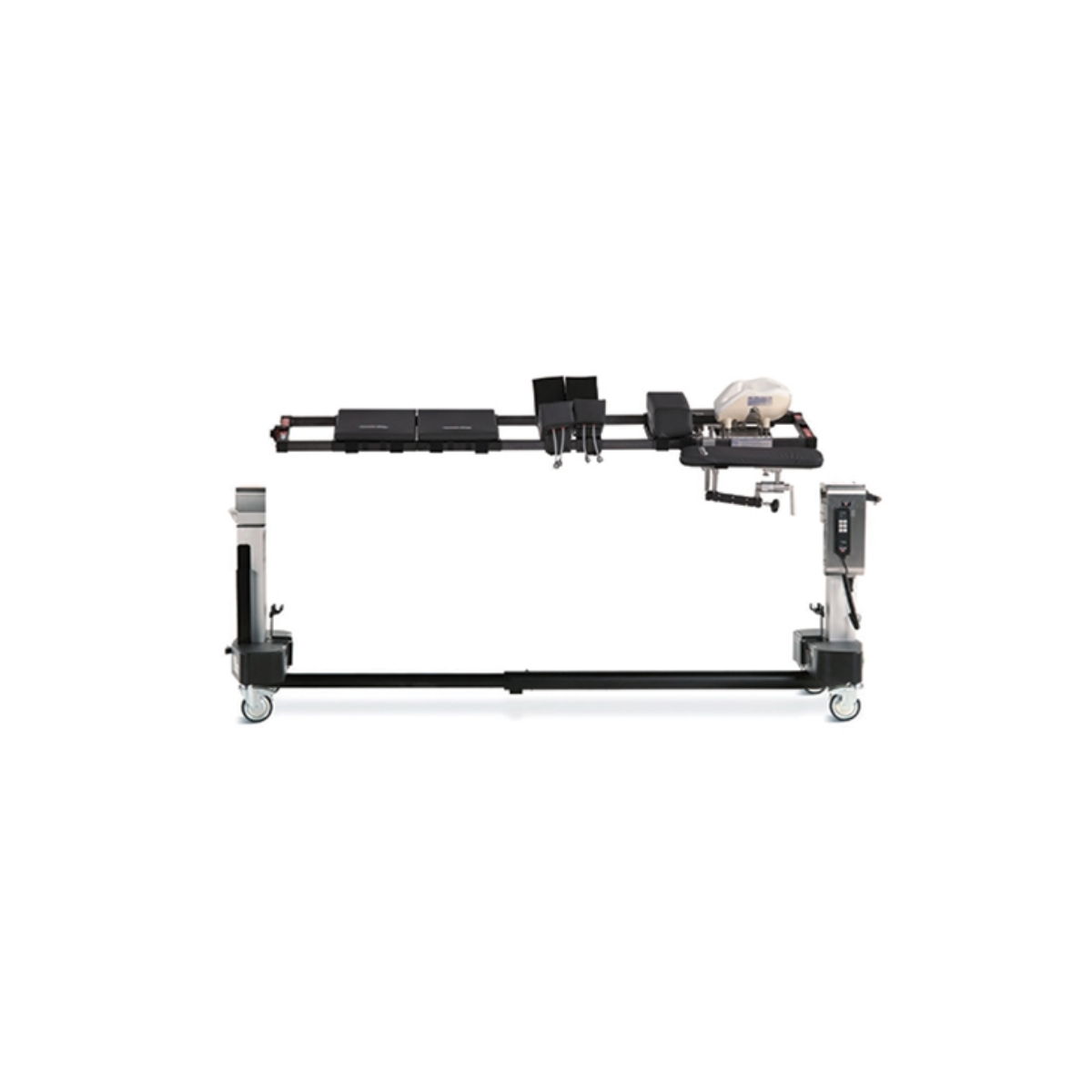

The Mizuho OSI 5943 Spinal Surgery Top is designed for optimal spinal surgery on the Mizuho OSI 5803 Advanced Control Base. Constructed with carbon fiber, it provides complete radiolucency and an open-frame design that minimizes epidural venous bleeding and reduces vena cava compression. This specialized top features individual positioning pads that support patients in the prone position, while its integration with the Radiolucent Imaging Top allows for seamless repositioning from supine to prone. With unrestricted C-arm and O-arm® access, 360-degree patient rotation (when used with the Radiolucent Imaging Top), and lateral tilt of up to 25° in both directions, the 5943 Spinal Surgery Top ensures precise and customizable patient positioning. The Advanced Control Base’s hand pendant controls height, lateral tilt, and Trendelenburg/Reverse Trendelenburg, enabling a smooth, intuitive adjustment process tailored for complex spinal procedures.

Key Features

• Complete Radiolucency:
  • Carbon fiber construction ensures clear imaging with no obstructions.
• Unrestricted Imaging Access:
  • Facilitates 360° patient rotation (with Radiolucent Imaging Top) and unrestricted C-arm and O-arm® access.
• Optimized Spinal Positioning:
  • Open-frame design reduces vena cava compression and minimizes epidural venous bleeding.
  • Customized support pads accommodate varying patient body types.
• Advanced Control Integration:
  • Hand pendant on the Advanced Control Base manages height, lateral tilt (roll), and Trendelenburg/Reverse Trendelenburg adjustments.
  • Provides 10° Trendelenburg/Reverse Trendelenburg and 25° lateral tilt (roll) for precise positioning.
• Versatile Patient Positioning:
  • Supports both prone positioning for spinal surgery and supine positioning (when paired with a short supine operating top).

Detailed Specifications

5803 Advanced Modular Base (for reference)

• Height (Adjustable): 27 to 48 in (69 to 122 cm)
• Width: 32 in (81 cm)
• Length: 64 to 102 in (163 to 259 cm)
• Patient Weight Capacity: 500 lbs (226 kg)
• Power:
  • Voltage: 120V
  • Frequency: 60 Hz
• Movements:
  • Trendelenburg/Reverse Trendelenburg: 10°
  • Lateral Tilt (Roll): 25°

5943 Spinal Surgery Top

• Tabletop Dimensions:
  • Length: 84 in (213 cm)
  • Width: 17 in (43 cm)

Common Procedures

• Anterior/Posterior Fusions (cervical to sacrum)
• Surgical Correction of Deformities
• Laminectomies and Decompressions
• Kyphoplasties and Osteotomies

Positioning Capabilities

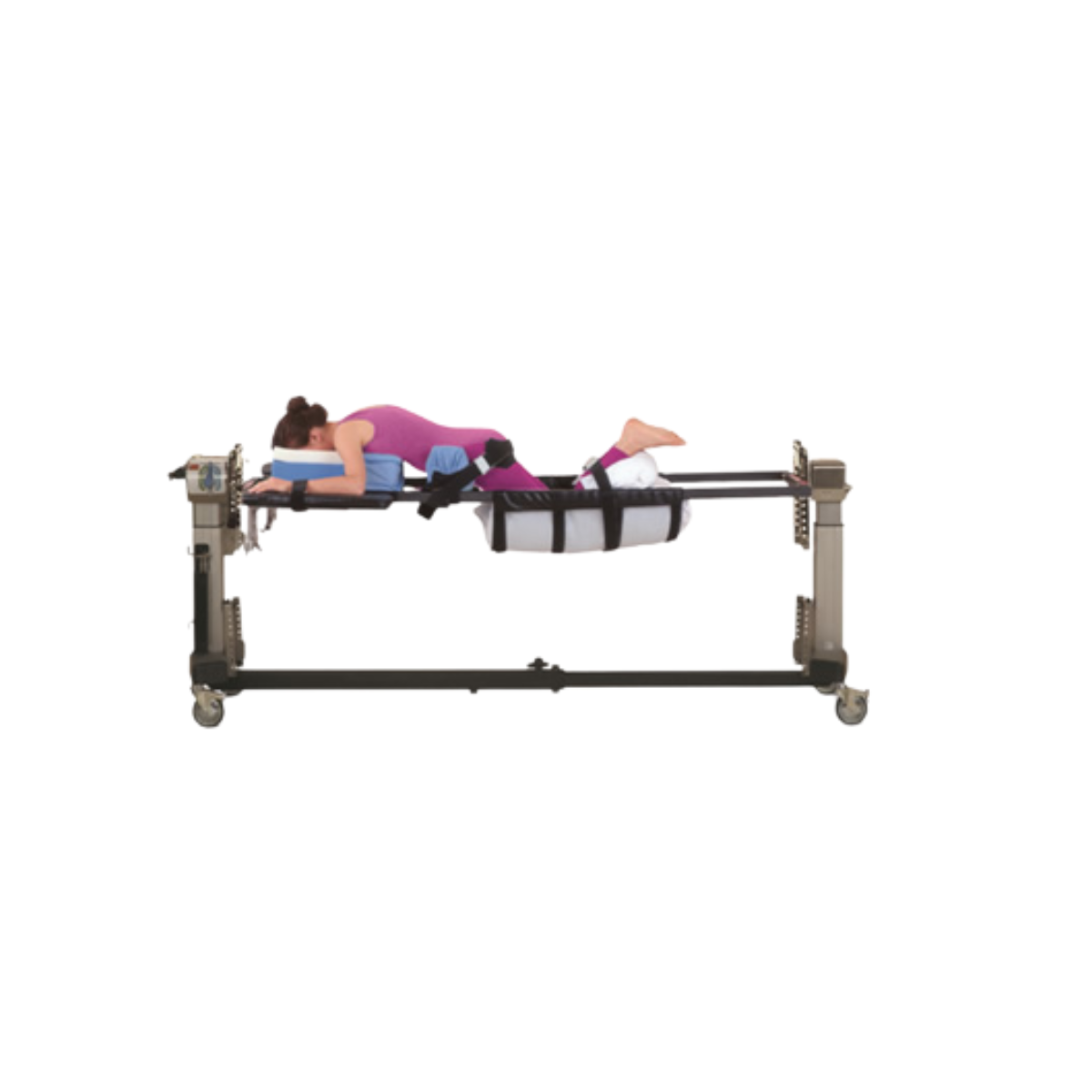

• Prone Positioning:
  • Primary for spinal surgery.
• Supine Positioning:
  • Achieved by mounting a short supine operating top on the frame.
