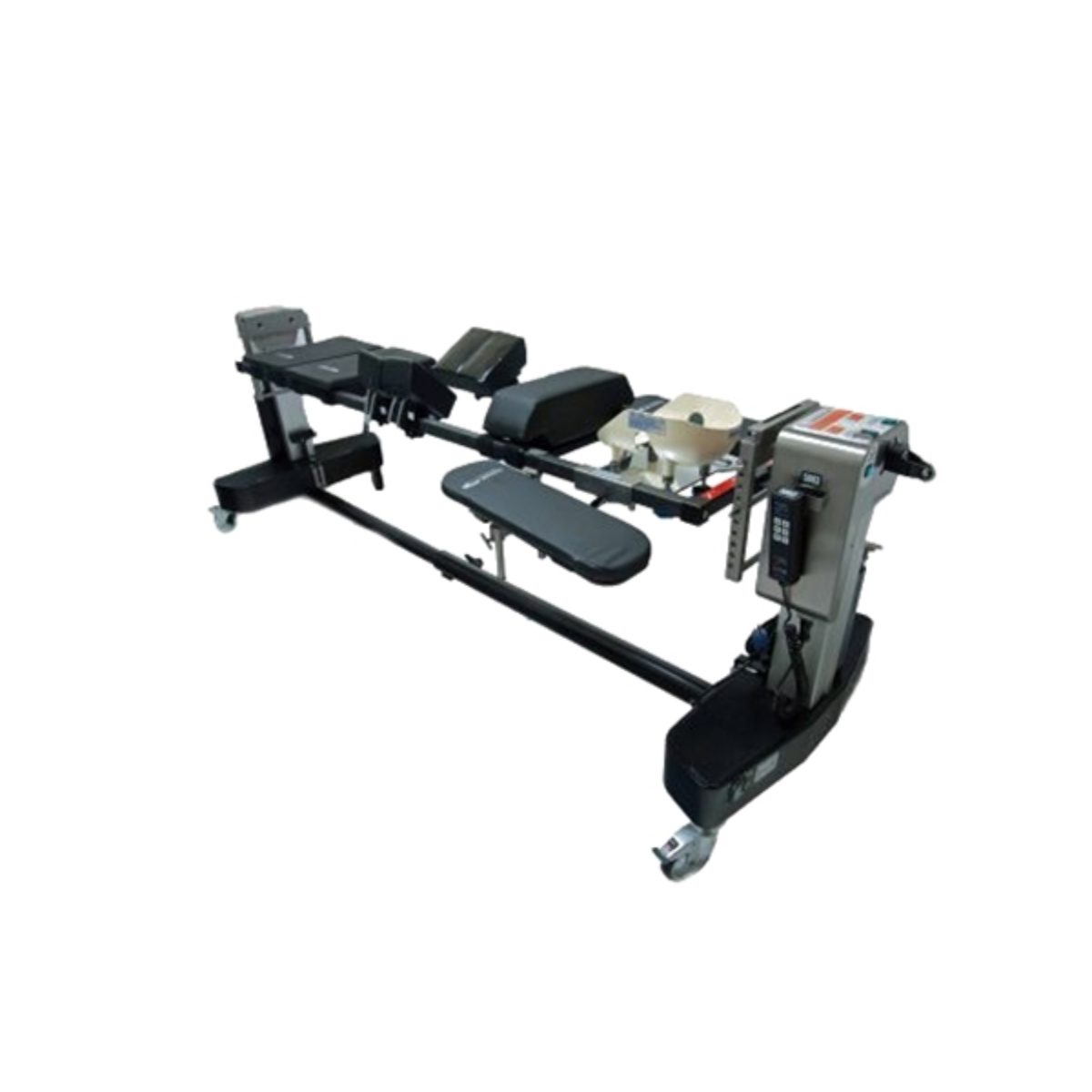

Mizuho OSI Modular System
The Mizuho OSI Modular System is a state-of-the-art, versatile platform for surgical procedures, designed around the Advanced Control Base. This primary component of the Modular Table System (MTS) easily interfaces with a C-arm and supports three interchangeable tops tailored for various surgical applications. It offers precise, electric-powered table functions including height adjustments, Trendelenburg and reverse Trendelenburg positioning, and lateral tilt—all with smooth, controlled movements.
Key Features
- Advanced Control Base:
- Primary component designed for modular integration with interchangeable tops (e.g., for spinal, imaging, trauma, endourology, and maximum access lateral procedures).
- Precision Control & Movement:
- Table Functions: Table up/down, Trendelenburg/reverse Trendelenburg, and lateral tilt (left/right).
- Maximum Tilt Torque: 55 ft-lb
- Maximum Brake Torque: 95 ft-lb
- Powered Tilt Range: 25° ±3°
- Trendelenburg Range: 10–11° ±3°
- Robust Construction & Mobility:
- Equipped with an electric on/off switch and casters (three locking and one steerable) for easy maneuverability.
- Retracts from 102” to 68” for efficient storage.
- Features an emergency rotation lock override system and a 180° rotation lock indicator light with a safety lock lighted switch.
- Integrated tilt drive status indicator light and traction pulley enhance operational safety.
- Patient Capacity & Dimensions:
- Supports up to 500 lbs of patient weight.
- Height adjustment range: 34″ to 48″.
- Overall system length: 120” with a retracted length of 102” to 68”.
- Width: 30”.
Detailed Specifications
General Functions
- Movement Functions:
- Table up / table down
- Trendelenburg / reverse Trendelenburg
- Lateral tilt (left/right)
Mechanical & Power Specifications
- Maximum Tilt Torque: 55 ft-lb
- Maximum Brake Torque: 95 ft-lb
- Electric-Powered Operation:
- Includes an on/off switch for controlled functionality.
- Casters:
- 3 locking casters and 1 steerable caster for enhanced mobility.
- Retractable Design:
- Retracts from 102” to 68” for convenient storage.
- Emergency Features:
- Emergency rotation lock override system.
- 180° rotation lock indicator light and rotation safety lock lighted switch.
- Tilt drive status indicator light and traction pulley integrated.
Patient & Table Dimensions
- Patient Weight Capacity:
- Maximum 500 lbs (227 kg)
- Height Range:
- 34 to 48 inches (86.4–122 cm)
- Overall Length:
- 120 inches (305 cm)
- Retracted Length:
- 102” to 68” (259 cm to 173 cm)
- Width:
- 30 inches (76.2 cm)
