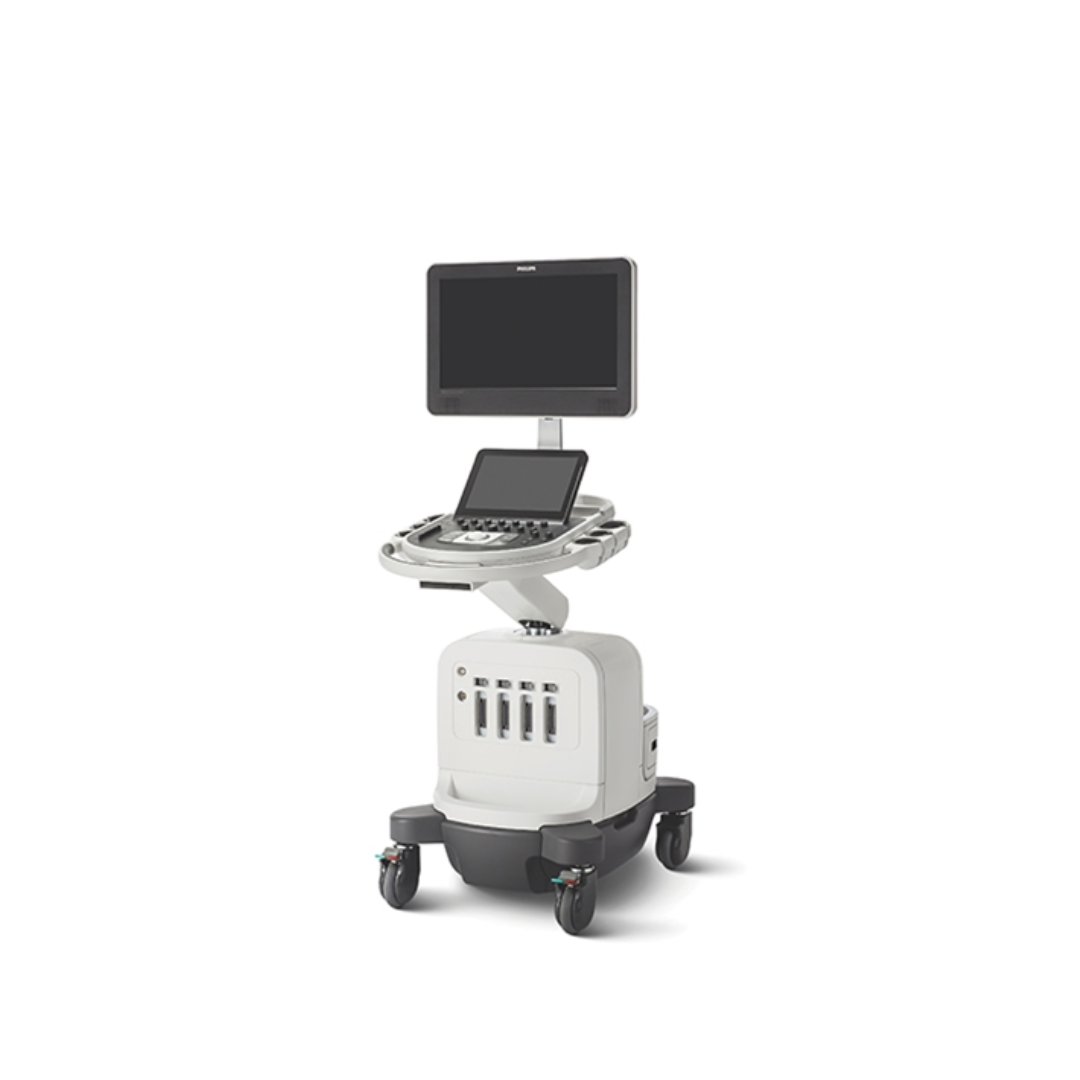

Philips Affiniti 30

Imagine a magical camera that lets doctors see inside your body in beautiful, moving pictures. The Philips Affiniti 30 is just like that! It’s built on the same clever design as some of its bigger brothers, but it’s made just right for many different exams—from checking your belly and blood vessels to looking at a baby in a mom’s tummy.

Here’s what makes it special:

• 4D Live Imaging:
  It shows real-time moving images in 4D, like watching a little movie of your insides, so doctors can see everything clearly as it happens.

• Versatile Uses:
  Whether it’s for your abdomen, blood vessels, muscles, bones, heart, or even tiny parts like the fetus, this system can do it all. It’s great for many areas like obstetrics, gynecology, pediatrics, and more.

• Advanced 3D Features:
  With tools like TrueVue and GlassVue, the Affiniti 30 creates lifelike 3D images. Doctors can even adjust how light and shadow appear to see the tiniest details, such as a baby’s bones and organs.

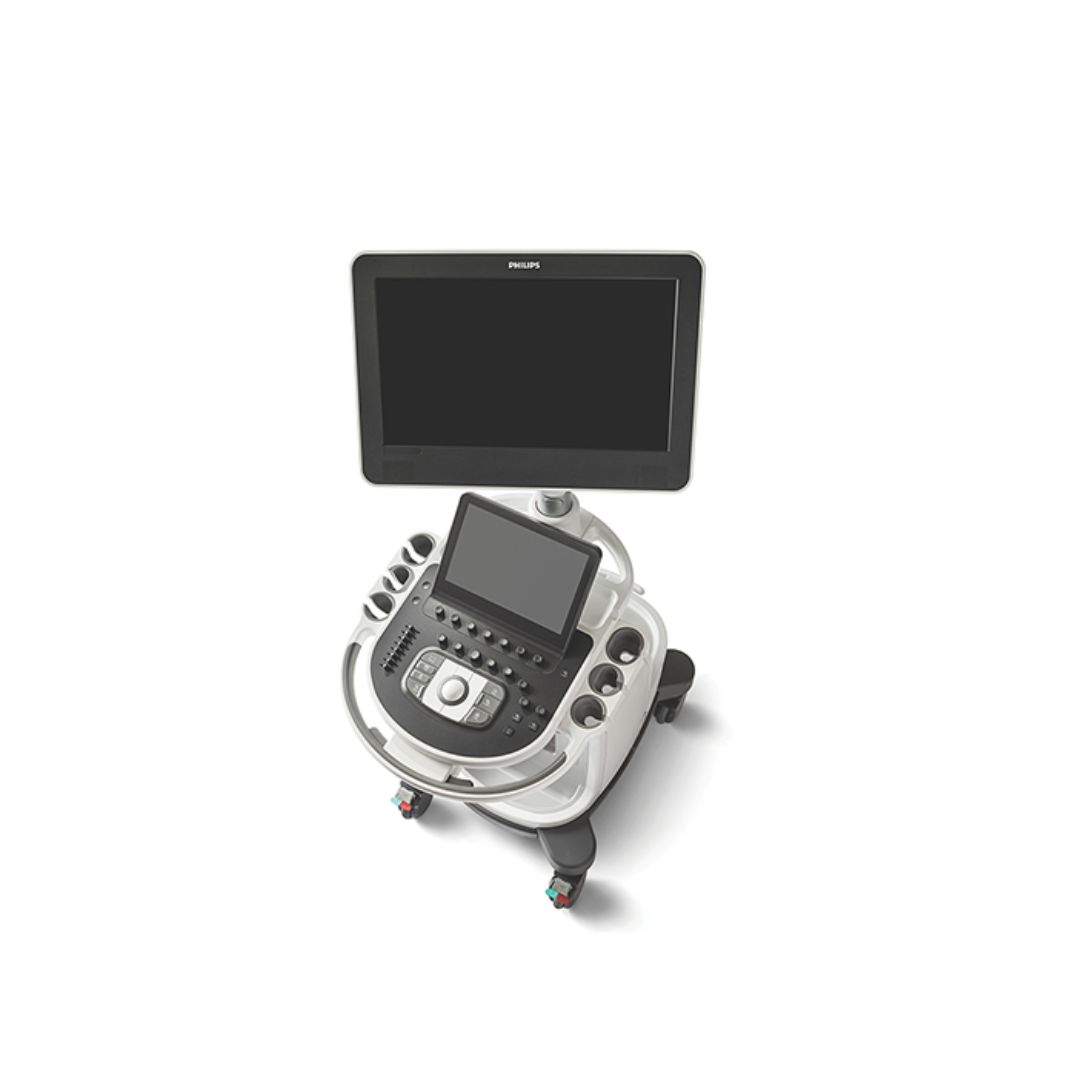

• Bright and Clear Displays:
  It comes with a big 21-inch high-resolution color LCD monitor and a 12-inch touchscreen display. These screens make it easy for doctors to view and interact with the images.

• User-Friendly and Portable:
  Designed with a fully articulating swivel arm and four wheels (two with brakes), this ultrasound is easy to move around. Plus, it weighs only about 184 lbs, making it great for busy hospital environments.

• Smart and Efficient:
  It uses 40% less power than older models and can quickly go to sleep and reboot, which means less waiting time. The system also keeps your settings and patient data safe and ready to use.

• Lots of Connection Options:
  With four active transducer ports and compatibility with over ten different probes, the Affiniti 30 is super flexible. It also offers a range of video and data outputs like HDMI, Ethernet, USB, and more.

Specifications:

• Dimensions & Weight:

  • Height: Maximum 64 in (1626 mm), Minimum 56 in (1422 mm)
  • Width: 22.5 in (572 mm)
  • Depth: 38.7 in (983 mm)
  • Weight: 184.4 lb (83.6 kg)

• Control Panel:

  • Monitor Size: 21.5 in
  • Movement: Swivels 180°
  • Height Adjustment: 8 in (20.3 cm)

• Electrical:

  • Nominal Input Voltage: 100-240 VAC, 50/60 Hz
  • Maximum Power Consumption: 289 VA (depending on system configuration)

• Video and Output Options:

  • Options include HDMI, Ethernet, USB, Wireless, Audio, and Composite Video
  • Monitor Resolution: 1920 x 1080
  • Export Options: DICOM, USB, JPG, AVI
  • DICOM Options: Store, Print, MPPS, Query/Retrieve, Structured Reports, Worklist

• Storage & Memory:

  • Hard Drive: 512 GB
  • Maximum Cine Memory: 2,200 Frames

• Imaging Performance:

  • Maximum Depth: 30 cm
  • Max Frame Rate: 1400 fps
