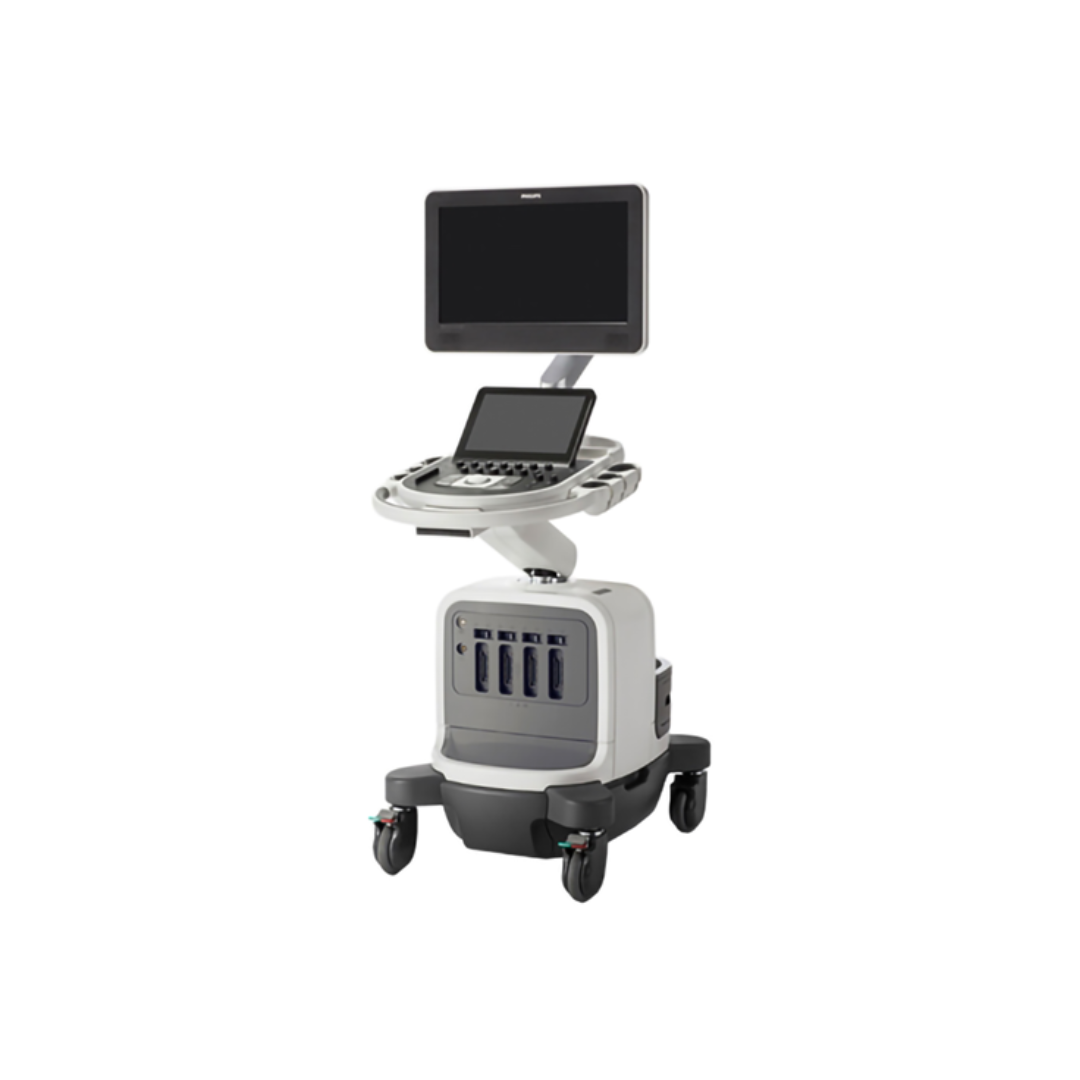

Philips Affiniti 70

The Philips Affiniti 70 Ultrasound Machine is a state-of-the-art, high-end imaging system designed to deliver exceptional diagnostic performance. Built on the acclaimed Philips Epiq platform, this advanced ultrasound system combines innovative features with unparalleled image quality for a wide range of clinical applications—from abdominal and vascular exams to cardiology, obstetrics, and pediatrics.

Key features of the Philips Affiniti 70 include:

• Advanced Imaging Capabilities:

  • Delivers superior 3D and 4D imaging with detailed rendering using TruVue technology, which adjusts light and shadow for crisp, realistic images.
  • Incorporates a single Crystal PureWave Transducer for enhanced precision and clarity.
  • Includes ShareWave elastography for improved tissue characterization and assessment.

• User-Friendly Design:

  • Comes with a 21.5” wide flat panel LCD display monitor and a 12-inch tablet-like touchscreen, making image review and system navigation effortless.
  • Features a fully articulating arm and four active transducer ports, ensuring maximum flexibility and compatibility with over ten different probes.

• Enhanced Doppler and Imaging Technologies:

  • Equipped with advanced Doppler imaging tools such as Tissue Doppler Imaging (TDI), Tissue Harmonic Imaging (THI), and high-PRF Pulse Wave Doppler.
  • Offers Tissue Aberration Correction (TAC) and Left Ventricular Opacification (LVO) for improved diagnostic accuracy.
  • Utilizes coded beamforming, steerable Continuous Wave (CW) Doppler, and auto Doppler optimization for precise blood flow analysis and cardiac evaluation.

• Robust Specifications and Connectivity:

  • Dimensions & Weight: Maximum height 64 in (1626 mm), minimum height 56 in (1422 mm), width 22.5 in (572 mm), depth 38.7 in (983 mm), and weight 184.4 lbs (83.6 kg).
  • Control Panel: 21.5-inch monitor with 180° movement and 8-inch height adjustment for optimal viewing angles.
  • Electrical & General Features: Operates on 100-240 VAC (50/60 Hz) with a maximum power consumption of 289 VA. Offers versatile video and data outputs including HDMI, Ethernet, USB, Wireless, Audio, and Composite Video.
  • Data & Storage: Comes with a 512 GB hard drive, supports a maximum cine memory of 2,200 frames, and offers export options (DICOM, USB, JPG, AVI) along with robust DICOM compatibility (Store, Print, MPPS, Query/Retrieve, Structured Reports, Worklist).
  • Performance: Achieves a maximum imaging depth of 30 cm and a max frame rate of 1400 FPS, ensuring rapid and accurate diagnostics.

This advanced ultrasound system is perfect for healthcare providers who demand high performance, reliable diagnostics, and cutting-edge technology in one compact and user-friendly package. Its robust features and connectivity options make it an ideal choice for busy clinical environments looking to enhance patient care and streamline workflow.
