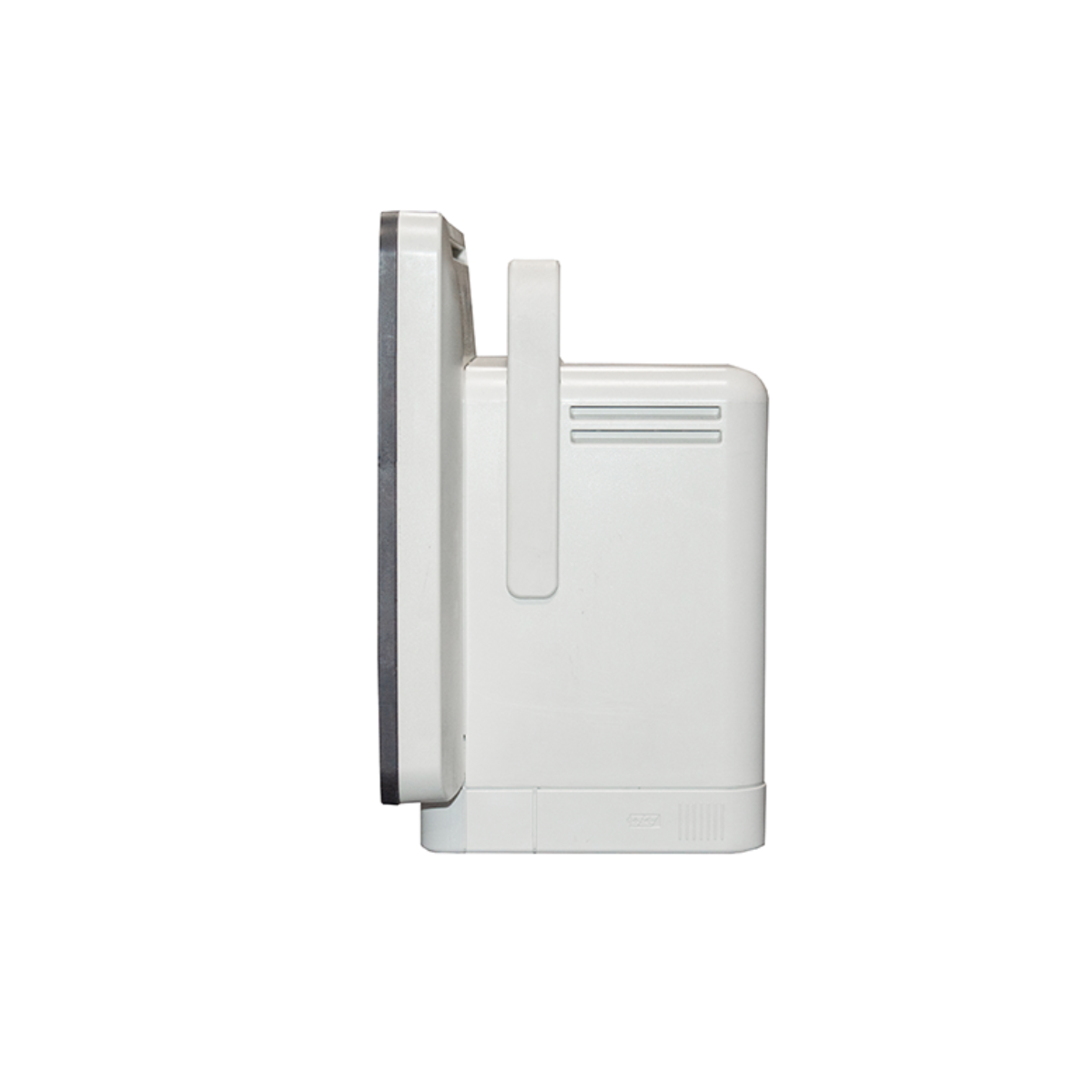

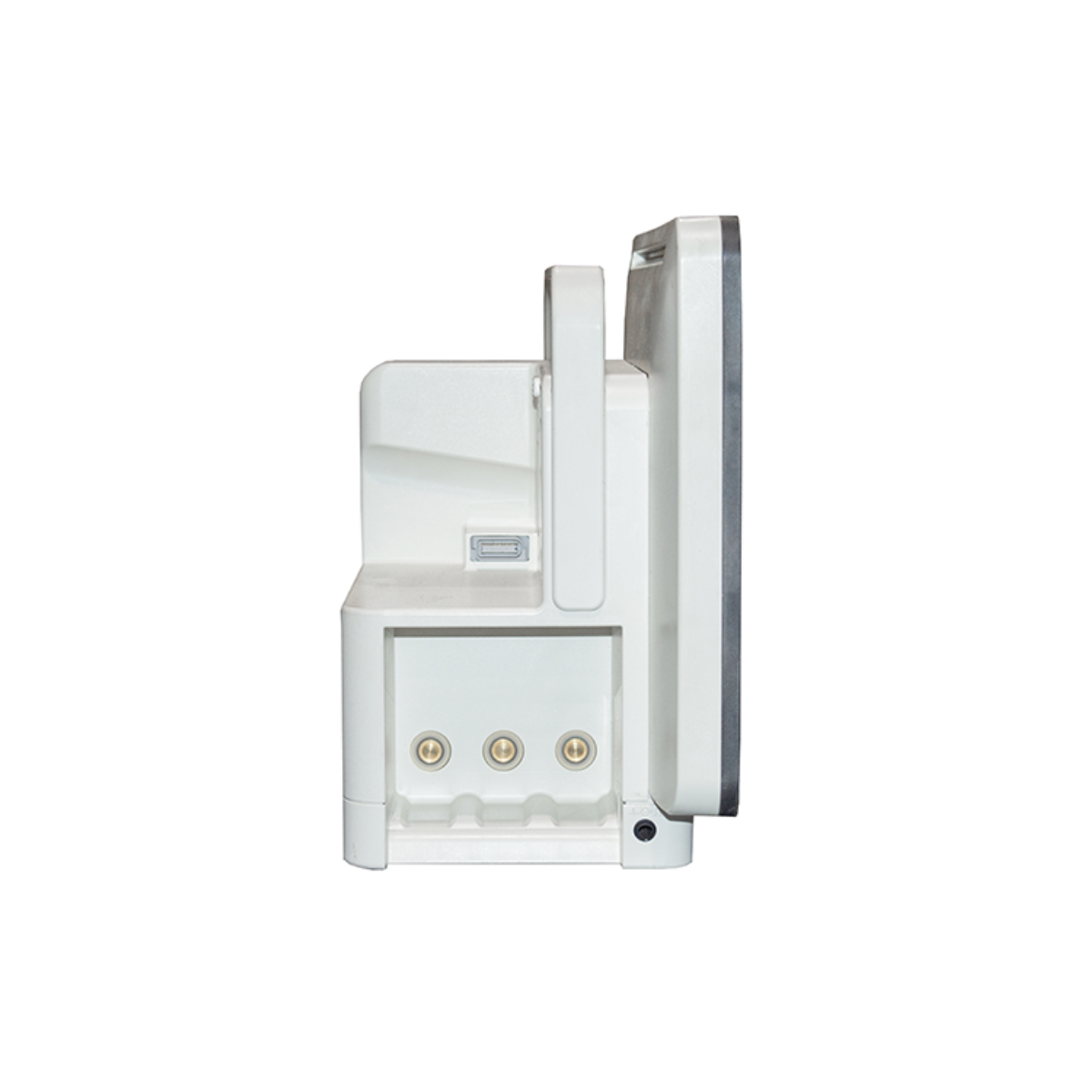

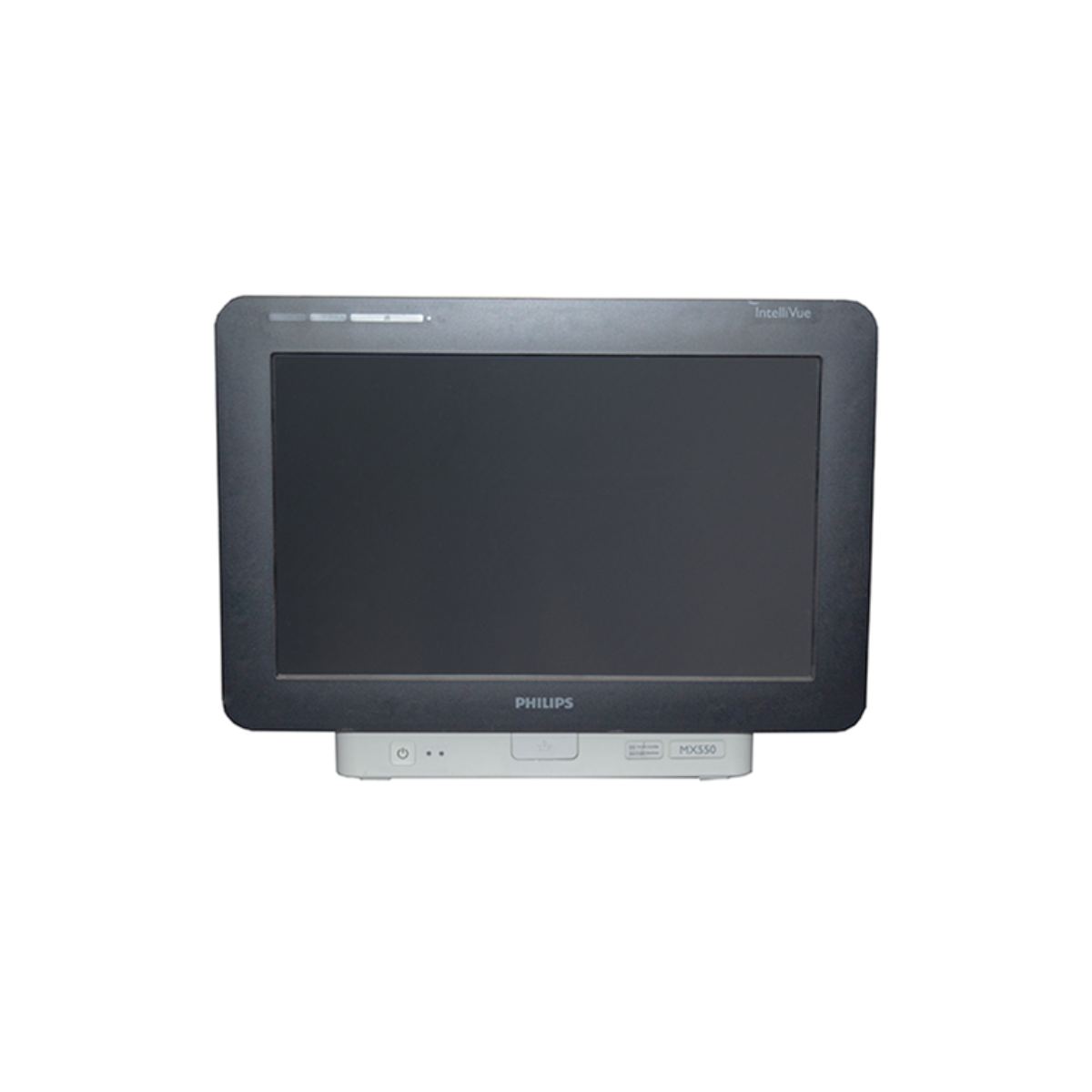

Philips IntelliVue MX550

Philips IntelliVue MX550

Meet the Philips IntelliVue MX550—a versatile, high-performance patient monitor designed with the busy clinician in mind. This monitor not only tracks a wide range of vital signs but also offers a truly flexible workflow that adapts to your unique clinical setting.

At the heart of the MX550 is a crisp 15-inch touchscreen interface. Whether you’re adjusting patient parameters or simply reviewing data, the large display makes it effortless to see everything at a glance. The screen’s brightness automatically adjusts to ambient light conditions, ensuring clarity whether you’re working in a dim room or a brightly lit environment.

Part of Philips’ Multi-Measurement Module (MMS) system, the MX550 opens the door to an array of plug-in modules. This means you can customize the monitor to measure everything from anesthesia and intensive care parameters to cardiac, neonatal, and general care metrics. If you’re exploring the full range of Philips monitors, you might also be interested in the MX700, another stellar member of the IntelliVue family.

What Stands Out at a Glance:

• Flexible & Portable: Designed for easy transport and adaptable to various clinical environments.
• Easy Data Sharing: Seamlessly integrates with your EMR to keep patient information at your fingertips.
• Wide Touchscreen Display: A 12”–15” screen that delivers clear, detailed information quickly.
• Ambient Light Adjustment: Automatically tunes the display for optimal readability in any setting.
• Advanced Clinical Solutions: Summarizes and visualizes data to support rapid clinical decision-making.
• Customizable Monitoring: Advanced options let you tailor the system around your specific workflow.

Specifications

Module Dimensions & Weights:

• Cardiac Output Module:

  • Width: 1.4 in (36 mm)
  • Height: 4.1 in (103.5 mm)
  • Depth: 4.3 in (110 mm)
  • Weight: 225 g (7.9 oz)

• Spirometry Module:

  • Width: 1.4 in (36 mm)
  • Height: 4.1 in (103.5 mm)
  • Depth: 4.3 in (110 mm)
  • Weight: 250 g (8.8 oz)

• SpO₂ Module:

  • Width: 1.4 in (36 mm)
  • Height: 4.1 in (103.5 mm)
  • Depth: 4.3 in (110 mm)
  • Weight: 200 g (just under 8.8 oz)

Environmental Conditions:

• Temperature Range:

  • Operating: 0 – 40°C (32 – 100°F)
    (Note: When charging the battery, with the M3002A mounted, or using the Smart Hopping Interface, the range is 0 – 35°C or 32 – 95°F.)
  • Storage: -20 – 60°C (-4 – 140°F)

• Humidity Range:

  • Operating: 15% to 95% RH (noncondensing)
  • Storage: 5% – 95% RH

• Altitude Range:

  • Operating: -500 to 3000 m (up to 10,000 ft)
  • Storage: -500 to 4600 m (up to 15,000 ft)

Power Specifications:

• Consumption: Less than 70 W (average)
• Line Voltage: 100 – 240 V
• Current: 1.2 – 0.5 A
• Frequency: 50/60 Hz

Display Screen:

• Size: 15 inch
• Type: 390 mm active matrix color LCD (TFT)
• Resolution: 1280 x 768
• Refresh Rate: 59.9 Hz
• Useful Screen Area: 334.1 x 200.5 mm
• Pixel Pitch: 0.261 x 0.261 mm

Network & Connectivity:

• Network Standard: 10BASE-T and 100Base-TX (IEEE 802.3) with auto-negotiation, supporting both full and half-duplex
• Connector: RJ45 (8-pin)
• Isolation: Basic insulation with a reference voltage of 250 V and a test voltage of 1500 V

USB Interface:

• Standard: USB 2.0 high-speed
• Connector: Standard A receptacle
• Power: Low power port at a minimum of 4.4 V; combined maximum load for all ports is 500 mA
• Isolation: None

Video Interface:

• Connector: DVI-I (supports both digital and analog, single link)
• Digital Video Connector: Single link TMDS
• Analog Video Signals: 0.7 Vpp at 75 Ω
• HSYNC/VSYNC Signals: TTL

Battery Performance:

• Operating Time:
  • With a new, fully charged battery in a basic monitoring configuration, expect about 2.5 hours of operation (with optimum brightness, MMS connected, and NBP measurements every 15 minutes).
  • In an extended configuration—with additional modules like MMS extension, recorder, pressure, and temperature modules connected—the operating time is roughly 2 hours.
• Charge Time:
  • Approximately 3 hours when the monitor is switched off.
  • Up to 5 hours when the monitor is in use, depending on configuration.
