Physio-Control Lifepak 12

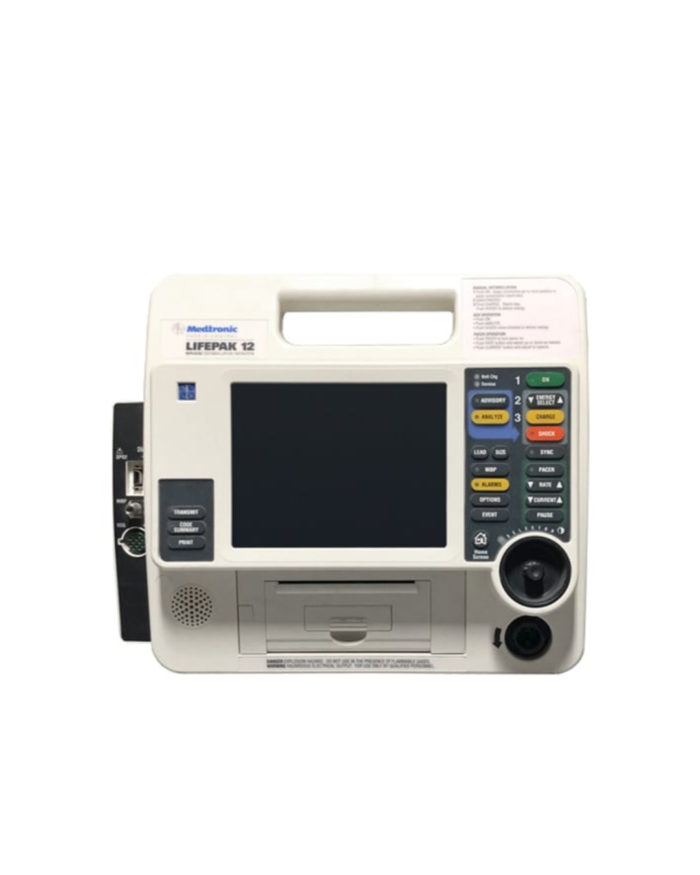

Physio-Control Lifepak 12 Defibrillator/Monitor

The Physio-Control Lifepak 12 is a versatile defibrillator/monitor with integrated pacing options designed to deliver rapid, effective resuscitation while continuously monitoring vital patient parameters. With both manual and semi-automatic (AED) modes, this device provides a comprehensive shock advisory system that analyzes the patient’s ECG and guides the operator through a simple 1-2-3 operation. Its large, high-resolution display allows simultaneous viewing of up to three ECG channels with cascading waveforms, while additional monitoring for heart rate, SpO₂, blood pressure, and other vital signs ensures a complete overview of the patient’s condition. Bluetooth connectivity enables seamless data transfer of ECG readings and patient data, making it an essential tool for modern emergency care.

Key Features

• Dual-Mode Defibrillation:
  • Offers both Manual Defibrillation and AED modes to accommodate different clinical scenarios.
  • In AED mode, the system analyzes the patient’s ECG and advises on shock delivery with voice prompts and on-screen instructions.
• Integrated Pacing & Monitoring:
  • Optional non-invasive pacing and synchronized cardioversion in manual mode.
  • Provides continuous ECG monitoring via 3 or 5-lead sets or multifunctional electrode pads.
• Advanced Display & Connectivity:
  • Features a large LCD screen that can display up to 8 seconds of cascading ECG data.
  • Supports Bluetooth connectivity for transferring ECG and patient data.
• User-Friendly Operation:
  • Simple 1-2-3 operation streamlines resuscitation procedures.
  • Built-in shock advisory system enhances decision-making and safety.
• Robust Data Management:
  • Stores up to 28 critical events with detailed annotations for later review.
  • Offers various operating modes including Advisory, Manual, Archive, Setup, Service, and Inservice modes for comprehensive system control.

Detailed Specifications

Physical Specifications

• Dimensions:
  • Height: 31.7 cm (12.5 in)
  • Width: 38.9 cm (15.3 in)
  • Depth: 21.7 cm (8.5 in)
• Weight:
  • Basic Unit (with QUIK-COMBO cable only):
    • 6.6 kg (14.5 lbs) for the basic model
    • 8.0 kg (17.6 lbs) for the fully featured model
• Battery Options:
  • Options include FASTPAK, FASTPAK 2, NiCd, and SLA batteries with varying capacities.
  • Battery life supports up to 100 hours of monitoring or multiple full-energy discharges.

Display & Monitoring

• Display Options:
  • LCD: 140.8 mm (5.5 in) wide x 105.6 mm (4.2 in) high
  • Electroluminescent (EL): 165.1 mm (6.5 in) wide x 123.8 mm (4.9 in) high
  • User-selectable contrast with a minimum of 4 seconds of ECG and alphanumerics visible.
  • Optional additional waveform display for enhanced monitoring.
• ECG Monitoring:
  • Supports 3-lead, 7-lead, and 12-lead acquisition through various cable configurations.
  • Digital heart rate readout (20–300 bpm) with preset alarm limits.
• Additional Monitoring:
  • Optional modules include SpO₂, non-invasive blood pressure (NIBP), end-tidal CO₂ (EtCO₂), invasive pressure (IP), and ST monitoring.

Operational Modes

• AED Mode:
  • Automatically analyzes the ECG and advises shock delivery.
• Manual Mode:
  • Allows clinicians to select energy levels and perform synchronized cardioversion.
• Archive & Setup Modes:
  • Enable transmission, printing, editing, and deletion of patient records.
• Service & Inservice Modes:
  • Provide diagnostic tests, calibrations, and simulated waveforms for demonstration.

Connectivity & Data Management

• Data Transfer:
  • Capable of transferring data via internal modem, external modems (EIA/TIA), cellular, or serial connections.
• Report Generation:
  • Generates CODE SUMMARY critical event records in multiple formats along with continuous ECG waveform records.
