SciCan STATIM 5000

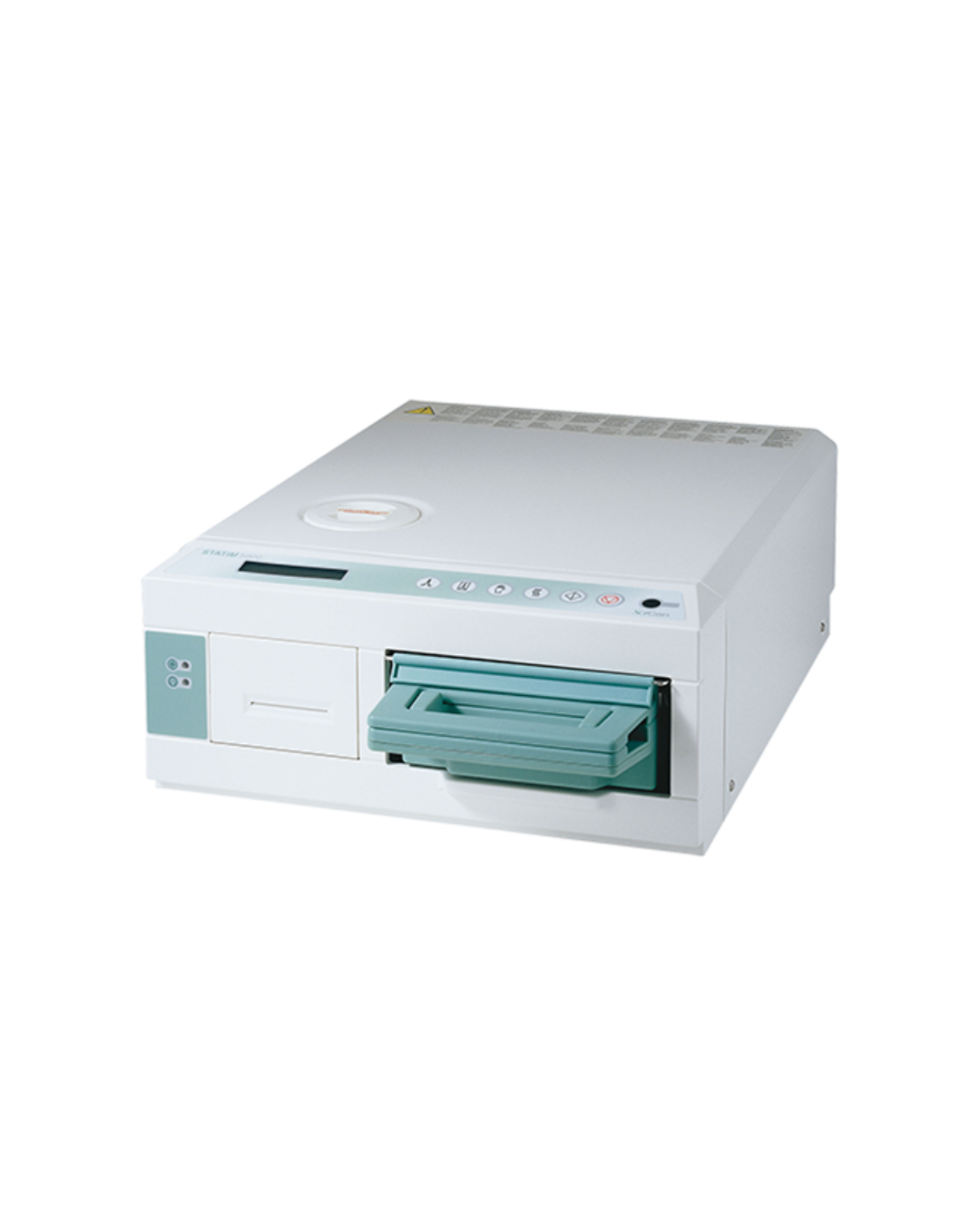

SciCan STATIM 5000 Autoclave

The SciCan STATIM 5000 autoclave is a high-performance sterilization system designed to provide rapid and efficient sterilization of both unwrapped and wrapped instruments. It’s particularly well-suited for environments requiring fast turnover, such as medical and dental practices. Utilizing radiant heat drying technology, the STATIM 5000 ensures instruments are not only sterilized but also dried quickly, enhancing workflow efficiency.

Key Points

• Rapid Sterilization and Drying:
  Capable of sterilizing instruments for immediate use in just 9 minutes, with additional cycles for wrapped items and heavy loads. The unique drying plates in the sterilization chamber use radiant heat to dry instruments, leveraging the heat retained after the sterilization process.

• Efficient Design:
  Features thin stainless steel walls in its fully-removable cassette, allowing for rapid heating and cooling, which reduces the cycle time and enhances throughput.

• Integrated Thermal Printer:
  Includes an internal printer for convenient documentation of sterilization cycles, supporting compliance and record-keeping.

• Compact and User-Friendly:
  Its small footprint makes it ideal for clinics and offices where space is at a premium, while the straightforward design ensures ease of use.

Specifications

• Machine Dimensions:

  • Height: 7.5 inches (19 cm)
  • Width: 16.25 inches (41.3 cm)
  • Depth: 21.75 inches (55.2 cm)
  • Weight: 72 lbs (32.7 kg)

• Cassette Dimensions (Internal):

  • Height: 3 inches (7.6 cm)
  • Width: 7 inches (17.8 cm)
  • Depth: 15 inches (38.1 cm)

• Power Consumption:

  • 1,300 watts

• Printer Details:

  • Type: Thermal Paper
  • Print: 20 Characters Per Line
  • Speed: 1 Line Per Second
  • Capacity: 80 Cycles Per Roll

• Cycle Times:

  • Unwrapped: 9 Minutes
  • Wrapped: 15-18 Minutes
  • Rubber & Plastics: 40 Minutes
  • Heavy Duty Unwrapped: 12 Minutes

• Reservoir Capacity:

  • 1.05 Gallons (4 Liters)
