Skytron 3602

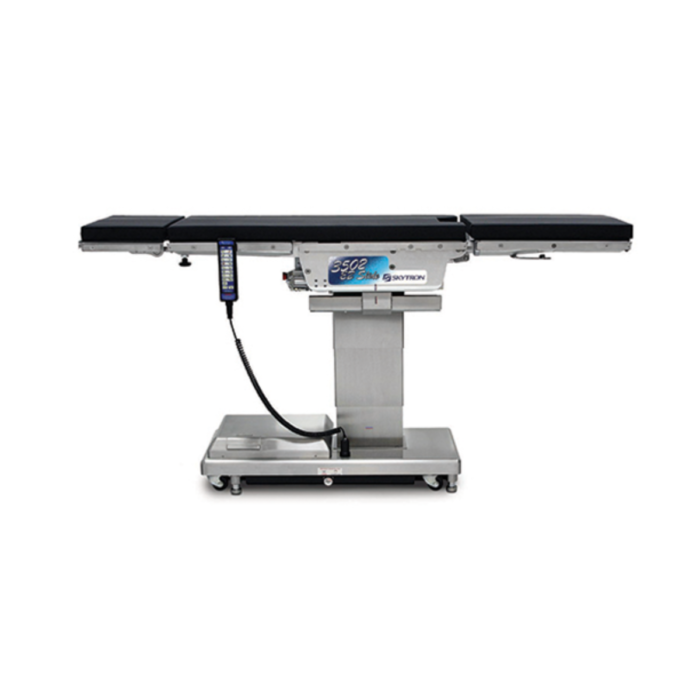

Skytron 3602 Surgical Table

The Skytron 3602 Surgical Table is engineered for optimal imaging and patient positioning, featuring a 23-inch top slide that facilitates smooth movement through the imaging window. This electrohydraulically operated table, with battery backup, delivers a robust 1,000 lb lift and 800 lb articulation capacity, making it suitable for a wide range of surgical procedures. Its design includes removable back and leg sections for quick accessory attachment and versatile positioning, while the power beach chair positioner enables one-touch setup for rapid adjustments. The table also features a 4-point self-leveling braking system for stability on uneven floors and a narrow base that provides ample toe space clearance to reduce surgeon back strain.

Key Features

• Impressive Top Slide:

  • 23-inch tabletop slide with 9 1/2” slide to head and 13 1/4” slide to foot for easy patient movement through the imaging window.

• Robust Load & Articulation Capacity:

  • Supports up to 1,000 lb lift and 800 lb articulation for reliable performance.

• Versatile Positioning:

  • Removable back and leg sections for quick accessory attachment and enhanced positioning flexibility.
  • Power beach chair positioner allows for one-touch setup.

• Enhanced Stability:

  • 4-point self-leveling braking system ensures stability on uneven floors.

• Ergonomic Design:

  • Narrow base provides toe space clearance to reduce surgeon back strain.
  • Adjustable table height from 24 3/8” to 43 1/4” (620–1,100 mm).

• Advanced Tilt Functions:

  • 30° lateral tilt; 30° Trendelenburg and reverse Trendelenburg.
  • Back up/down: 90°/40° and Leg up/down: 15°/100°.
  • Flex/Reflex: 40°/90°.
  • Manual head section adjustment: 60° up / 90° down.

Detailed Specifications

Dimensions

• Length:
  • Without headrest: 69 1/2” (1,765 mm)
  • With headrest: 82 1/8” (2,086 mm)
• Width:
  • Without side rails: 19 5/8” (500 mm)
  • With side rails: 21 7/8” (555 mm)
• Height:
  • Adjustable from 24 3/8” to 43 1/4” (620–1,100 mm)

Top Slide & Patient Support

• Top Slide:
  • Overall top slide: 23”
  • Slide to head: 9 1/2” (245 mm)
  • Slide to foot: 13 1/4” (335 mm)
• Power Kidney Bridge:
  • 5 3/4” (146 mm) lift

Load Capacity

• Maximum Permissible Load:
  • 1,000 lb (450 kg) lift
  • 800 lb (360 kg) articulation

Movements

• Lateral Tilt:
  • 30° left/right
• Trendelenburg / Reverse Trendelenburg:
  • 30° each
• Back Section:
  • Up/Down: 90°/40°
• Leg Section:
  • Up/Down: 15°/100°
• Flex/Reflex:
  • 40°/90°
• Manual Adjustments:
  • Head Section: 60° up/90° down

Power

• Operation:
  • Operates on line power with battery backup for continuous use.
