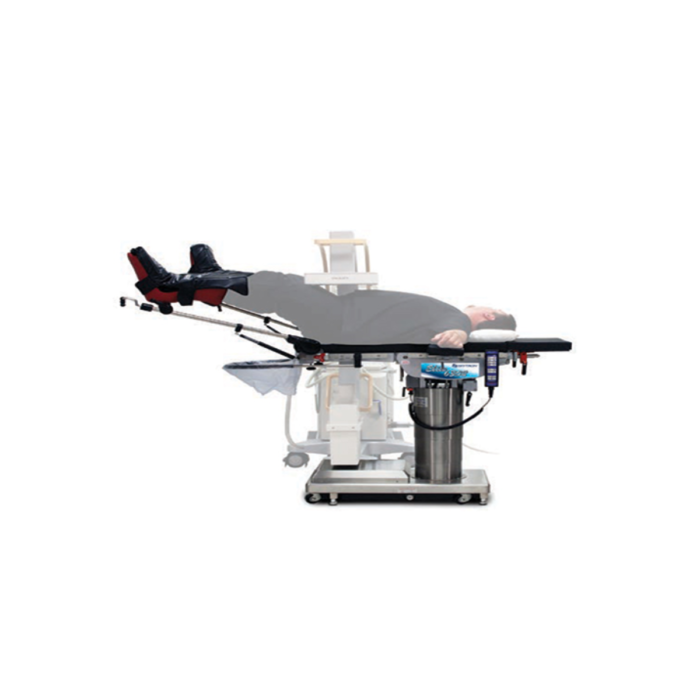

Skytron 6302 Elite Surgical Table

The Skytron 6302 Elite Surgical Table is engineered for maximum flexibility and safety in the operating room. With an impressive 210° top rotation that turns independently of the table base, it offers exceptional maneuverability for optimal imaging access, anesthesia, and patient positioning without the need to reverse the patient. Designed to accommodate bariatric cases, it supports up to 1,000 lb lift and 600 lb articulation capacity. The table features a removable leg section for quick accessory attachment and a power beach chair positioner for one-touch setup. Its durable stainless steel base is easy to clean, and adjustable table height (25″ to 39 7/8″) along with 30° lateral tilt, 30° Trendelenburg, and 30° reverse Trendelenburg functions provide precise positioning even when handling hot loads.

Key Features

• 210° Top Rotation:
  • Independent tabletop rotation provides maximum footroom and unobstructed imaging access.
• Robust Load Capacity:
  • 1,000 lb lift capacity and 600 lb articulation ensure safe support for bariatric and diverse patient sizes.
• Versatile Positioning:
  • Removable leg section for quick accessory attachment.
  • Power beach chair positioner enables one-touch setup.
• Precise Adjustability:
  • Adjustable table height from 25″ to 39 7/8″.
  • 30° lateral tilt; 30° Trendelenburg and 30° reverse Trendelenburg.
• User-Friendly Controls:
  • Durable, back-lit pendant control for intuitive adjustments.
  • Manual control options include a 4.0″ lift for the kidney bridge and head section adjustments (60° up/90° down).
• Durable & Easy to Clean:
  • Stainless steel base designed for longevity and easy maintenance.
• Additional Safety Features:
  • Return-to-level function for anatomically correct repositioning.
  • Flex/Reflex adjustments of 40°/90° and a “Beach Chair” mode for enhanced patient comfort.

Detailed Specifications

Dimensions

• Length:
  • Without headrest: 69 1/2” (1750 mm)
  • With headrest: 82 1/8” (2080 mm)
• Width:
  • Back/seat plate: 19 5/8” (500 mm)
  • With side rails: 21 7/8” (555 mm)
• Weight:
  • 827 lbs (376 kg)

Load Capacities

• Maximum Permissible Load:
  • 1,000 lb (450 kg) lift; 600 lb (270 kg) articulation

Adjustments via Pendant Control

• Height:
  • 25″ to 39 7/8″ (634–1012 mm)
• Lateral Tilt (Left/Right):
  • 30°
• Trendelenburg:
  • 30°
• Reverse Trendelenburg:
  • 30°
• Back Section:
  • Up/Down: 40°/– (return-to-level available)
• Leg Section:
  • Up/Down: 100° (with return-to-level function)
• Top Slide:
  • Head: 9.5 in (24 cm)
  • Foot: 13.5 in (34 cm)
• Flex/Reflex:
  • 40°/90°

Adjustments via Manual Control

• Manual Kidney Bridge:
  • 4.0″ lift (100 mm)
• Top Rotation:
  • 210°
• Head Section:
  • 60° up / 90° down

Additional Features

• Power & Connectivity:
  • Battery-powered operation with line power.
• Imaging & Safety:
  • Full body imaging without special accessories.
  • Designed for safe handling of hot loads.
