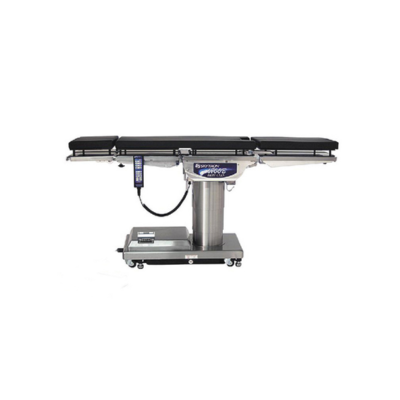

Skytron 6700 Hercules Surgical Table
The Skytron 6700 Hercules Surgical Table is a general-purpose and bariatric operating table engineered for high-demand surgical environments. This table is designed for superior patient positioning and imaging access, featuring an impressive 210° top rotation and robust load capacities. With a 1,200 lb lift and 1,000 lb articulation capacity, the Hercules is ideal for bariatric cases and complex surgical procedures. Optional infrared (IR) remote wireless control provides additional flexibility, while the auto beach chair position and power kidney bridge further enhance patient ergonomics. Removable back and leg sections, along with a 44″ maximum and 23″ minimum table height, ensure versatile and precise positioning in the operating room.
Key Features
- High Load & Articulation Capacity:
- Supports up to 1,200 lb lift and 1,000 lb articulation for bariatric and general-purpose surgeries.
- 210° Top Rotation:
- Offers complete rotation for enhanced C-arm access and improved surgical positioning.
- Advanced Positioning Functions:
- Auto Beach Chair position for quick and efficient setup.
- Power kidney bridge for precise patient support.
- Removable back and leg sections allow for customized configuration.
- Adjustable Table Height:
- Height adjustable from 23″ (min) to 44″ (max), with an extended range (27″ to 48″) when equipped with an X-ray top and 2″ pad.
- User-Friendly Control:
- Optional IR remote wireless control for convenience.
- Pendant-type control unit operable from anywhere around the table.
- Durable & Safe Construction:
- Electro-hydraulic operation at 120V, 60Hz.
- Equipped with standardized side rails, a 15-foot removable power cord with hospital-grade plug, and conductive casters for ease of movement and cleaning.
- Four-point, push-button operated braking system ensures stability and safety.
Detailed Specifications
General Specifications
- Power Requirements:
- 120V, 60Hz, 1 Phase; protected by a 15-amp circuit breaker.
- Power Cord:
- Removable 15-foot power cord with hospital-grade plug.
- Casters:
- Conductive casters allow side movement for ease of operation and cleaning.
- Control:
- Pendant-type control unit operable from any point around the table perimeter; optional IR remote wireless control available.
Load Capacity
- Lift Capacity:
- 1,200 lb (544 kg)
- Articulation Capacity:
- 1,000 lb (454 kg)
Tabletop & Positioning
- Tabletop Radiolucency:
- Entire tabletop is radiolucent for optimal image intensification.
- Height Adjustment:
- 23″ to 44″ (27″ to 48″ with X-ray top and 2″ pad)
- Top Rotation:
- 210° rotation
- Movements:
- Lateral Tilt: 30°
- Trendelenburg/Reverse Trendelenburg: 30° each
- Kidney Bridge Elevation: 5 3/4″ (14.5 cm)
- Back Section: Up 90°, Down 40°
- Leg Section: Down 100°, Up 20°
- Flex/Reflex: 40° Flex and 90° Reflex
- Additional Feature:
- Auto Beach Chair position
Additional Safety & Control Features
- Braking System:
- Four-point, push-button operated braking system for stability.
- Emergency & Backup Controls:
- Complete set of backup controls located on the base in case of control failure.
