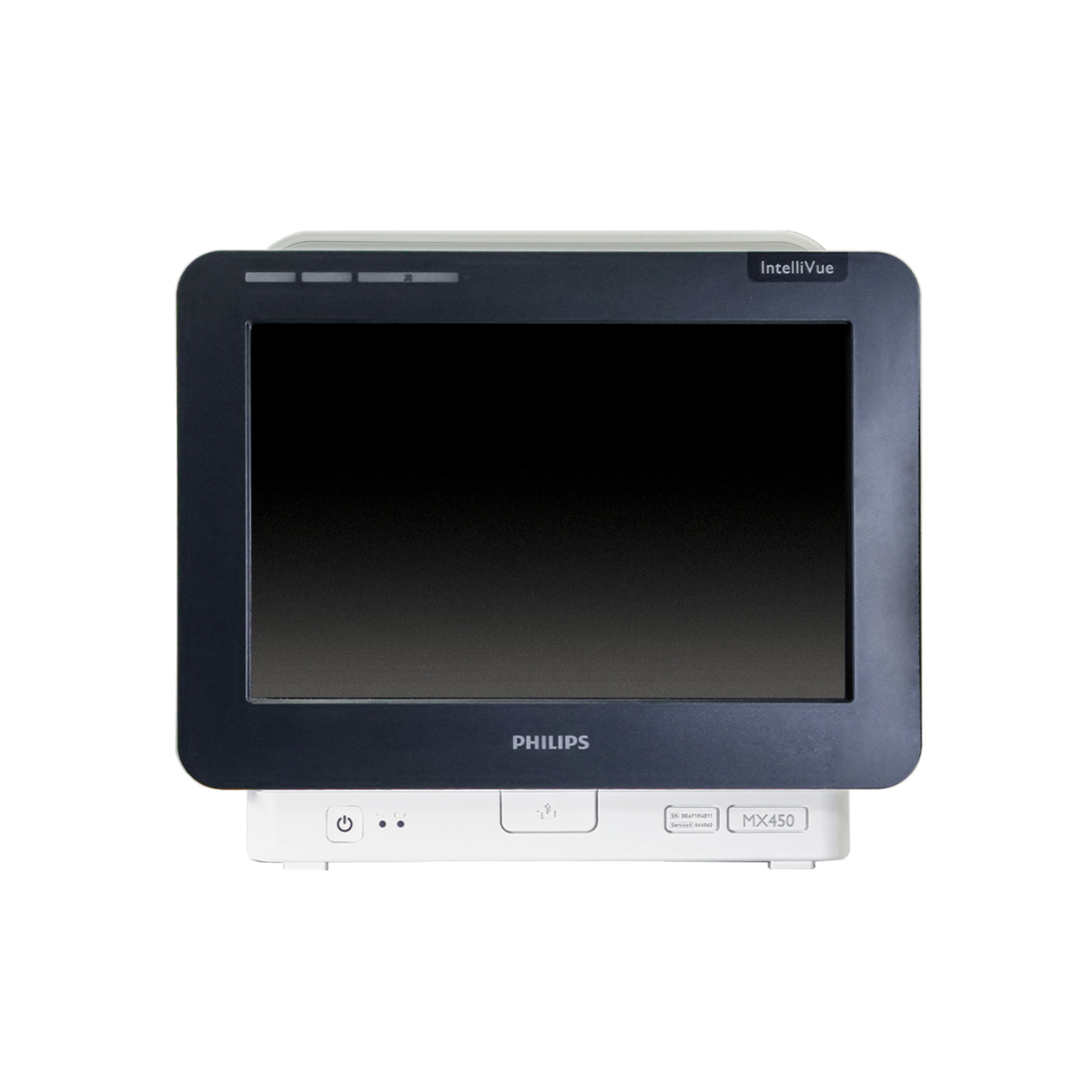

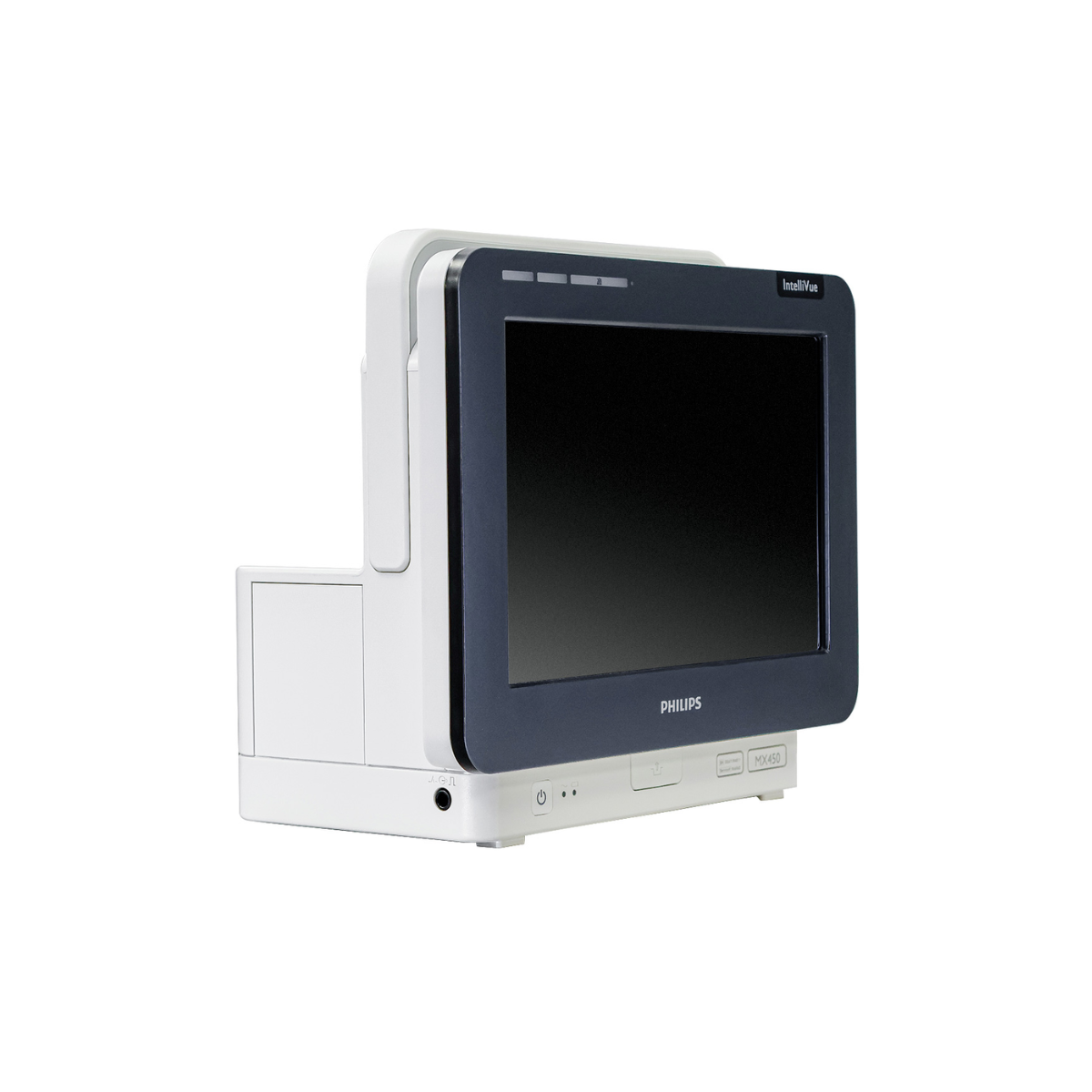

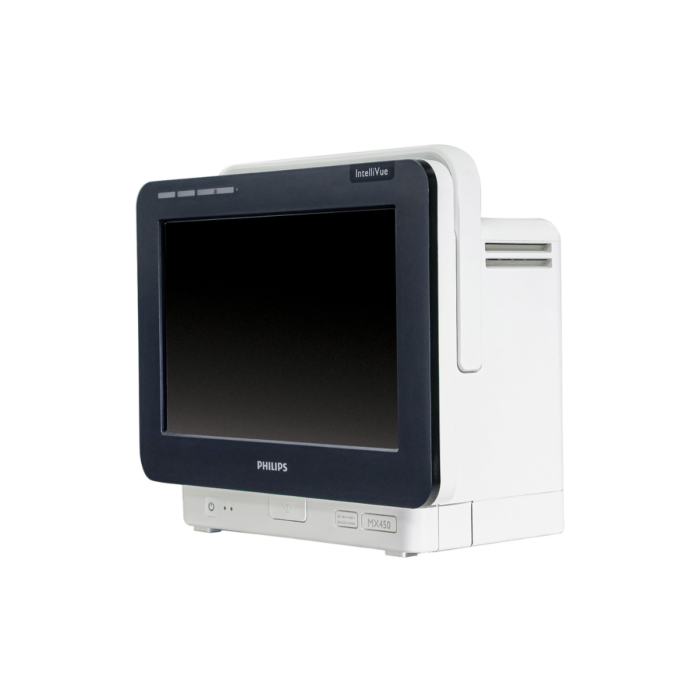

Philips IntelliVue MX450

The Philips IntelliVue MX450 is a versatile and feature-rich patient monitor designed to meet a wide range of clinical needs. It features a spacious 12-inch color touchscreen with an intuitive interface, making it easy for clinicians to operate. A built-in sensor automatically adjusts the screen brightness for optimal readability under various lighting conditions. Its compact, lightweight design makes it ideal as both a bedside monitor and a portable solution for intra-hospital transport.

This monitor supports multiple modules tailored to different areas of care, including anesthesia, intensive care, cardiac, neonatal, and general care. Additionally, the MX450 integrates seamlessly with Electronic Medical Record (EMR) systems, allowing for efficient sharing of patient data across various devices or centralized data stations within your facility. Other monitors in this series include the Philips IntelliVue MX500.

Key Features:

• Comprehensive Data Management: Displays patient data in both tabular format and high-resolution trends.
• Advanced Calculations: Performs drug, ventilation, hemodynamic, and oxygenation calculations.
• User-Friendly Interface: Offers an easy-to-read touchscreen and a simple menu hierarchy for quick access to essential monitoring tasks.
• Wireless Connectivity: Designed to operate within a wireless infrastructure.
• Customizable Display: Features adjustable screen layouts to suit different clinical needs.
• Integrated Recording: Comes with a built-in recorder for capturing important patient data.

Specifications:

Dimensions:

• Height: 11.34 inches (28.8 cm)
• Width: 12.87 inches (32.7 cm)
• Depth: 7.17 inches (18.2 cm)
• Weight: 12.9 lbs (5.9 kg)

Battery:

• Operating Time: Approximately 3–4 hours, depending on the monitoring configuration.
• Charge Time: 3 hours when the monitor is off, and 5 hours when it is in use.

Wave Speeds:

• Standard Waves: Options of 6.25 mm/s, 12.5 mm/s, 25 mm/s, and 50 mm/s with ±5% accuracy (guaranteed for integrated displays only).
• EEG and BIS Waves: Available speeds include 6.25 mm/s, 12.5 mm/s, 15 mm/s, 25 mm/s, 30 mm/s, and 50 mm/s with ±5% accuracy (guaranteed for integrated displays only).

High Resolution Trend Waves:

• Measurements: Captures parameters such as HR, SpO₂, respiration, tcpO₂, pulse, perfusion, tcpCO₂, CO₂, ABP, PAP, CVP, ICP, CPP, BIS, CCO, AWP, anesthetic agents, Delta SpO₂, and inO₂.
• Resolution: Data is sampled at four samples per second.
• Update Speed: Waves are drawn at a speed of 3 cm per minute.

Display (12″ WXGA):

• Type: 310 mm active matrix color LCD (TFT).
• Resolution: 1280 x 800 (WXGA 16:10).
• Refresh Frequency: 59.9 Hz.
• Usable Screen Area: 261.1 mm x 163.2 mm.
• Pixel Size: 0.204 mm x 0.204 mm.

Power:

• Consumption: Less than 70 W on average.
• Line Voltage: 100 to 240 V.
• Current: 1.2 to 0.5 A.
• Frequency: 50/60 Hz.

Trends:

• Resolution Options: Offers 4 hours at 12-second intervals, 24 hours at 1-minute intervals, or 48 hours at 5-minute intervals for 50 numeric parameters.

Events:

• Capacity: Can record either 25 or 50 events over durations of 8 or 24 hours.
• Episode Data: Configurable to capture either 4 minutes of high-resolution trend data, 20 minutes of numeric trend data at 12-second intervals, or 15 seconds of 4-channel wave data at 125 samples per second (snapshot), including all current numerics, alarms, and tops.
