LivaNova Sorin Stockert 3T

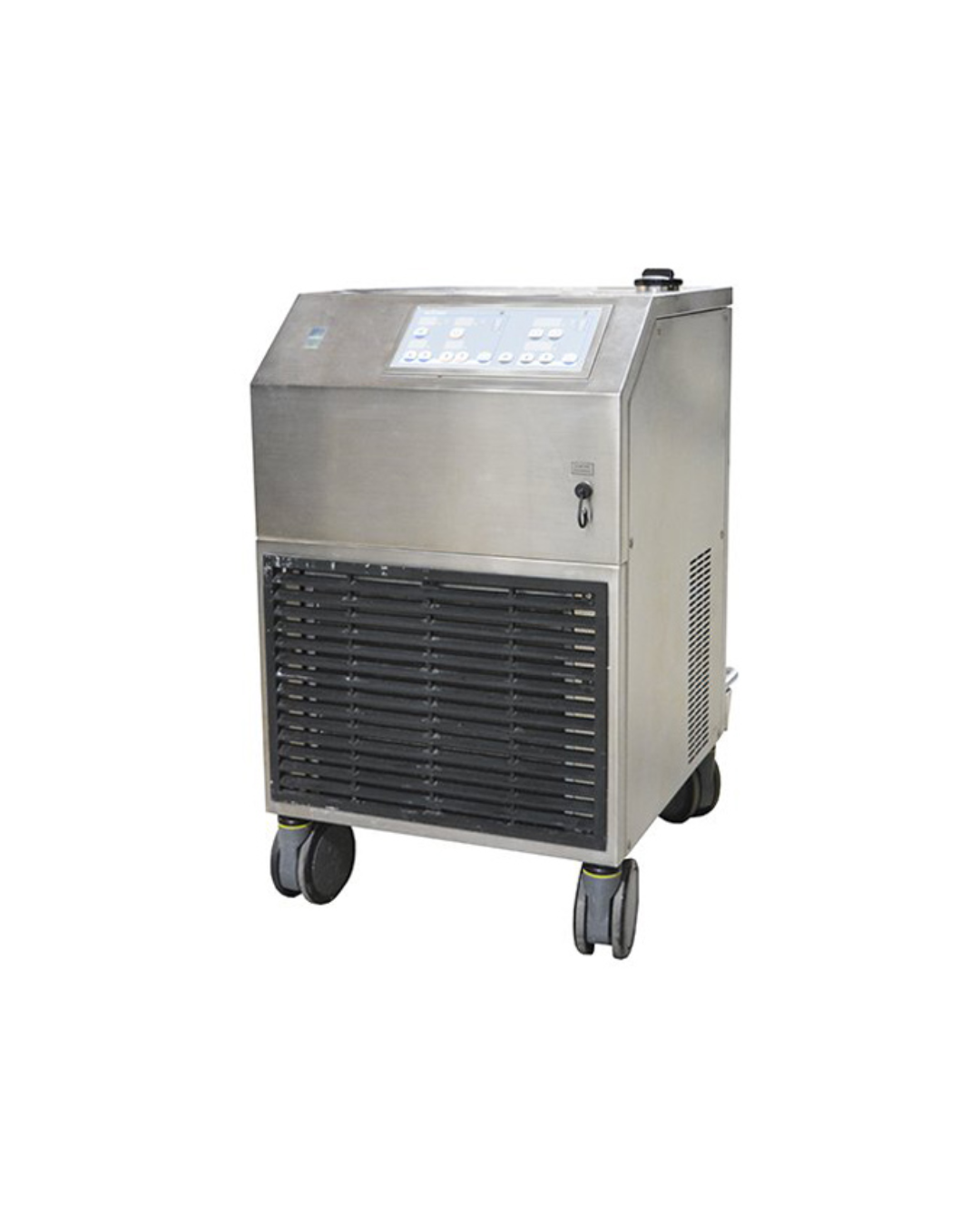

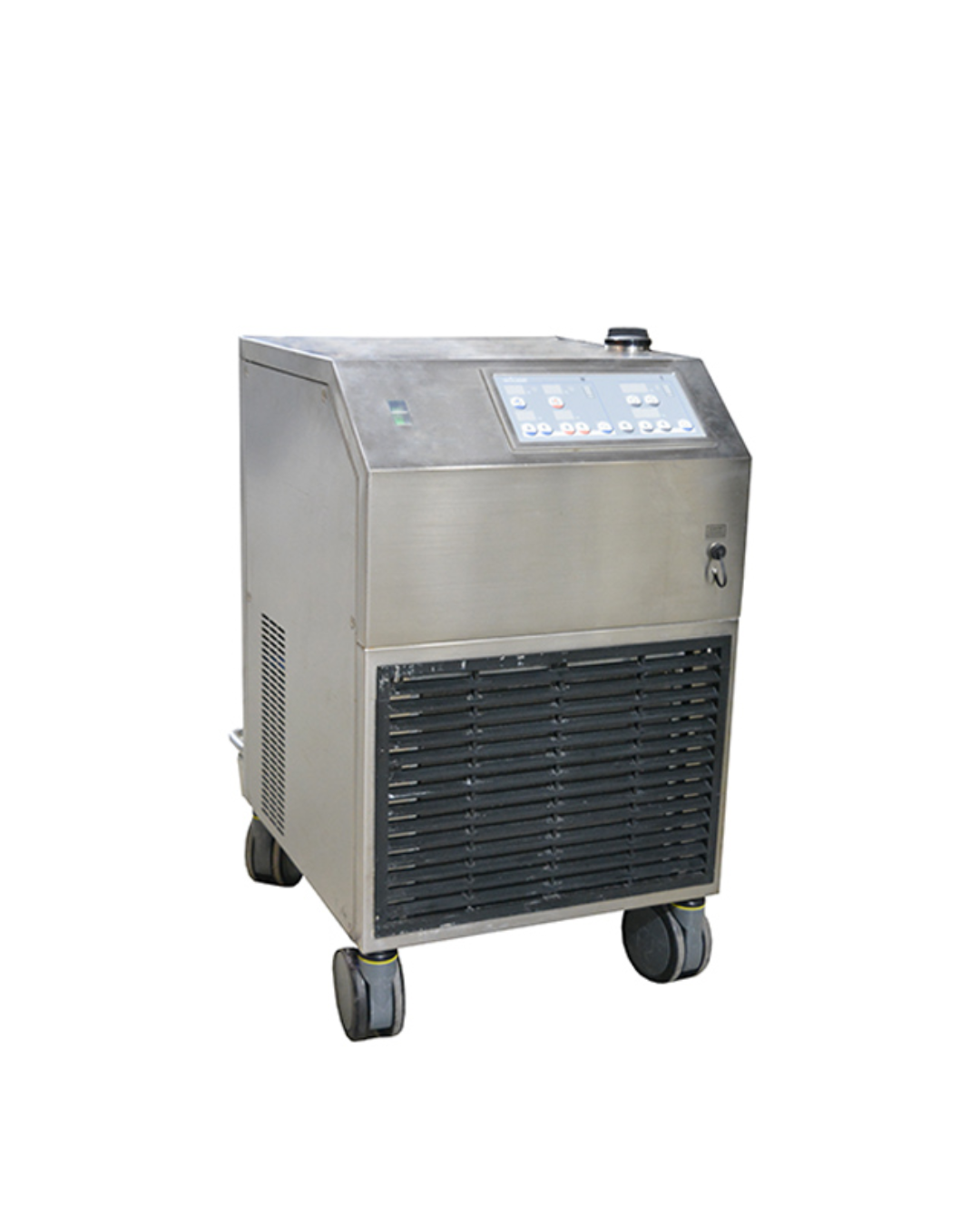

Sorin Stockert 3T Perfusion System

The Sorin Stockert 3T Perfusion System is a heater-cooler unit designed for use during cardiopulmonary bypass, cardiac, vascular, and transplant procedures. This advanced system regulates blood temperature through conductive heat transfer without directly contacting the patient’s blood. It features three separate water tanks—each operating on its own circuit—to independently control warming and cooling for cardioplegia and patient temperature management. The system also allows for easy drainage at the end of procedures, simplifying cleanup.

Key Features

• Rapid Pre-Cooling:
  • Provides short pre-cooling times for quick setup before procedures.
• Dual Water Tanks for Warming & Cooling:
  • Two small volume tanks control the warming and cooling cardioplegia, while a third tank manages patient temperature.
• Independent Safety Systems:
  • Equipped with an independent safety system to prevent water temperature from reaching critical levels.
  • Two-chamber pumps minimize pressure inside the heating chamber.
• Efficient Emptying:
  • Suction capability enables smooth emptying of the heating chamber and tubing at the end of a procedure.
• User-Friendly Operation:
  • At the end of a procedure, the water is easily drained out of the heat exchanger, streamlining the cleanup process.

Detailed Specifications

Physical Dimensions & Weight

• Overall Dimensions:
  • Height: 33.2 in (97.5 cm)
  • Width: 19.8 in (50 cm)
  • Depth: 26.8 in (68 cm)
• Weight:
  • 228.5 lbs (102 kg)

Operating Conditions

• Operating Temperature:
  • 10°C through 30°C
  • Note: Cooling performance may be reduced at temperatures above 25°C.
• Relative Humidity:
  • 30% to 75%
• Operating Atmospheric Pressure:
  • 700 to 1060 mBar

Reservoir & Flow Specifications

• Reservoir Capacity:
  • Patient Tank: Minimum 4.5 L, Maximum 6.5 L (total tank volume: 11.6 to 13.8 L)
  • Other tanks: 1.6 L and 0.8 L each (total of 3 reservoirs)
• Water Flow (Patient Circuits):
  • 13.0 – 16.4 L/min (circuit outlet)
  • 10.8 – 12.6 L/min (5 m + 5 m circuit)
• Water Flow (Cardioplegia Circuit):
  • 7.5 – 9.8 L/min (circuit outlet)
  • 7.4 – 8.7 L/min (5 m + 5 m circuit)
• Water Pressure:
  • Patient circuits: 0.63 – 0.79 bar
  • Cardioplegia circuits: 0.65 – 0.72 bar

Electrical Characteristics

• Power Supply Options:
  • 115 VAC: 16.9 A, 50/60 Hz
  • Optional: 100 VAC (20 A), 230 VAC (10.9 A), 240 VAC (10.5 A)
• Required Outlets:
  • 115 VAC units: 20 amps, AC grounded hospital-grade plug
  • 230/240 VAC units: 15 amps, AC grounded with European plug
• Current Leakage:
  • Under 300 µA for 100/115 VAC
  • Under 500 µA for 230/240 VAC

Safety & Additional Features

• Temperature Control:
  • Water temperature range: 37.4°F to 107.6°F
• Alarm System:
  • Includes high-temperature fluid limit alarms and low fluid alarms (both visual and audible).
• Connections:
  • 1 set of 1/2” quick-connect fittings for the heat exchanger
  • 1 set of 1/8” quick-connect fittings for the blanket
  • 1 set of 1/4” quick-connect fittings for draining (on unit)
  • 1 additional set of 1/2” quick-connect fittings for tubing
