Sorin Stockert Shiley SIII Perfusion System

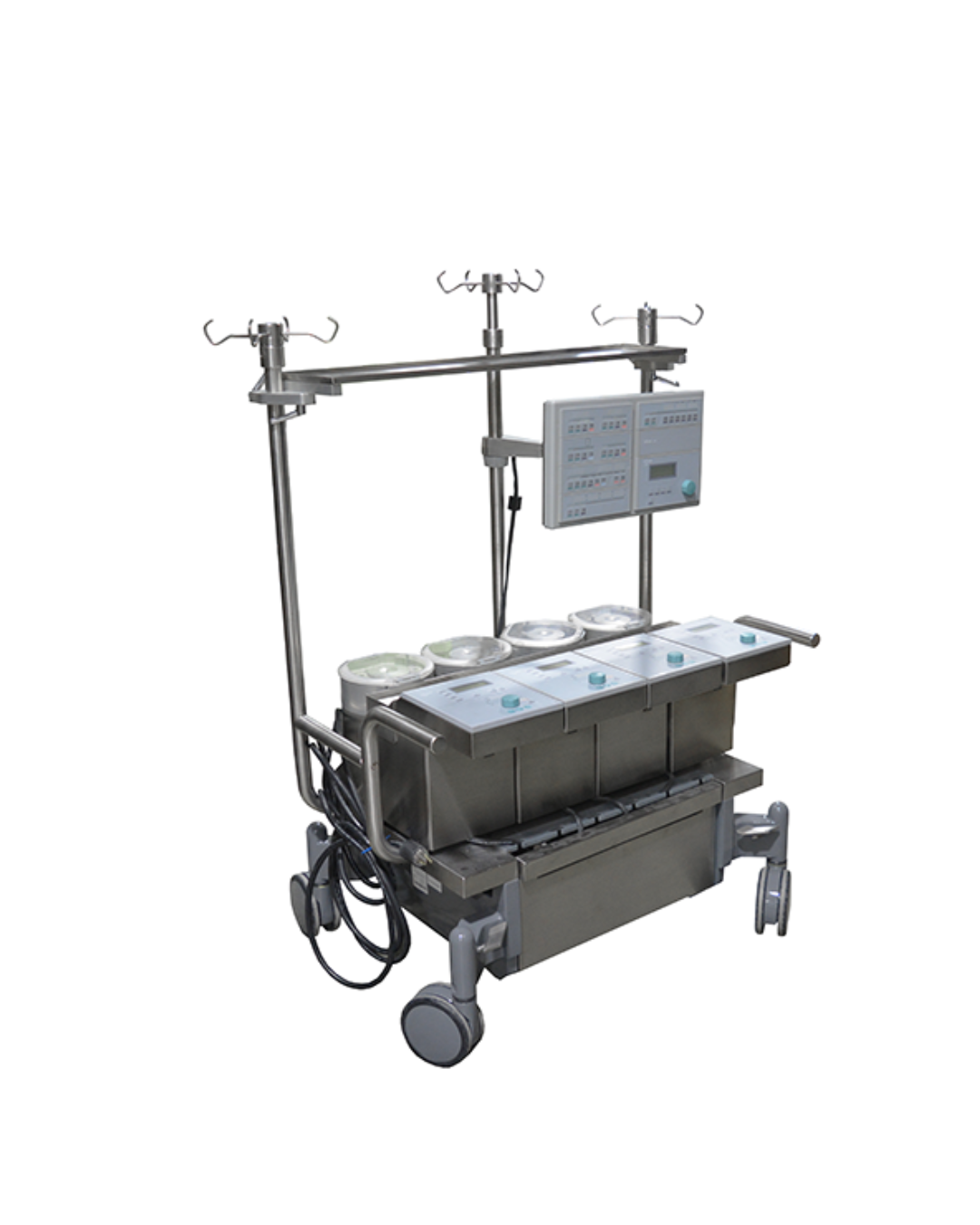

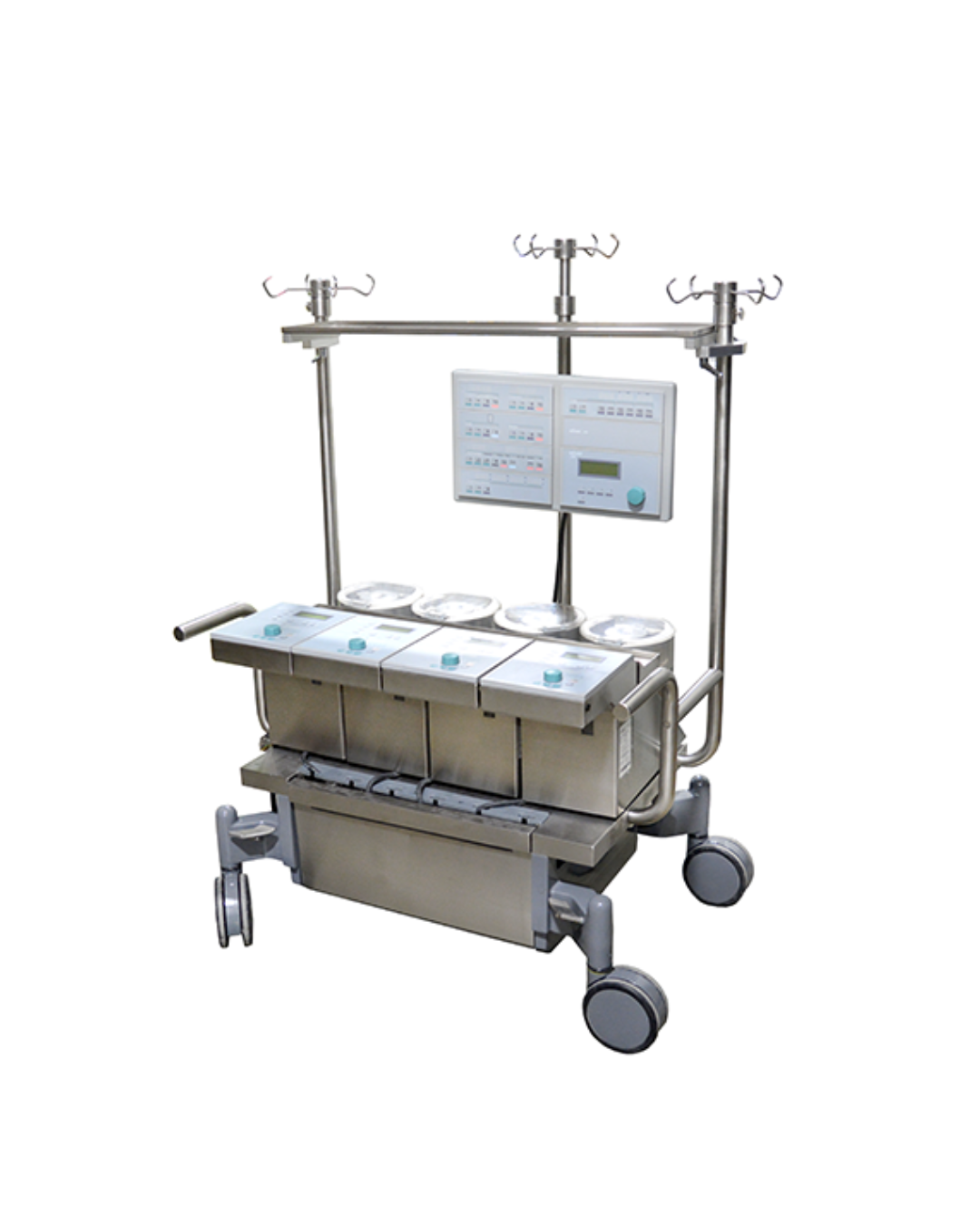

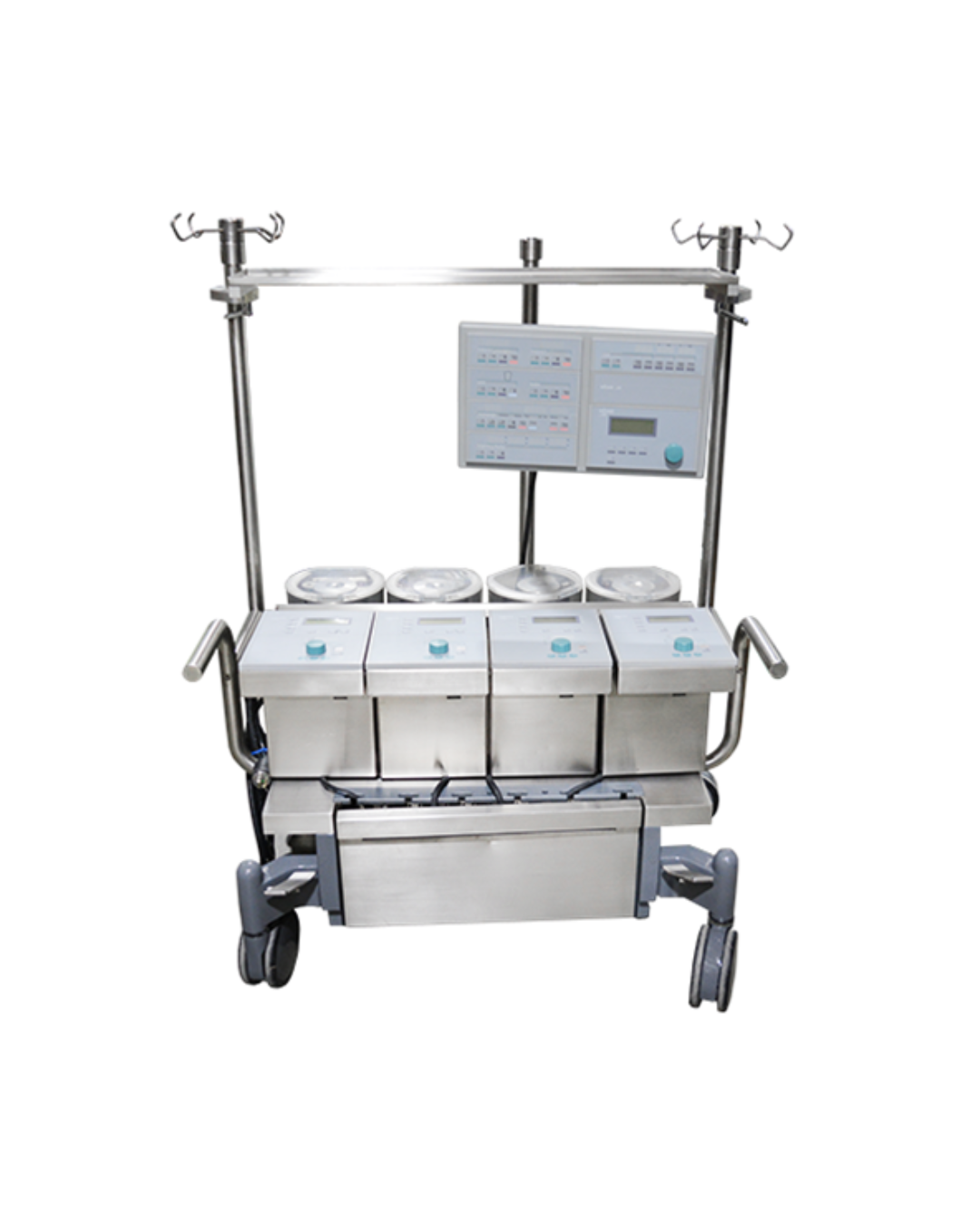

The Sorin Stockert Shiley SIII Perfusion System is the third generation of the perfusion heart-lung machine, serving as the predecessor to the Sorin Stockert S5. This fully modular system is designed to circulate blood through the cardiopulmonary bypass circuit for up to six hours, making it ideal for complex cardiac procedures. Its configurable pumps allow perfusionists to tailor the setup to their specific needs, ensuring optimal performance and safety. The system is comprised of a pump control panel, a central display module, and a control panel, and is fully compatible with the DMS case management system.

Key Features

• Modular Perfusion System:

  • Configurable with three single-head pumps and one double-head pump.
  • Customizable to fit individual surgical needs.

• Comprehensive Monitoring:

  • Includes integrated level control, temperature monitoring, cardioplegia delivery, and timer functions.
  • Equipped with two pressure monitors for accurate perfusion management.

• User-Friendly Interface:

  • Designed for ease of use with an uncluttered control panel and clear display modules.
  • Fully compatible with the DMS case management system for streamlined data management.

Detailed Specifications

Console Specifications

• 3-Pump Console:

  • Height: 700 mm
  • Width: 790 mm
  • Depth: 648 mm
  • Weight: 118 kg

• 4-Pump Console:

  • Height: 700 mm
  • Width: 990 mm
  • Depth: 648 mm
  • Weight: 144 kg

Timer Module

• Operating Voltage: +5 V
• Power Consumption: 3 W
• Counting Range:
  • Timer 1: 0 – 9 min 59 sec or 0 – 9 h 59 min (selectable)
  • Timers 2-3: 0 – 9 h 59 min

Temperature Monitor

• Operating Voltage: +5 V
• Power Consumption: 3 W
• Measurement Range: 0°C to +50°C
• Resolution: 0.1°C
• Accuracy: ±0.2°C
• Display Refresh Rate: 1 Hz

Level Control Module

• Operating Voltage: +5 V
• Power Consumption: 1.5 W
• Accuracy: ±10 mm for the sensor holder’s stop limit level
