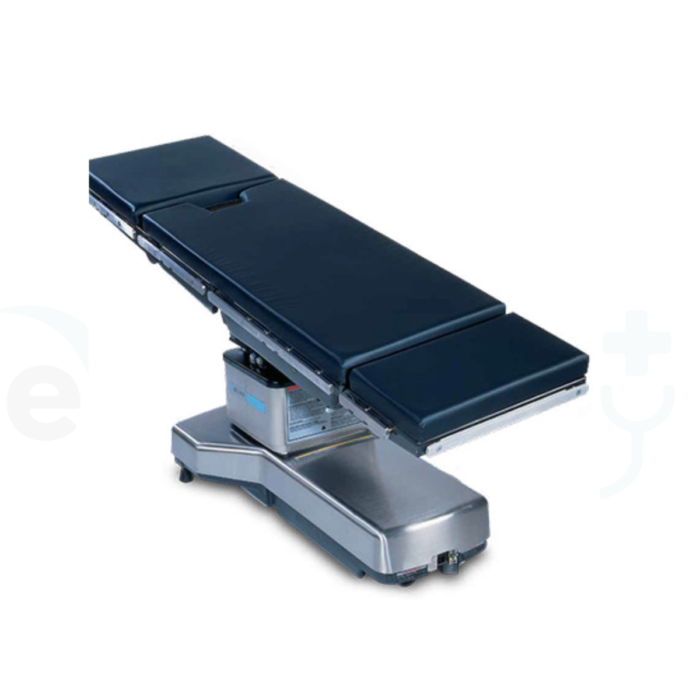

Steris Amsco 3085 R Surgical Table

Steris Amsco 3085 R Surgical Table

The Steris Amsco 3085 R Surgical Table is designed for state-of-the-art operating rooms where seamless integration with diverse OR technologies is essential. Equipped with ACT ENABLED electronic interface circuits, this table enables automatic conversion for reverse patient positioning regardless of headrest location, ensuring commands are accurately interpreted based on the selected orientation. Powered by Bieri Hydraulics, it delivers ultra-precise tabletop articulation that is smooth and accurate—ideal for specialties such as urology and neurology. With the optional orthopedic extension, the table also offers enhanced traction and positioning flexibility for hip and lower extremity procedures. Its innovative T-shaped pedestal design and reverse orientation provide optimal access for the entire surgical team.

Key Features

• Integrated OR Technology:
  • ACT ENABLED electronic interface circuits enable seamless communication with virtually any vendor’s equipment.
• Automatic Reverse Positioning:
  • Automatic conversion functions for reverse patient positioning, regardless of headrest location.
• Ultra-Precise Articulation:
  • Powered by Bieri Hydraulics for smooth, accurate tabletop movement through the full range of positions.
• Orthopedic Extension:
  • Optional extension enhances traction and positioning for hip and lower extremity orthopedic procedures.
• Optimized Access:
  • T-shaped pedestal design and reverse orientation ensure optimal surgical team access.
• User-Friendly Hand Control:
  • Features normal/reverse orientation and return-to-level buttons for effortless operation.

Detailed Specifications

Dimensions

• Table Length:
  • 76″ (193 cm)
• Table Width:
  • 20″ (51 cm)
• Table Height Range:
  • 27″ to 44″ (68.6 – 111.8 cm)

Patient Weight Capacity

• Normal Orientation:
  • 1,000 lb (454 kg)
• Side Tilt & Reverse Orientation:
  • 500 lb (227 kg)

Hand Control Features

• Orientation Button:
  • Toggle between normal and reverse orientations.
• Return-to-Level Button:
  • Instantly resets the table to the neutral position.

Table Movements

• Trendelenburg/Reverse Trendelenburg:
  • 25° / 25°
• Lateral Tilt (Left/Right):
  • 18° / 18°
• Head Section:
  • +90° to –90°
• Back Section:
  • Normal Orientation: +55° to –25°
  • Reverse Orientation: +80° to –105°
• Leg Section:
  • Normal Orientation: +80° to –105°
  • Reverse Orientation: +55° to –25°

Imaging Areas

• Upper Body Imaging Area:
  • Normal Orientation: 28″ x 16″ (448 sq in./2890 cm²)
  • With IA Extender: 36″ x 16″ (576 sq in./3716 cm²)
  • Reverse Orientation (head section reversed): 45″ x 16″ (720 sq in./4645 cm²)
  • Reverse with 36″ Carbon Fiber Fluoro Extension: 36″ x 20″ (720 sq in./4645 cm²)
• Lower Body Imaging Area:
  • Normal Orientation: 33″ x 14″ (462 sq in./2980 cm²)
  • Normal with Head Section Reversed: 45″ x 16″ (720 sq in./4645 cm²)
  • With 36″ Carbon Fiber Fluoro Extension: 36″ x 20″ (720 sq in./4645 cm²)
  • With Fem/Pop Board: 55″ x 16″ (880 sq in./5678 cm²)
