Steris ASC 2000

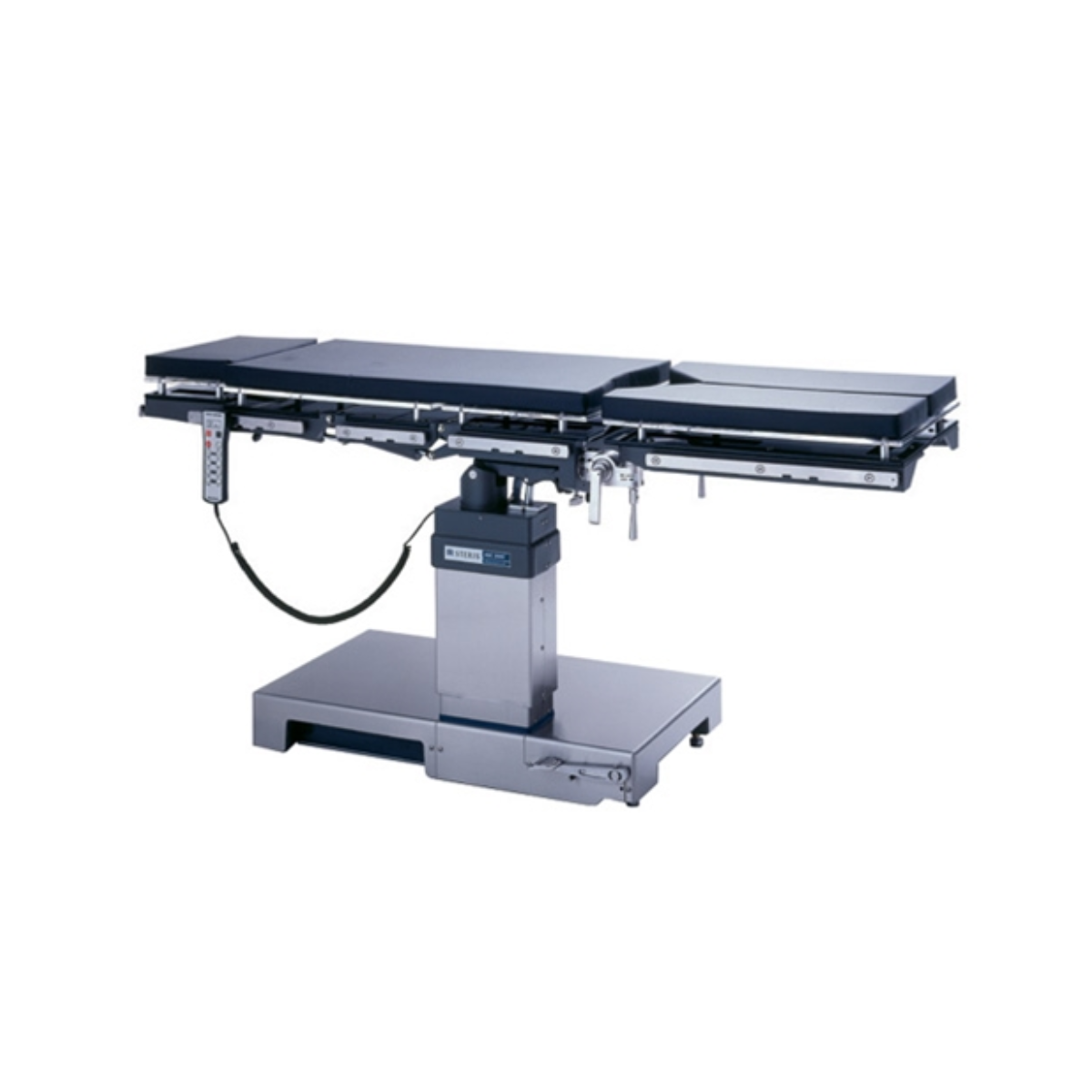

Steris ASC 2000 Surgical Table

The Steris ASC 2000 Surgical Table is a battery-powered, versatile operating table designed for modern ambulatory surgical care facilities. Constructed from high-quality aluminum alloy and stainless steel, the ASC 2000 offers complete patient positioning flexibility while safely supporting patients up to 400 lbs. It features powered lateral tilt, Trendelenburg/reverse Trendelenburg, and adjustable height functions. With manually adjustable headrest and leg sections, a compact 79-inch table length, and a 22-inch width, this table provides an ideal platform for a wide range of surgical procedures.

Key Features

• Versatile Patient Positioning:
  • Powered lateral tilt, Trendelenburg (45° ± 1°), and reverse Trendelenburg (20° ± 1°) enable precise positioning.
• Adjustable Height:
  • Height can be adjusted from 27.5″ to 41″ (69.9 to 105.5 cm) for optimal ergonomics.
• Robust Construction:
  • Built with high-quality aluminum alloy and stainless steel for durability.
• Compact & Efficient Design:
  • Total table length of 79″ and width of 22″ provide ample workspace in ambulatory settings.
• User-Friendly Controls:
  • Equipped with an auxiliary control system featuring toggle switches on the table base for continued operation even during power fluctuations.
• Manually Adjustable Sections:
  • Headrest and leg sections are manually adjustable to enhance patient comfort and surgical access.

Detailed Specifications

Dimensions

• Height (Adjustable):
  • 27.5 to 41 in (69.9 to 105.5 cm)
• Width:
  • 22 in (55.9 cm)
• Length:
  • 79 in (200.9 cm)
• Weight:
  • 485 lbs (220 kg)

Maximum Patient Weight

• Capacity:
  • 400 lbs (181 kg)

Table Movements

• Height Adjustment:
  • 27.5″ to 41″ (69.9 to 104.5 cm)
• Trendelenburg:
  • 45° ± 1°
• Reverse Trendelenburg:
  • 20° ± 1°
• Lateral Tilt (Left/Right):
  • 20° ± 1°
• Lower Back Motion:
  • Up: 75° ± 1°; Down: 15° ± 1°
• Upper Back Motion:
  • Up: 40° ± 1°; Down: 55° ± 1°
• Head Motion (Manual):
  • Up: 33° ± 1°; Down: 87° ± 1°
• Leg Motion (Manual):
  • Up: 0°; Down: 90° ± 1°; (Swivel 90° toward outside)

Power Specifications

• Input Options:
  • 100-132 VAC, One-Phase, 50/60 Hz, 5.0 A
  • 180-264 VAC, One-Phase, 50/60 Hz, 3.0 A

Environmental Specifications

• Operating Temperature:
  • 32 to 122°F (0 to 50°C)
• Relative Humidity:
  • 20 to 80% RH
