Steris Reliance Synergy

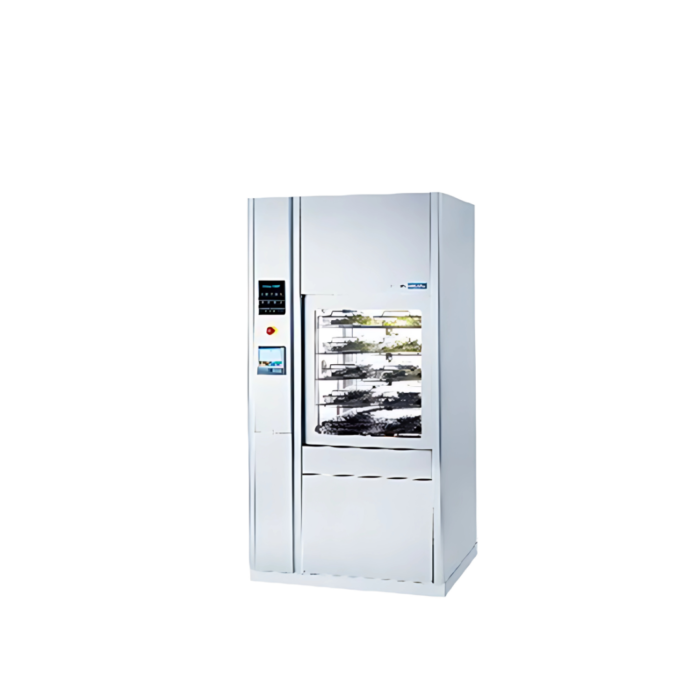

Steris Reliance Synergy Washer/Disinfector

The Steris Reliance Synergy Washer/Disinfector is a high-performance, single-chamber double-door washer designed to meet EN/ISO 15883 compliance standards for efficient and thorough cleaning of medical instruments. Equipped with an Eagle 3000 Stage 3 control system, this washer/disinfector offers nine adjustable pre-programmed cycles, plus an additional customizable cycle to suit specific operational requirements.

Key Points

• High-Capacity & Efficient Performance:

  • Processes up to 10 DIN trays per cycle, making it ideal for high-volume sterile processing departments.
  • 96% rack-to-chamber ratio ensures optimal space utilization within the chamber.

• Customizable & Versatile Cleaning Cycles:

  • Features Pre-Wash, Enzyme, Wash, Rinse, and Thermal Rinse phases for thorough cleaning.
  • Adjustable cycle durations provide flexibility for different instrument types and contamination levels.
  • Supports up to 5 chemical injection pumps:
    • Enzyme pump for pre-cleaning
    • Detergent pump for washing
    • Lubricant pump for the Thermal Rinse phase
    • Two additional optional injection pumps for increased customization

• Advanced Heating & Drying Options:

  • Available in steam or electric heating configurations.
  • Powerful drying cycle (0-30 minutes) ensures efficient and complete drying of instruments.

• Reliable & Intuitive Control System:

  • Features a microprocessor-controlled interface for precise cycle management.
  • Dual-speed pump intensity (7.5 HP & 2 HP) for efficient water flow.

Specifications

Exterior & Chamber Dimensions:

• Exterior Dimensions: 42″ W x 80″ H x 36.5″ D (1067 x 2032 x 927 mm)
• Interior Chamber Dimensions: 26.5″ W x 26.25″ H x 26″ D (673 x 667 x 660 mm)
• Load Height: 31″ (787 mm) above the finished floor
• Weight: 544.3 kg (1,200.2 lbs)

Cycle Durations:

• Cold Pre-Wash: 0-15 minutes
• Detergent Wash: 0-15 minutes
• Rinse: 0-15 minutes
• Rinse/Lubricate: 0-10 minutes
• Drying Cycle: 0-30 minutes
• DW Rinse: 0-10 minutes

Pump Performance:

• Dual-Speed Pump Intensity: 7.5 HP & 2 HP
• Max Flow Rate:
  • 340.7 gal/min (90 signals)
  • 916 gal/min (242 signals)

Heating & Power Requirements:

• Heat Source Options: Steam or Electric
• Controller: Microprocessor
