Steris V-PRO maX 2

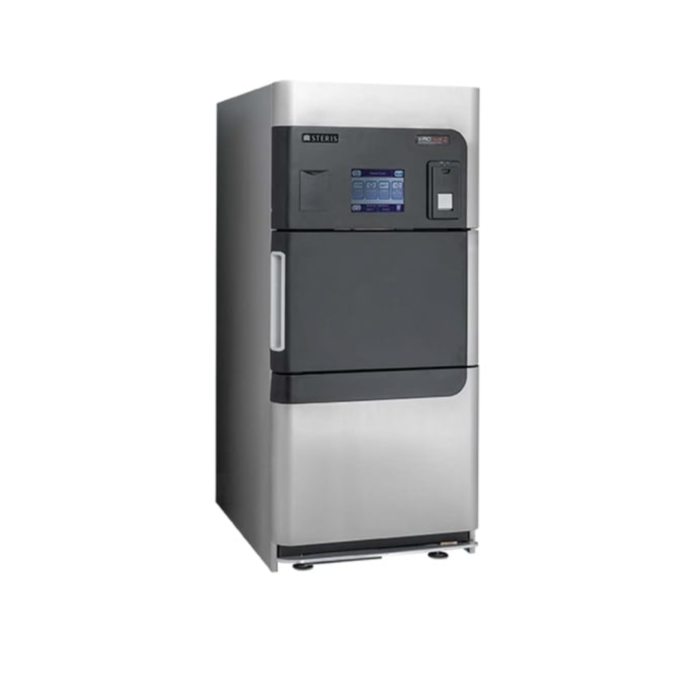

Steris V-PRO maX 2 Low-Temperature Sterilizer

The Steris V-PRO maX 2 is a high-capacity, low-temperature sterilization system designed for efficient reprocessing of heat- and moisture-sensitive medical devices. Utilizing Vaporized Hydrogen Peroxide (VHP) technology, this sterilizer ensures effective sterilization with minimal cycle times, eco-friendly operation, and enhanced safety features. With five pre-programmed cycles, a 10.4-inch touchscreen interface, and hands-free door operation, the V-PRO maX 2 improves workflow efficiency in sterile processing departments.

Key Points

• Five Versatile Sterilization Cycles

  • Non-Lumen Cycle (28 min): For non-lumened instruments and materials.
  • Fast Non-Lumen Cycle (16 min): For rapid sterilization of compatible non-lumened instruments.
  • Flexible Cycle (35 min): Specifically designed for single or dual-channel surgical flexible endoscopes.
  • Lumen Cycle (52 min): For devices with narrow lumens requiring deeper sterilization.
  • Specialty Cycles (8-21 hours): For complex instruments and 3D-printed surgical guides.

• Vaporized Hydrogen Peroxide (VHP) Sterilization

  • Uses VAPROX HC Sterilant, producing only water vapor and oxygen as byproducts.
  • No toxic residues, ensuring safe and eco-friendly operation.

• Advanced User Interface & Automation

  • 10.4-inch color touchscreen for easy cycle selection and monitoring.
  • Foot pedal-operated door for hands-free loading/unloading.
  • Automatic door-locking mechanism to prevent cycle interruptions.

• Seamless Connectivity & Integration

  • Compatible with ConnectAssure Technology, enabling cycle data export and integration with tracking systems.

• Eco-Friendly & Energy-Efficient

  • Integrated catalytic converter eliminates harmful emissions.
  • Minimal heat loss (avg. 1400 BTU/hr), reducing energy consumption.

Specifications

Configurations & Dimensions:

• Available Configurations:
  • Cabinet Single Door
  • Recessed Single Door
  • Cabinet Double Door
• Height: 72 in (182.9 cm)
• Width: 33 in (83.8 cm)
• Depth:
  • Double door: 40.94 in (104 cm)
  • Recessed / Cabinet single door: 38.32 in (97.3 cm)
• Weight:
  • Cabinet Single Door: 780 lb (354 kg)
  • Recessed Single Door: 920 lb (417 kg)
  • Cabinet Double Door: 910 lb (413 kg)

Chamber Specifications:

• Height: 32.5 in (82.6 cm)
• Width: 17 in (43.2 cm)
• Depth: 15 in (38.1 cm)
• Volume: 4.8 cubic feet (136 L)
• Shelf Clearance:
  • Top Shelf: 6.93 in (17.6 cm)
  • Bottom Shelf: 7.06 in (17.9 cm)

Sterilization Cycles:

Each cycle consists of three phases: Condition, Sterilize, and Aeration.

• Non-Lumen Cycle: ~28 minutes
• Fast Non-Lumen Cycle: ~16 minutes
• Flexible Cycle: ~35 minutes
• Lumen Cycle: ~52 minutes
• Specialty Cycle: (D: 8 hours, E: 16 hours 30 min, F: 21 hours)

Electrical Requirements:

• Electricity:
  • 200-230 Vac, 3-phase, 50/60 Hz, 16 Amp
  • 380-415 Vac, 3-phase, 50/60 Hz, 10 Amp
• Heat Loss:
  • Peak = 1500 BTU/hr
  • Average = 1400 BTU/hr
• Electrical Consumption:
  • Per Cycle: 2.3 kW-hr (avg)
  • Out of Cycle: 0.7 kW-hr (avg)
